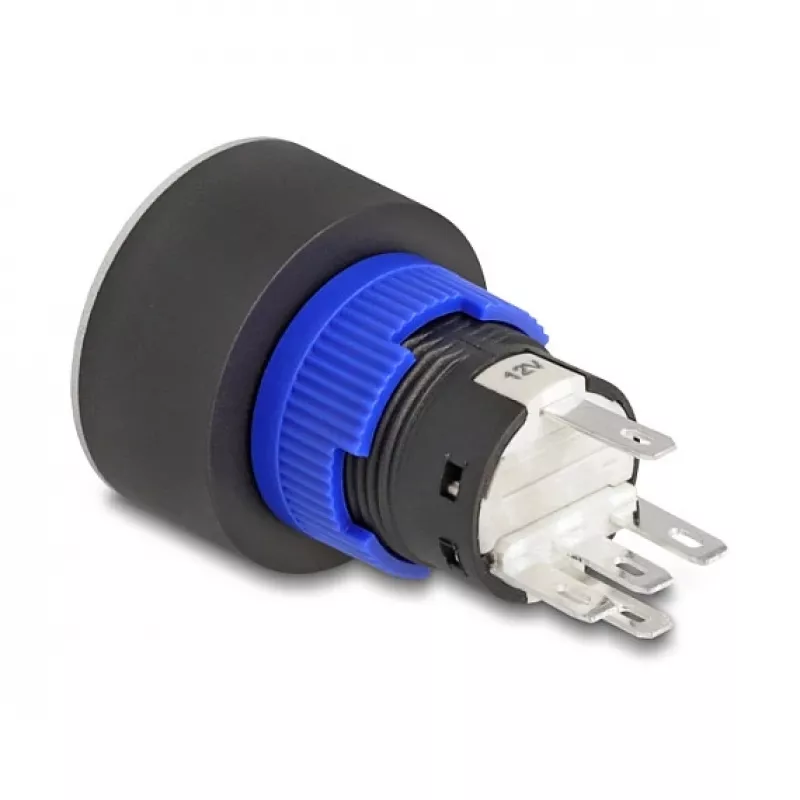

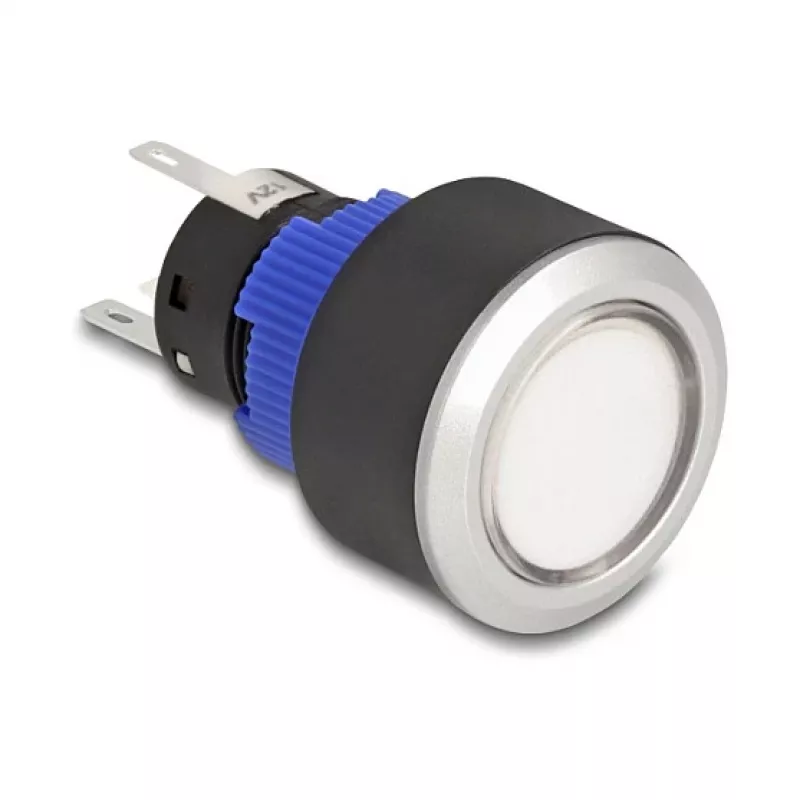

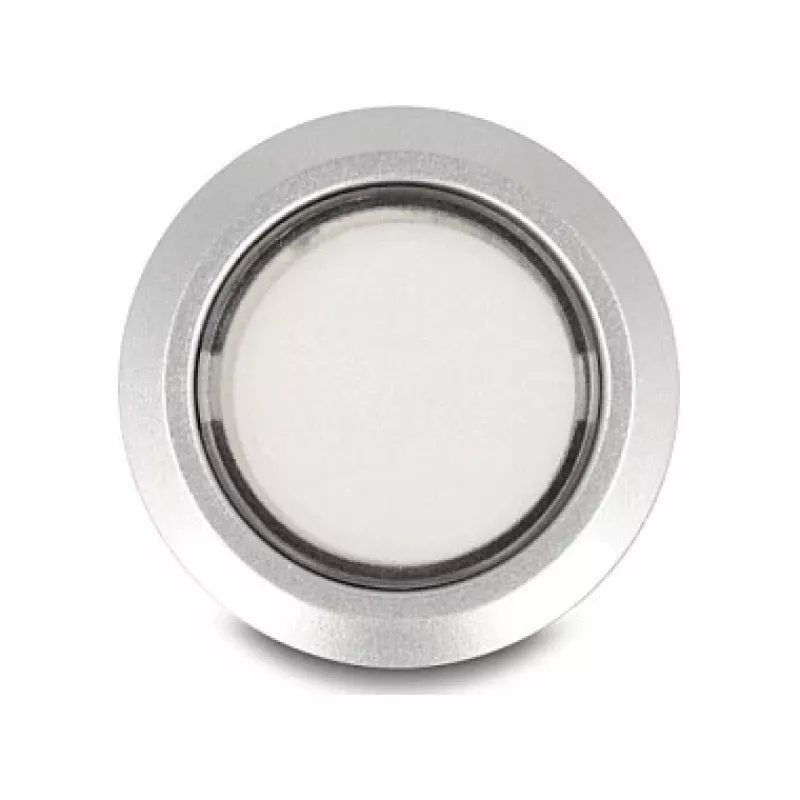

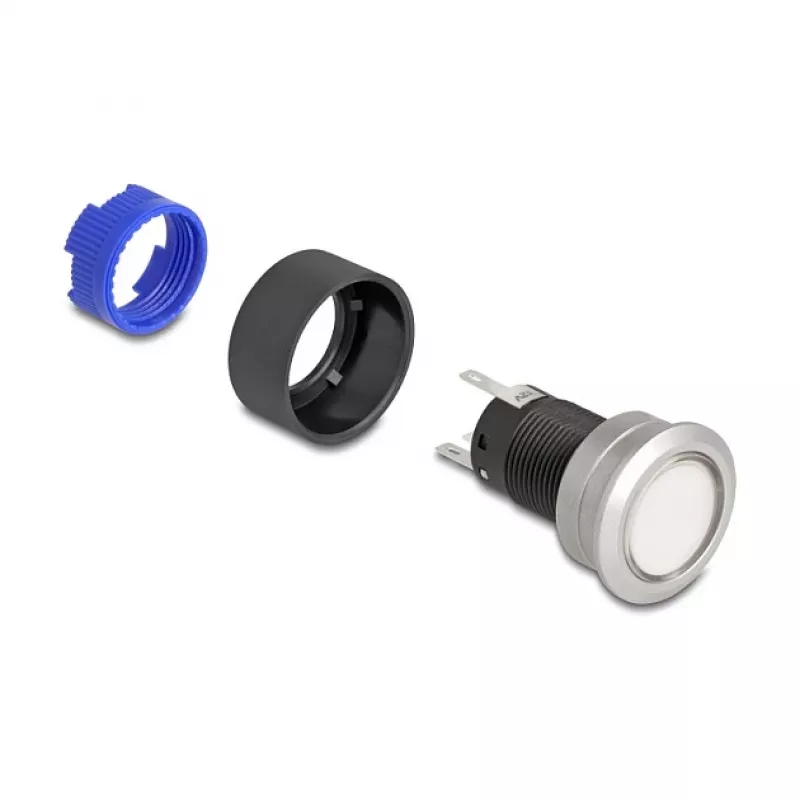

Delock Interruptor de botón pulsador 22 mm plano plástico blanco LED

The Delock Push Button Switch is a high-quality momentary switch designed for flush mounting in 22 mm diameter panel cutouts. Featuring a flat white plastic actuator with integrated white LED illumination, this switch is ideal for control panels, industrial automation, and signaling applications. With 5 solder terminals supporting both normally open (NO) and normally closed (NC) contacts, it offers flexible wiring options. The LED operates at 12-24V DC, providing clear visual feedback. Rated IP65, the switch is protected against dust and water jets, ensuring reliable performance in demanding environments.

Advantages

Robust plastic construction with IP65 protection ensures durability in industrial settings. The flat actuator design prevents accidental activation, while the integrated white LED offers clear status indication. Momentary operation with high electrical and mechanical life cycles guarantees long-term reliability.

Suitable for

• Industrial control panels
• Machine control stations
• Signaling and alarm systems
• Automation equipment

Key specifications

• Mounting diameter: 22 mm
• Actuator type: Flat, white plastic
• Illumination: White LED, 12-24V DC
• Contact configuration: 1x NO, 1x NC
• Terminals: 5 x solder
• Max switching voltage: 250V AC / 30V DC
• Max switching current: 3 A
• Protection rating: IP65
• Electrical life: 100,000 cycles
• Mechanical life: 500,000 cycles
• Operating temperature: -25°C to +55°C

Recommendations

For optimal performance, use with appropriate panel cutout and ensure proper sealing. Suitable for low-voltage DC and AC applications.
