Delock Manguera neumática 8 x 5 mm DE x DI 50 m rollo Azul PU

With a 10 bar operating pressure and a 25 mm bend radius, this polyurethane hose from Delock is built for performance in compact pneumatic systems. The 8 x 5 mm dimensions (outer x inner diameter) deliver a sturdy yet flexible line for compressed air and inert gas applications.

Overview

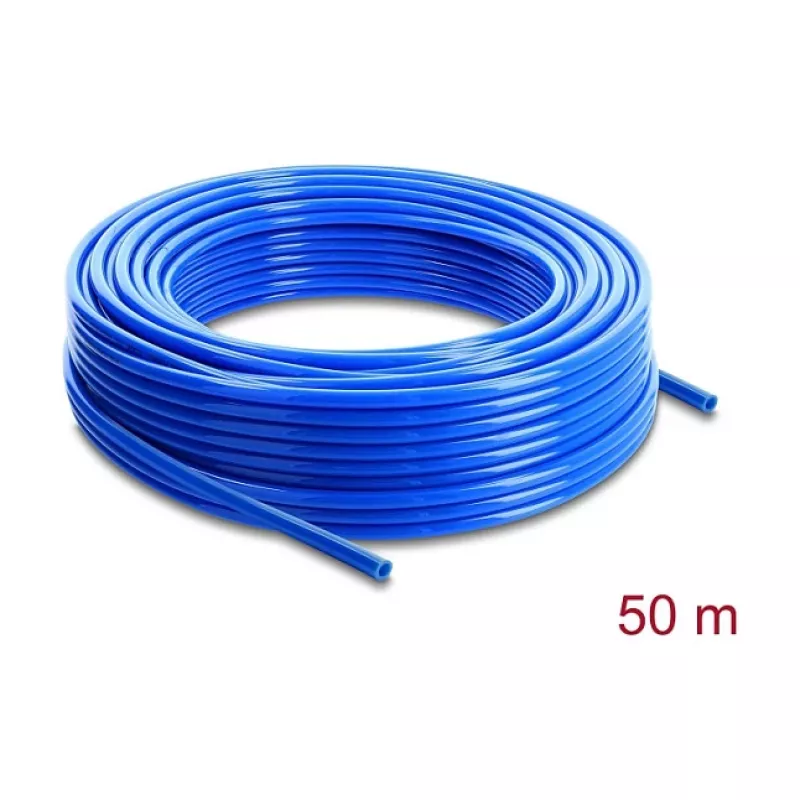

This 50-meter roll offers a continuous length of blue PU tubing, ideal for automation, robotics, and general industrial use. The material provides excellent abrasion and oil resistance, ensuring longevity in demanding environments. The hose withstands temperatures from -20 °C to 60 °C and is RoHS compliant.

What stands out

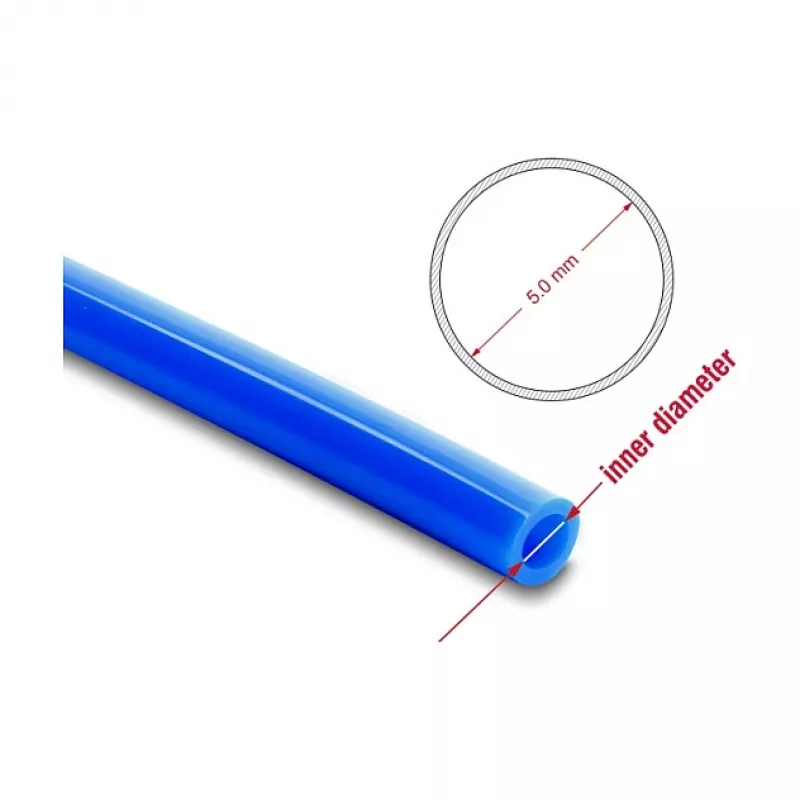

• Precise 8 mm outer and 5 mm inner diameter
• Rated to 10 bar at 20 °C, burst pressure 30 bar
• Shore hardness 95 A for robustness
• Minimum bend radius 25 mm for tight routing
• Resistant to abrasion, oil, and many chemicals

Technical details

• Material: Polyurethane (PU)
• Length: 50 m
• Outer diameter: 8 mm
• Inner diameter: 5 mm
• Wall thickness: 1.5 mm
• Max operating pressure: 10 bar (145 psi)
• Burst pressure: 30 bar (435 psi)
• Temperature range: -20°C to +60°C
• Shore hardness: 95 A
• Minimum bend radius: 25 mm
• Fluid compatibility: compressed air, inert gases
• Resistance: abrasion, oil, chemical
• Compliance: RoHS
• Packaging: Roll

Our verdict

This hose delivers reliable performance for pneumatic circuits where space is tight and durability is essential. Its combination of high working pressure, flexibility, and chemical resistance makes it a solid choice for both workshop and industrial applications.
