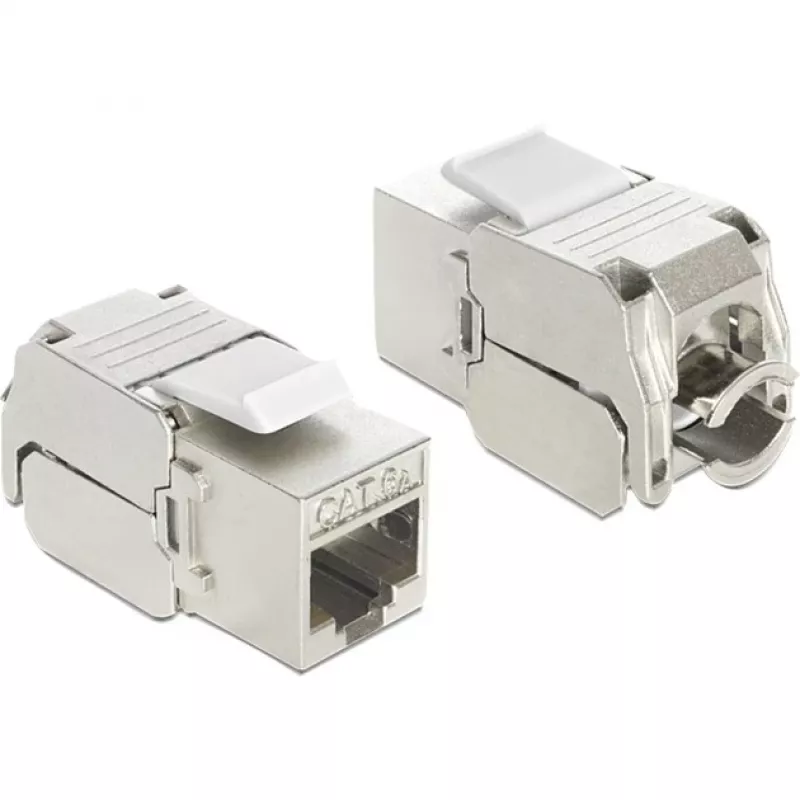

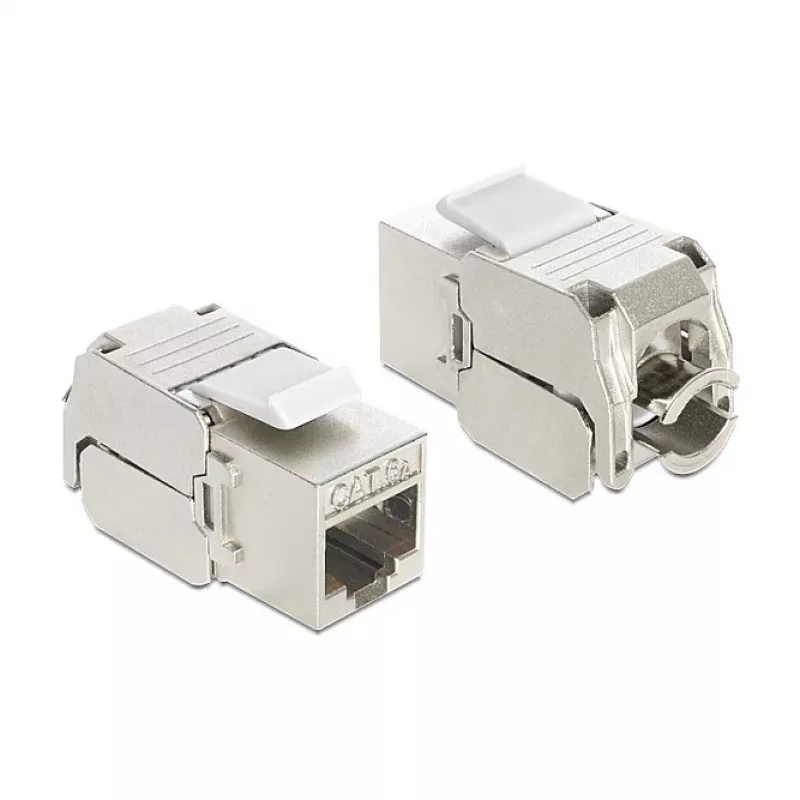

Delock Módulo Keystone RJ45 conector hembra a LSA Cat.6A STP

Network installations often struggle with bulky, unreliable terminations that degrade performance in high-speed environments. The Delock Keystone Module RJ45 Female to LSA Cat.6A STP solves this by providing a compact, shielded snap-in module that terminates solid or stranded network cables quickly and tool-free, ensuring consistent 10 Gigabit Ethernet performance.

Who is it for

This module is ideal for network technicians, system integrators, and IT professionals who build or maintain structured cabling systems in offices, data centres, or industrial settings. It is also suitable for advanced DIY users who demand professional-grade connectivity in wall plates, patch panels, or surface-mount boxes.

Main features

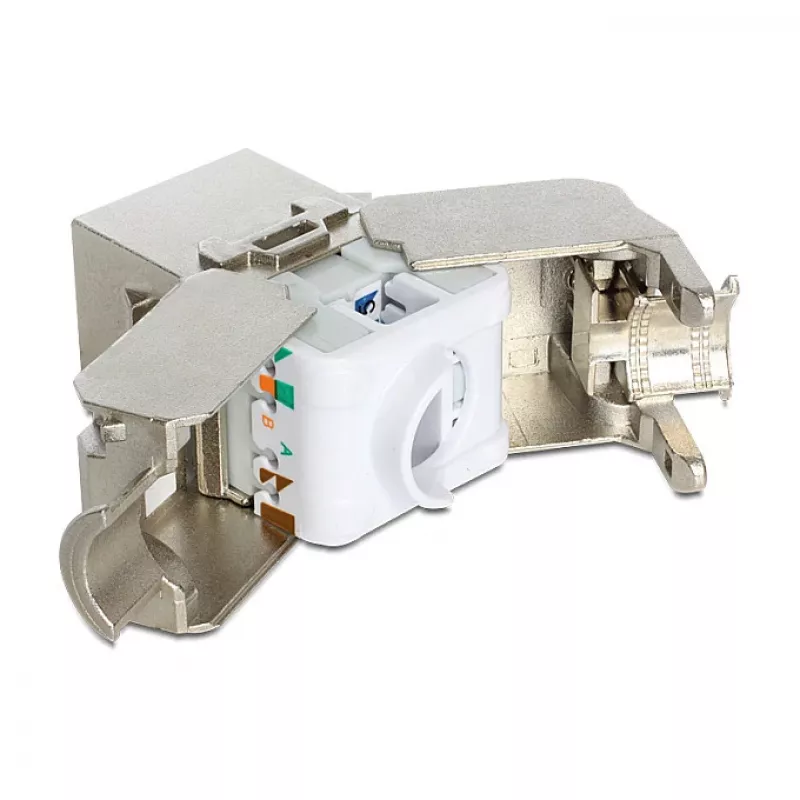

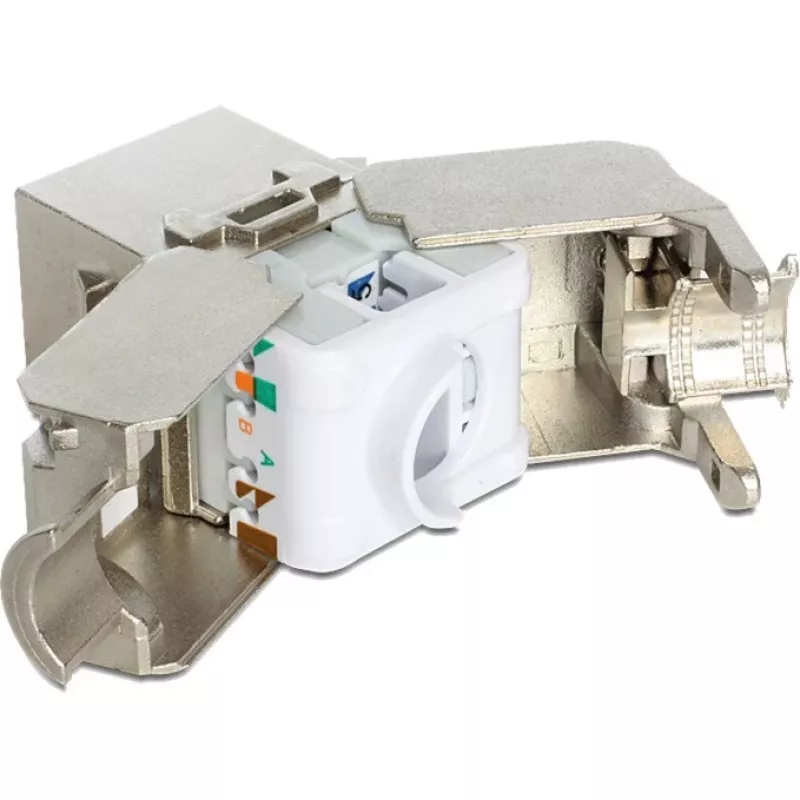

• RJ45 female jack on the front, LSA (IDC) termination on the rear
• Supports Cat.6A performance up to 500 MHz and 10 Gigabit Ethernet
• Shielded (STP) design with zinc die-cast housing for EMI protection
• Tool-free LSA termination for quick and reliable installation
• Compatible with AWG 26–22 solid and stranded conductors
• Standard keystone dimensions 19.2 x 14.9 mm for universal fit
• Gold-plated contacts (50µ") ensure low contact resistance and corrosion resistance
• Supports PoE, PoE+, and 4PPoE (PoE++) for power delivery

Specifications

• Connector type (front): RJ45 female
• Termination type (rear): LSA (insulation displacement connector)
• Network category: Cat.6A
• Shielding: Shielded (STP/FTP)
• Transmission speed: Up to 10 Gigabit Ethernet
• Transmission frequency: Up to 500 MHz
• Wiring standard: TIA-568A/B (colour coded)
• Termination method: Tool-free LSA
• Compatible cable gauge: AWG 26–22 (solid and stranded)
• Keystone standard dimensions: 19.2 x 14.9 mm
• Housing material: Zinc die-cast
• Contact plating: Gold-plated (50µ")
• PoE support: PoE, PoE+, 4PPoE (PoE++)
• Operating temperature: -10 °C to 60 °C
• Compliance standards: ISO/IEC 11801 Class EA, EN 50173-1
• Installation type: Snap-in

Tips

For best results, use shielded Cat.6A cable and ensure proper grounding of the shielded system. The module fits standard keystone openings with dimensions 19.2 x 14.9 mm, making it compatible with most patch panels, wall plates, and surface boxes.
