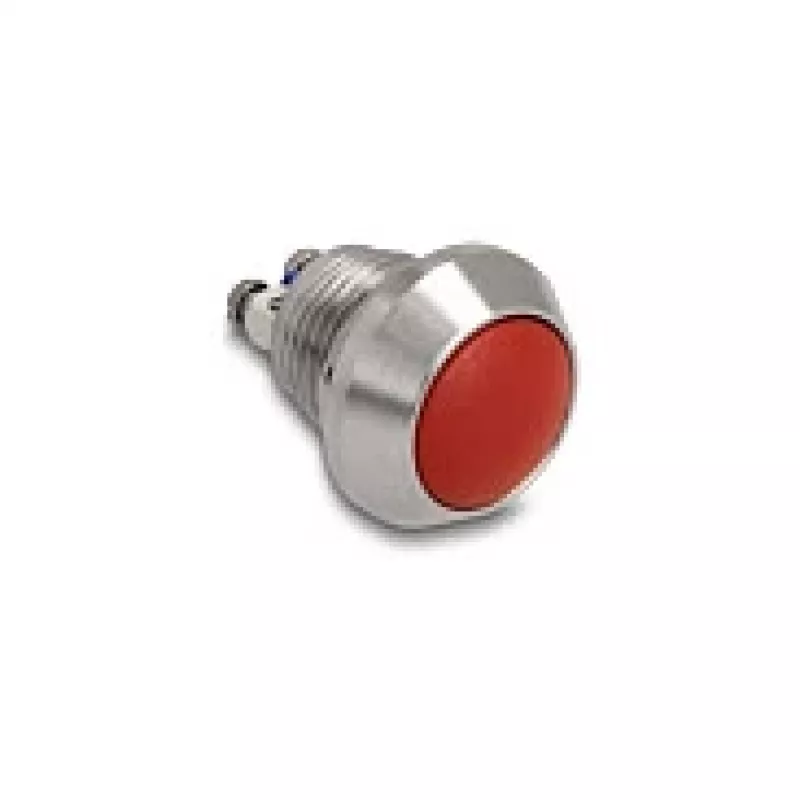

Delock Pulsador para montaje en panel 12 mm 2 x conexión por tornillo Rojo

The Delock Push Button 22033 is a robust momentary switch designed for panel mounting. With a 12 mm mounting hole diameter and red actuator, it is ideal for control panels, industrial equipment, and DIY projects. The screw terminals ensure secure and easy wiring.

Advantages

Reliable momentary operation with high durability. Easy installation with screw terminals. Compact design fits standard 12 mm panel cutouts.

Suitable for

• Control panels
• Industrial automation
• Signal and indicator circuits
• DIY electronics projects

Key specifications

• Switch Type: Push Button, Momentary
• Actuator Color: Red
• Mounting Hole Diameter: 12 mm
• Contact Configuration: 1 Normally Open (NO)
• Number of Terminals: 2
• Terminal Type: Screw Terminal
• Rated Voltage (AC): 250 V
• Rated Current: 1 A
• Panel Thickness (Max): 5 mm
• Actuator Style: Round
• Mounting Type: Panel Mount
• Body Material: Plastic / Metal
• Electrical Life: 10,000 cycles
• Operating Temperature: -25°C to +70°C
• Dielectric Strength: 1500V AC (1 min)
• Insulation Resistance: >100 MΩ
• Contact Resistance: <50 mΩ
• RoHS Compliance: Yes

Recommendations

For reliable switching in control and signal applications, this Delock push button offers a cost-effective solution with easy installation.
