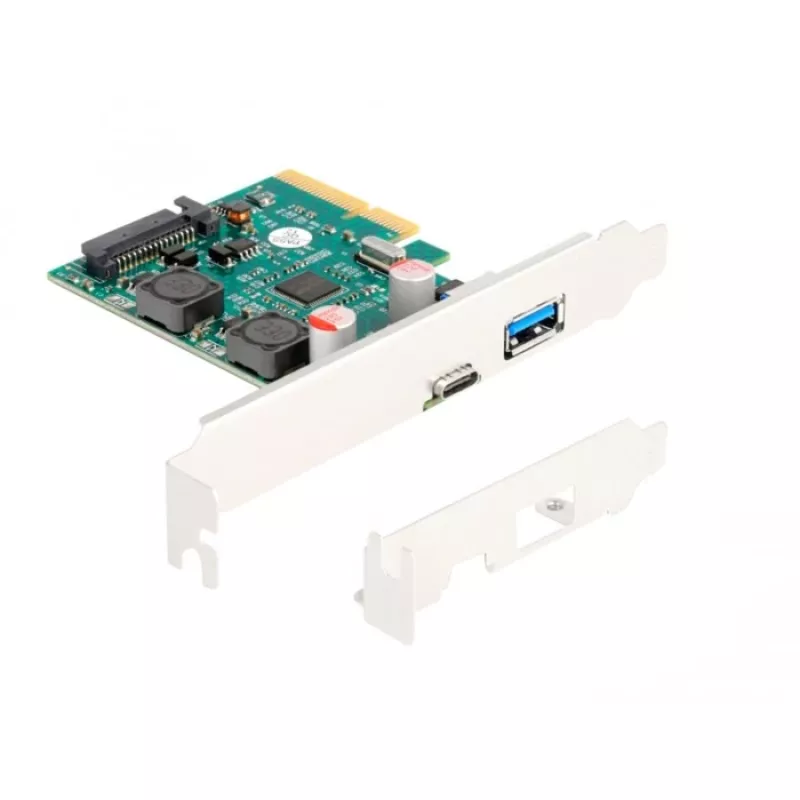

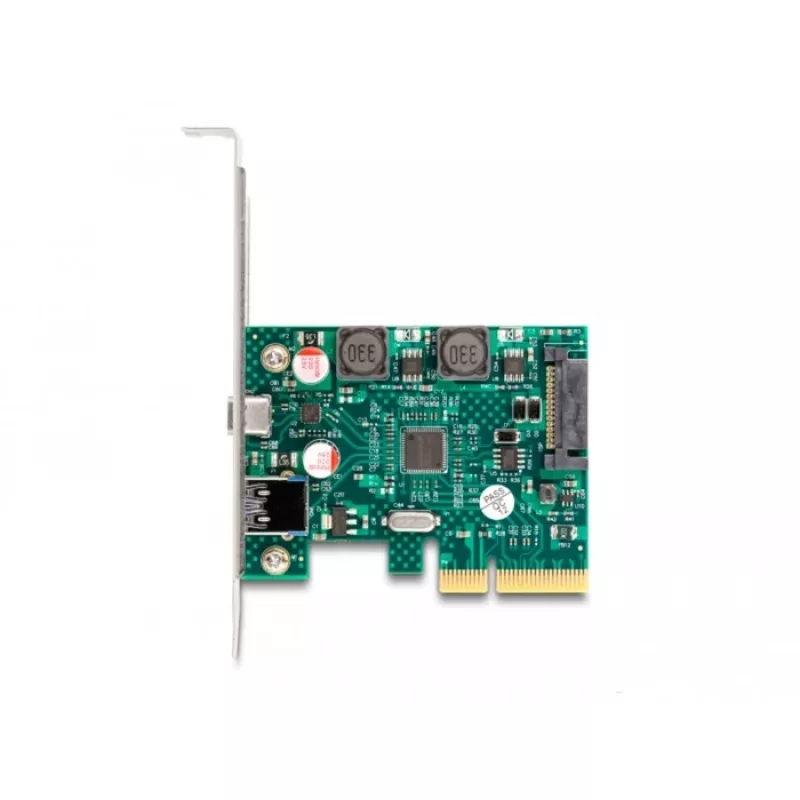

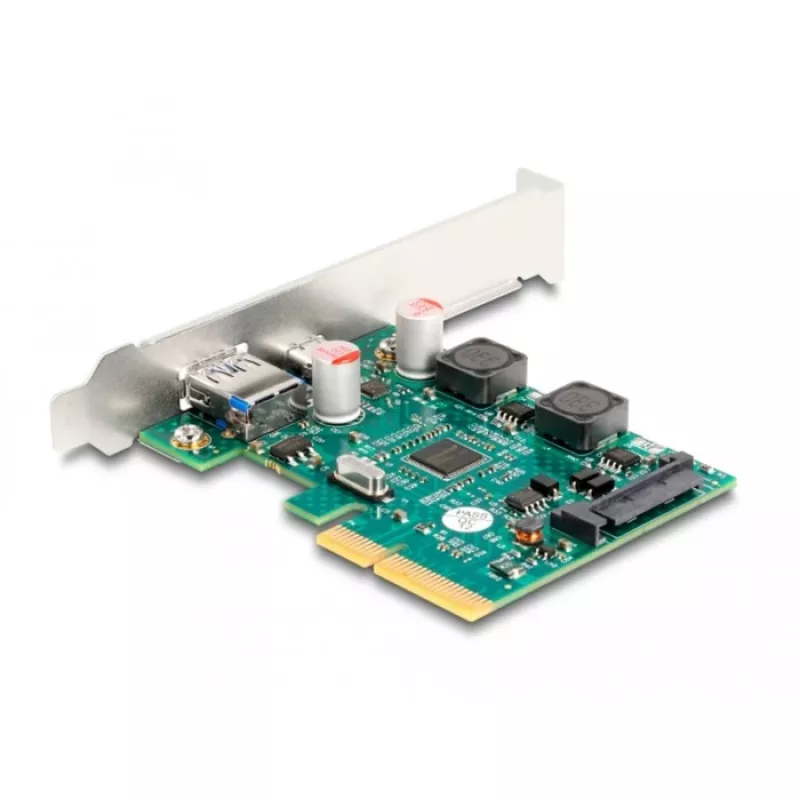

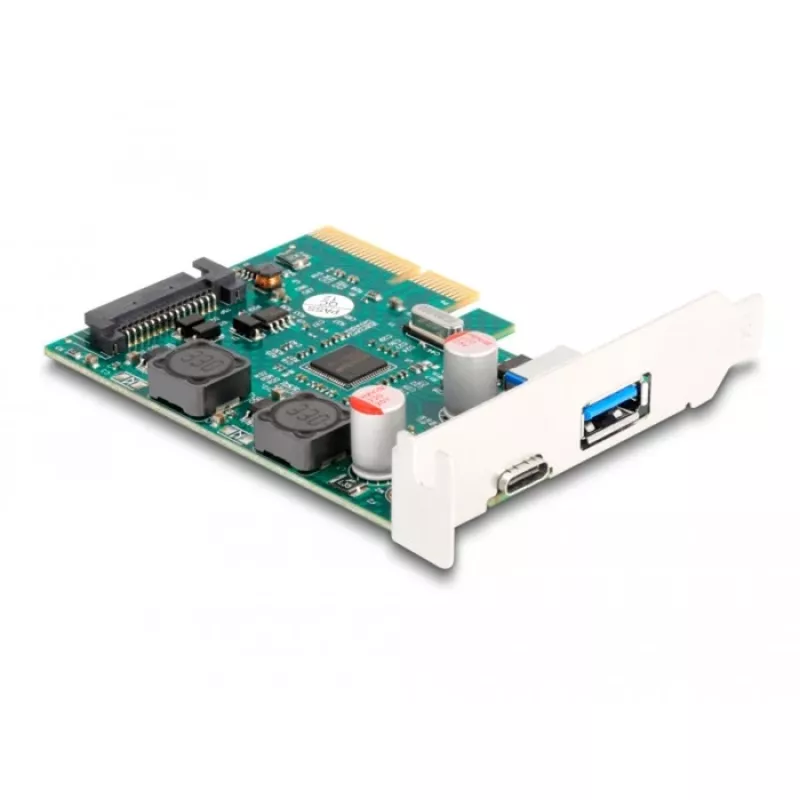

DeLOCK Tarjeta PCI Express x4 1 x USB Type-C 1 x USB Type-A 10 Gbit/s

This PCI Express card by DeLOCK adds two external USB 10 Gbps ports to a desktop PC: one USB Type-C and one USB Type-A. It uses a PCIe x4 host interface and the Asmedia ASM3142 chipset to enable high-speed data transfer for connected devices such as docking stations, card readers and external enclosures. The card is intended for installation in low-profile systems and provides simultaneous 10 Gbps throughput on both ports when supported by the host and connected devices.

Advantages

The card provides two external USB 3.2 Gen 2 (10 Gbps) ports in a compact PCIe x4 form factor, supporting both Type-C and Type-A connectors. Powered by the Asmedia ASM3142 chipset, it supports simultaneous high-speed transfers on both ports. Designed for low-profile PC expansion, it is compatible with a wide range of USB peripherals and reduces the need for external hubs or adapters.

Suitable for

• Connecting docking stations
• High-speed external storage (SSD/HDD enclosures)
• Card readers and media transfer
• Peripherals requiring USB 3.2 Gen 2 bandwidth

Key specifications

• Brand: DELOCK
• Model / MPN: 90107
• Interfaces: 1 x USB Type-C, 1 x USB Type-A (USB 3.2 Gen 2 / 10 Gbps)
• Host interface: PCIe (x4)
• Chipset: Asmedia ASM3142
• Form factor: Low-profile compatible PCI Express card
• Product colour: Green, Grey
• EAN: 4043619901074

How to use

Install the card into an available PCIe x4 (or larger) slot on the motherboard. Secure the card with the bracket screws and, if required, connect any internal power cable according to the system documentation. After booting the system, install any necessary drivers provided by the operating system or manufacturer. Connect USB devices to the Type-C or Type-A external ports; the card supports 10 Gbps transfer rates when both the host controller and the connected devices support USB 3.2 Gen 2.

Recommendations

For optimal performance, use USB 3.2 Gen 2 compatible cables and devices, ensure the PCIe slot provides sufficient lanes (x4 or higher), and install the latest drivers. Verify that the system BIOS and operating system support the Asmedia ASM3142 chipset for full throughput on both ports.
