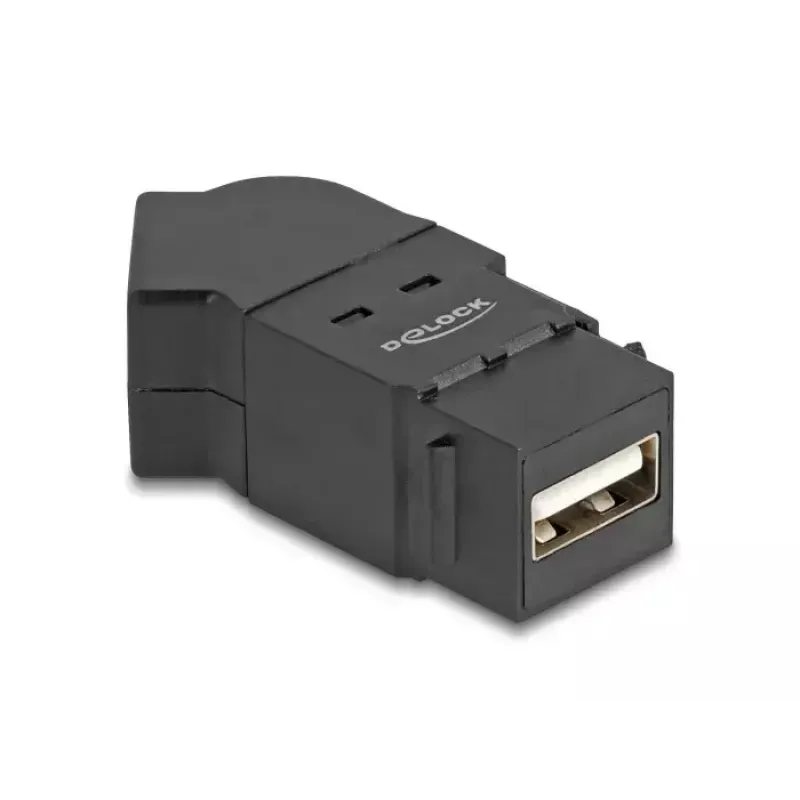

DeLOCK USB 2.0 conector hembra empotrable Type-A a conector hembra Type-A 45° en ángulo negro

The DeLOCK USB 2.0 Type-A panel mount female to Type-A female 45° angled in black is a compact adapter designed to extend USB-A connections and enable a mounted USB port. Its angled female-to-female connection allows installation where space is limited and where straight connectors would not fit. The housing includes a mounting holder for securing the adapter on panels, in housings or inside switch cabinets.

Advantages

The 45° angled Type-A to Type-A female connection provides space-saving routing in confined areas. The integrated mounting holder permits fixed installation on panels or in equipment enclosures. The black finish and compact dimensions (40 mm width, 47 mm depth, 24 mm height) suit a variety of installation environments while maintaining USB 2.0 compatibility.

Suitable for

• Extending USB-A connections in equipment racks and cabinets
• Panel mounting a USB-A port on devices or enclosures
• Routing USB connections in tight spaces or cable ducts

Key specifications

• Brand: DELOCK
• Model / MPN: 67150
• EAN: 4043619671502
• Connector 1: USB-A (female)
• Connector 2: USB-A (female)
• Orientation: 45° angled
• Colour: Black
• Dimensions: 40 mm (W) × 47 mm (D) × 24 mm (H)
• USB standard: USB 2.0

How to use

Install the adapter by securing the mounting holder to a panel, housing or switch cabinet using appropriate screws or fasteners. Plug a USB-A cable or device into each female Type-A port to extend or reroute the USB connection. Ensure the adapter is positioned so the 45° orientation aligns with the available space and cable routing.

Recommendations

Use with USB 2.0 compatible cables and devices. Do not force incompatible or damaged plugs into the female sockets. For panel installation, choose screws and installation methods suitable for the panel material and thickness to ensure a secure fit.
