DeLOCK USB Type-C Docking Station delgada 4K HDMI USB 3.2 Gen 1 LAN SD PD 3.0

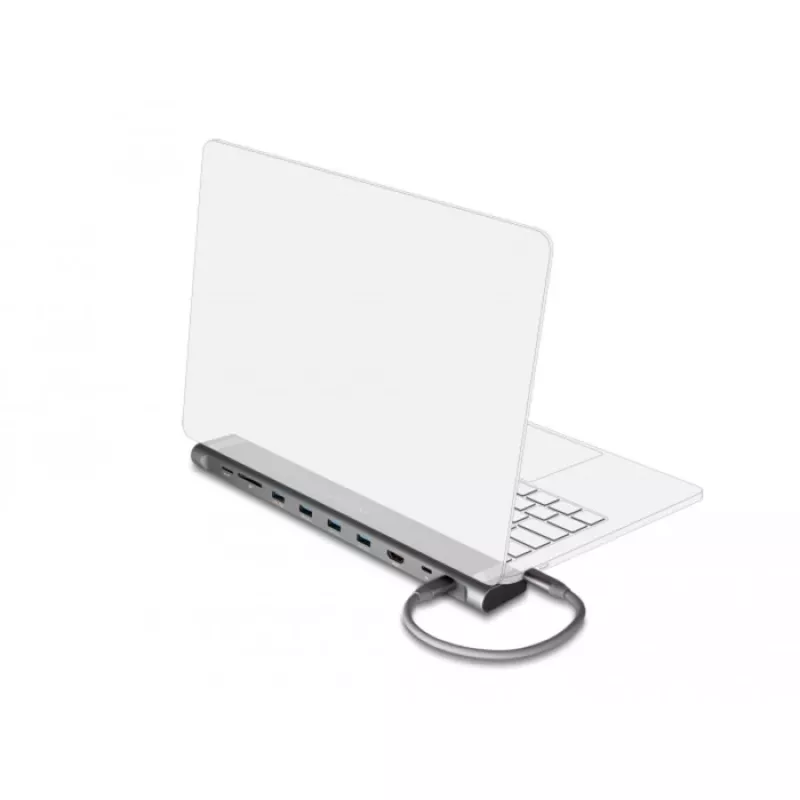

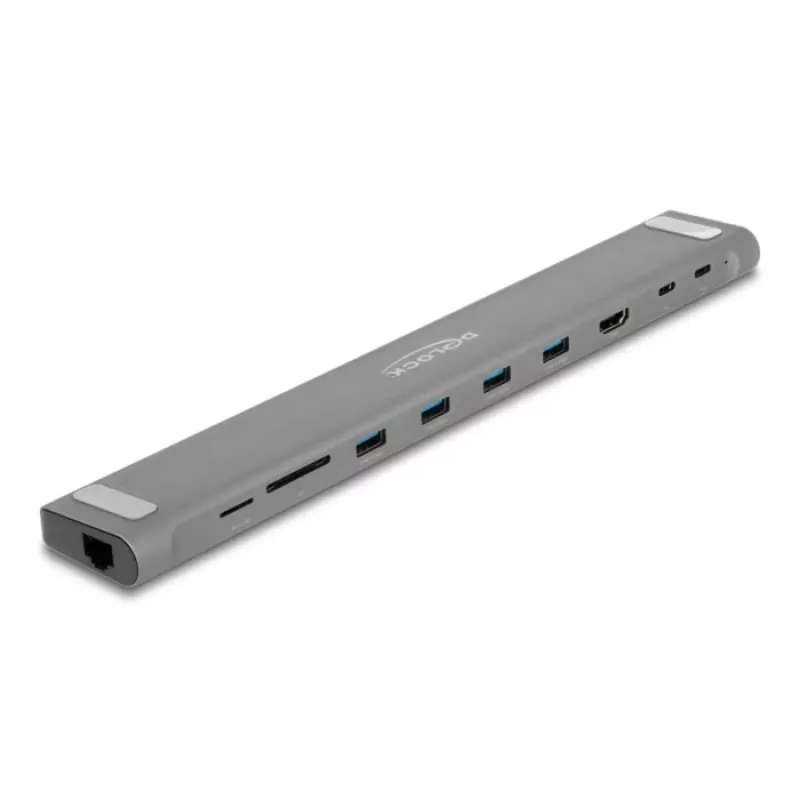

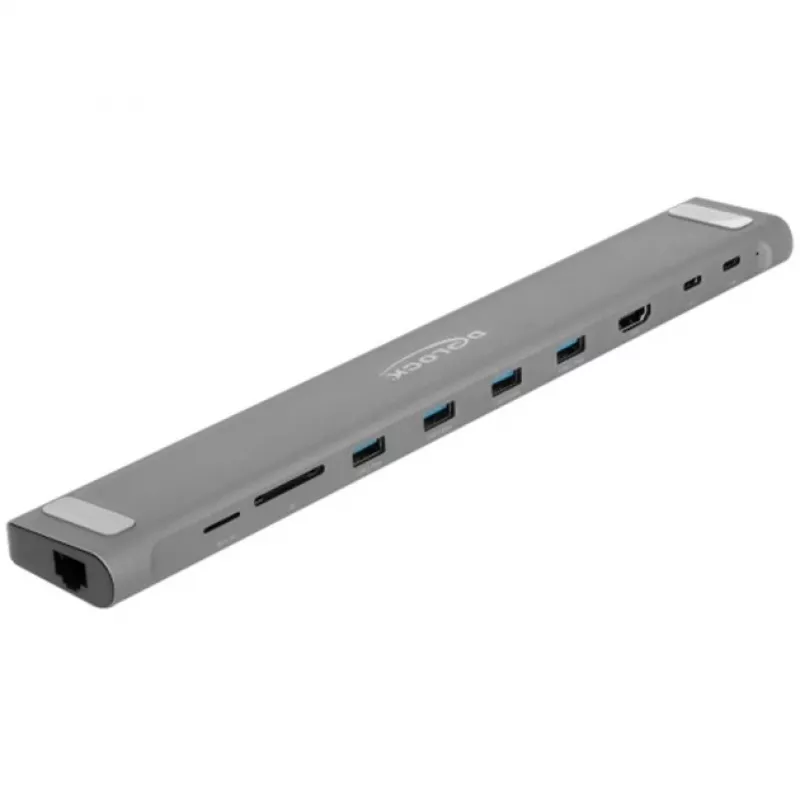

The DeLOCK USB Type-C Slim Docking Station connects to a computer via a USB-C™ DP Alt Mode or Thunderbolt™ 3 port to expand connectivity. It provides one HDMI output capable of driving a 4K monitor, four USB 3.2 Gen 1 Type-A ports for peripherals, SD and Micro SD card slots, and a Gigabit Ethernet (RJ-45) port. The dock includes a USB-C Power Delivery (PD 3.0) port that can charge a connected laptop or tablet with up to 85 W while the host device is in use. Its elongated metal housing is designed to be placed under a laptop to improve viewing angle and cooling.

Advantages

The docking station offers a compact slim design with a metal case for durable use and improved heat dissipation. It consolidates multiple interfaces — HDMI 4K output, USB 3.2 Gen 1 ports, SD/Micro SD card readers and Gigabit LAN — into a single device, reducing cable clutter. The integrated USB Power Delivery (PD 3.0) port supplies up to 85 W to power or charge compatible laptops and tablets during operation. Its shape makes it suitable for placement under laptops to raise the display angle and promote better airflow.

Suitable for

• Connecting an external 4K monitor via HDMI
• Adding USB peripherals such as keyboard, mouse, or external drives
• Accessing SD and Micro SD memory cards for file transfer
• Providing wired Gigabit network access to laptops or tablets
• Charging a laptop or tablet that supports USB-C Power Delivery up to 85 W

Key specifications

• Host interface: USB-C (DP Alt Mode) or Thunderbolt 3
• Video output: 1 × HDMI (4K capable)
• USB ports: 4 × USB 3.2 Gen 1 (Type-A)
• Card readers: SD and Micro SD slots
• Network: 1 × Gigabit Ethernet (RJ-45)
• Power Delivery: USB PD 3.0 up to 85 W (via USB-C PD port)
• Colour: Black, Grey

How to use

Connect the docking station to a compatible computer using the USB-C port that supports DP Alt Mode or a Thunderbolt 3 port on the host device. Attach an HDMI cable from the dock to an external monitor and configure the display settings on your computer as needed. Plug USB devices into the Type-A ports and insert SD or Micro SD cards into the respective slots for file access. Connect a network cable to the RJ-45 port for wired internet access. To charge the laptop while using the dock, connect the laptop’s power adapter to the dock’s USB-C Power Delivery port; the dock will deliver up to 85 W to the host if supported.

Recommendations

Use a host device that supports USB-C DP Alt Mode or Thunderbolt 3 for full video and data functionality. For stable charging and device performance, use a compatible USB-C power adapter that meets the laptop manufacturer’s power requirements and supports PD. Place the dock under the laptop as intended on a flat surface to improve screen tilt and cooling; ensure ventilation clearance around the device.
