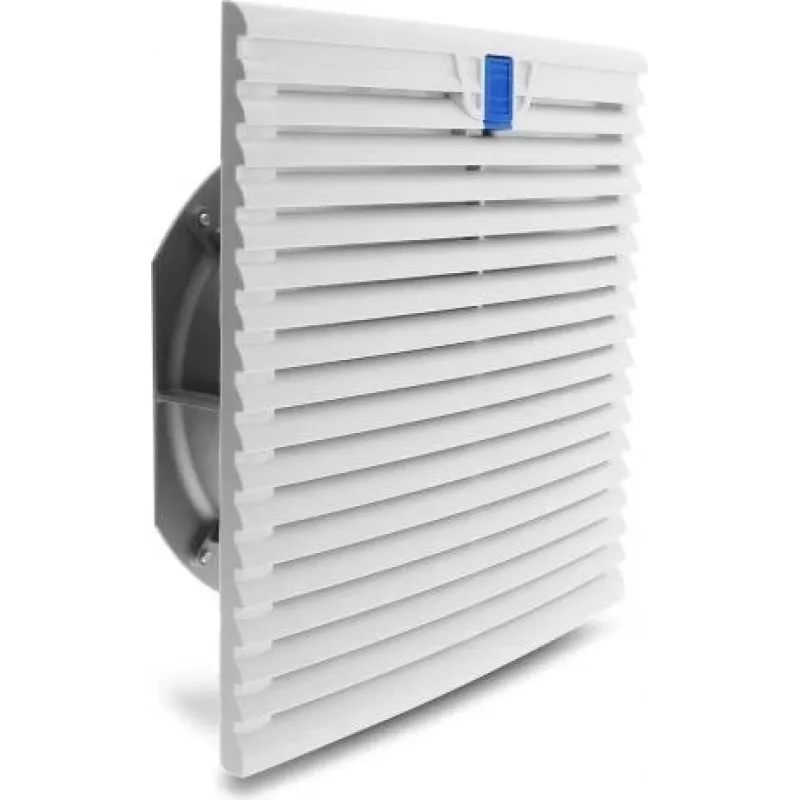

Delock ventilador axial 230 V AC con filtro 323 x 323 x 127 mm

When standard cabinet fans struggle with dust-laden air or need frequent cleaning, this Delock axial fan steps in with an integrated filter mat and protective grille. It moves up to 1100 m³/h while keeping contaminants away from sensitive electronics, making it a dependable choice for industrial enclosures, network racks, and control cabinets.

Highlights

• Large 323 x 323 mm frame with die-cast aluminium housing for durability
• Integrated synthetic fiber filter mat captures dust and particles, extending equipment life
• IP54 protection against dust and splashing water
• Ball bearing design for long service life up to 50,000 hours
• Terminal connection for simple, secure wiring

In daily use

Powered directly from 230 V AC mains, this fan requires no external transformer or controller. The included filter is easy to access and replace, reducing maintenance downtime. With a noise level of 60–62 dB(A) depending on frequency, it suits environments where acoustic comfort is secondary to reliable airflow. The fan operates efficiently across a wide temperature range from -10 °C to 70 °C, ensuring stable performance even in harsh conditions.

Full specifications

• Type: Axial fan
• Operating voltage: 230 V AC
• Frequency: 50 / 60 Hz
• Airflow: 1000 m³/h (50 Hz), 1100 m³/h (60 Hz)
• Noise level: 60 dB(A) at 50 Hz, 62 dB(A) at 60 Hz
• Power consumption: 40 W (50 Hz), 38 W (60 Hz)
• Current: 0.20 A (50 Hz), 0.18 A (60 Hz)
• Bearing type: Ball bearing
• Frame material: Die-cast aluminium
• Impeller material: Thermoplastic PBT (UL94V-0)
• Filter material: Synthetic fiber
• Protection class: IP54
• Connection type: Terminal connection
• Operating temperature: -10 °C to 70 °C
• Life expectancy (MTBF): 50,000 hours at 25 °C

Final note

Built for demanding environments, this fan delivers reliable airflow and filtration where it matters most.
