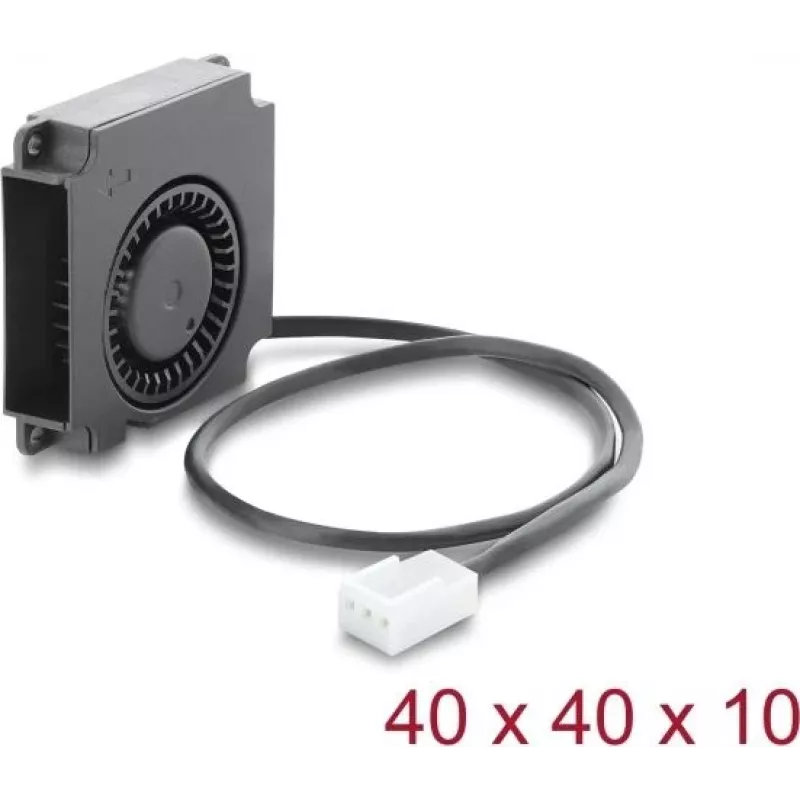

Delock Ventilador soplador 12 V DC 40 x 40 x 10 mm con conector de ventilador de 3 pines, negro (67488)

The Delock Blower Fan (Radial Fan) with model number 67488 is a compact and efficient cooling solution designed for various electronic applications. With its small footprint of 40 x 40 x 10 mm, it fits into tight spaces where standard axial fans cannot be used. Operating at 12 V DC, this fan delivers reliable performance with a rotational speed of 6000 RPM ±10%, providing an airflow of 0.12 m³/min (4.24 CFM) and a static pressure of 10.0 mmH₂O. The sleeve bearing ensures quiet operation with a noise level of only 30.0 dBA, making it suitable for noise-sensitive environments.

Advantages

This blower fan offers several benefits: it is compact and low-profile, ideal for space-constrained applications; it provides high static pressure for effective cooling in restricted airflow paths; it operates quietly at 30 dBA; and it has a long life expectancy of 30,000 hours at 40 °C. The 3-pin fan connector allows easy integration with standard fan headers on motherboards or controllers.

Suitable for

• Cooling small electronic enclosures and devices
• Ventilation in network switches, routers, and other networking equipment
• Thermal management in 3D printers, LED lighting, and audio equipment
• Replacement fan for various industrial and consumer electronics

Key specifications

• Fan Type: Blower Fan (Radial Fan)
• Operating Voltage: 12 V DC
• Dimensions (L x W x H): 40 x 40 x 10 mm
• Connector: 3-Pin Fan Connector
• Colour: Black
• Bearing: Sleeve Bearing
• Rotational Speed: 6000 RPM ±10%
• Airflow: 0.12 m³/min (4.24 CFM)
• Static Pressure: 10.0 mmH₂O
• Noise Level: 30.0 dBA
• Current Consumption: 0.08 A
• Power Consumption: 0.96 W
• Cable Length: 30 cm
• Operating Temperature: -10 °C to 70 °C
• Life Expectancy: 30,000 hours at 40 °C
• Material: Plastic

Recommendations

For optimal performance, ensure that the fan is installed with proper airflow direction and that the power supply can deliver at least 0.08 A at 12 V DC. This fan is not suitable for use in dusty or humid environments without additional protection. Always verify compatibility with your device's connector and mounting holes.
