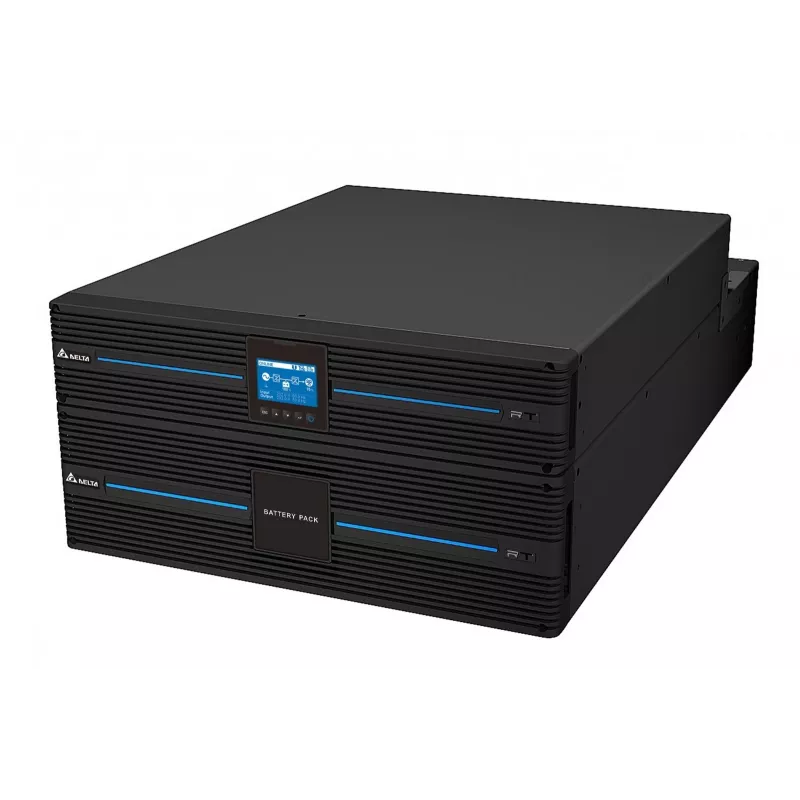

SAI UPS103R2RT0B035 Amplon RT-10K Standard; módulo de batería 20x9Ah y bypass con distribución C13x6; C19x5

The Delta Amplon RT-10K Standard is a robust 10 kVA online double-conversion UPS designed for rack-mount environments, delivering reliable power protection with a built-in battery module and integrated bypass distribution. It features 20 x 9Ah batteries for extended backup and multiple output ports to support critical equipment.

Key features

• 10 kVA / 10,000 W active power with online double-conversion topology for clean, stable output
• 20 internal 9Ah batteries providing 3.5 minutes backup at full load
• Integrated bypass with distribution: 6 x IEC-C13 and 5 x IEC-C19 output power ports
• Graphical LCD display with LED indicators for real-time monitoring
• Comprehensive connectivity: RS-232, RS-485, USB Type-B, Mini Slot, REPO, and dry contact I/O ports
• Rack-mount chassis (440 x 750 x 218 mm) with black finish; operating temperature 0–55°C
• Noise level 50 dB; humidity tolerance 5–95% non-condensing
