DELTA OPTICAL base de lastre con mástil telescópico MBT-5.4 5,4 m

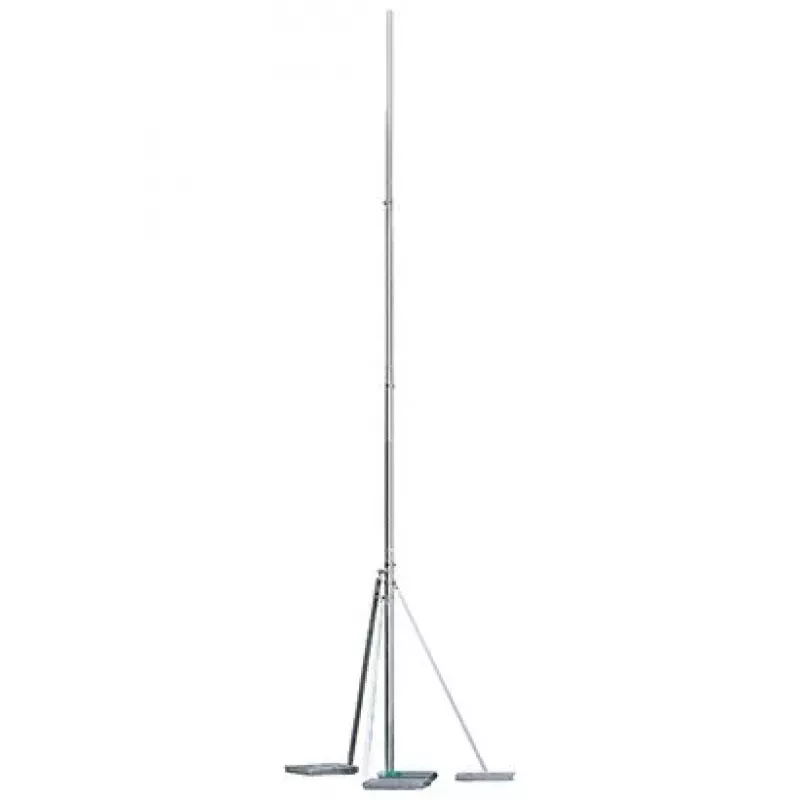

The DELTA OPTICAL MBT-5.4 is a robust ballast base with a telescopic mast, designed for secure and flexible outdoor installation of antennas, satellite dishes, CCTV cameras, and lighting equipment. With a maximum height of 5.4 meters and a heavy concrete base, it provides stability and ease of use.

Advantages

This freestanding mast system offers quick, tool-free assembly and integrated handles for portability. The hot-dip galvanized steel mast ensures corrosion resistance, while the concrete ballast base provides excellent stability without the need for permanent fixtures.

Suitable for

• DVB-T antennas
• Small satellite dishes
• CCTV cameras
• Outdoor lighting

Key specifications

• Mast type: Telescopic
• Max mast height: 5.4 m
• Collapsed mast height: 1.8 m
• Number of mast sections: 4
• Mast material: Galvanized steel
• Base type: Ballast (concrete)
• Base dimensions (L x W x H): 500 x 500 x 100 mm
• Mast top section diameter: 38 mm
• Mast bottom section diameter: 50 mm
• Weather resistance: Outdoor rated
• Corrosion protection: Hot-dip galvanized
• Portability: Integrated handles

Recommendations

For optimal performance, use universal antenna clamps (not included) to secure your equipment. Ensure the base is placed on a level, solid surface.
