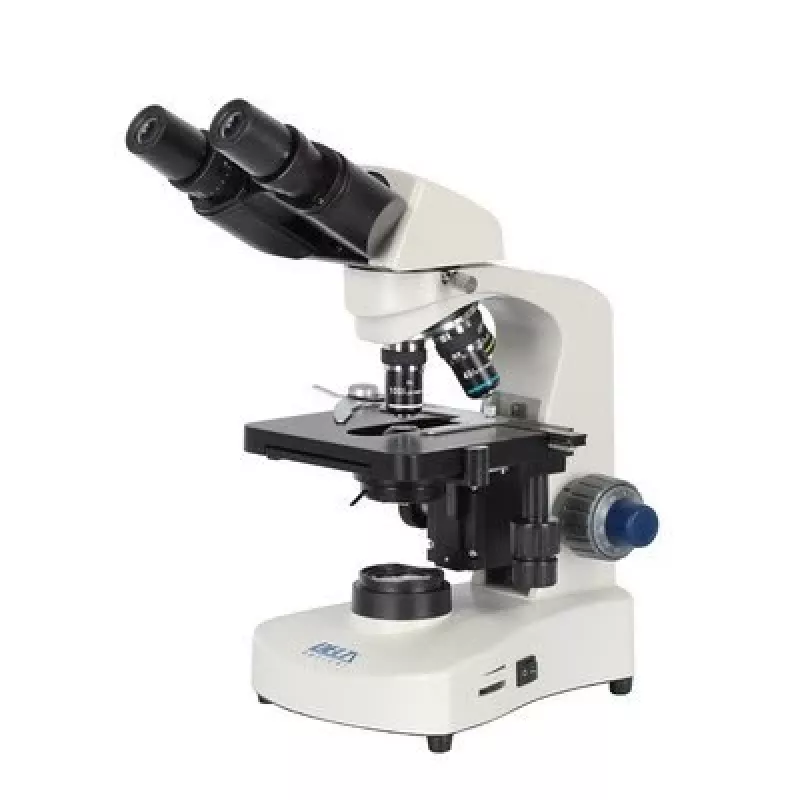

Microscopio Delta Optical Genetic Pro Bino

The Delta Optical Genetic Pro Bino Microscope is a high-performance biological binocular microscope designed for professional laboratory and educational use. With a Siedentopf binocular head inclined at 30 degrees and 360-degree rotation, it offers comfortable observation for extended periods. The microscope features a quadruple revolving nosepiece with achromatic objectives (4x, 10x, 40x spring, 100x oil spring) and WF10x eyepieces with an 18 mm field of view, providing a total magnification range from 40x to 1000x. The coaxial coarse and fine focusing system with 0.002 mm precision ensures sharp images, while the mechanical double-layer stage (125 x 115 mm) with X-Y movement range of 70 x 30 mm allows precise specimen positioning. Illumination is provided by a 3W LED with an Abbe condenser (N.A. 1.25), and the power supply is AC 230V / 50Hz.

Advantages

This microscope combines robust construction with advanced optical components, delivering clear and detailed images. The LED illumination is energy-efficient and long-lasting, while the mechanical stage enhances usability for precise sample analysis. The Siedentopf head design allows easy interpupillary adjustment, making it suitable for multiple users.

Suitable for

• Biological and medical laboratories
• Educational institutions (high schools, universities)
• Clinical diagnostics and research
• Hobbyists and enthusiasts requiring professional-grade equipment

Key specifications

• Microscope Type: Biological Binocular
• Head: Siedentopf Binocular, 30° inclined, 360° rotatable
• Eyepieces: WF10x (18 mm field of view)
• Objectives: Achromatic 4x, 10x, 40x (spring), 100x (oil, spring)
• Nosepiece: Quadruple revolving
• Magnification: 40x - 1000x
• Focus: Coaxial coarse and fine (0.002 mm precision)
• Stage: Mechanical double layer, 125 x 115 mm, X-Y range 70 x 30 mm
• Illumination: 3W LED
• Condenser: Abbe N.A. 1.25
• Power: AC 230V / 50Hz

Recommendations

The Delta Optical Genetic Pro Bino Microscope is an excellent choice for those seeking reliable performance and durability. Its comprehensive feature set makes it ideal for a wide range of microscopy applications, from routine lab work to advanced research.
