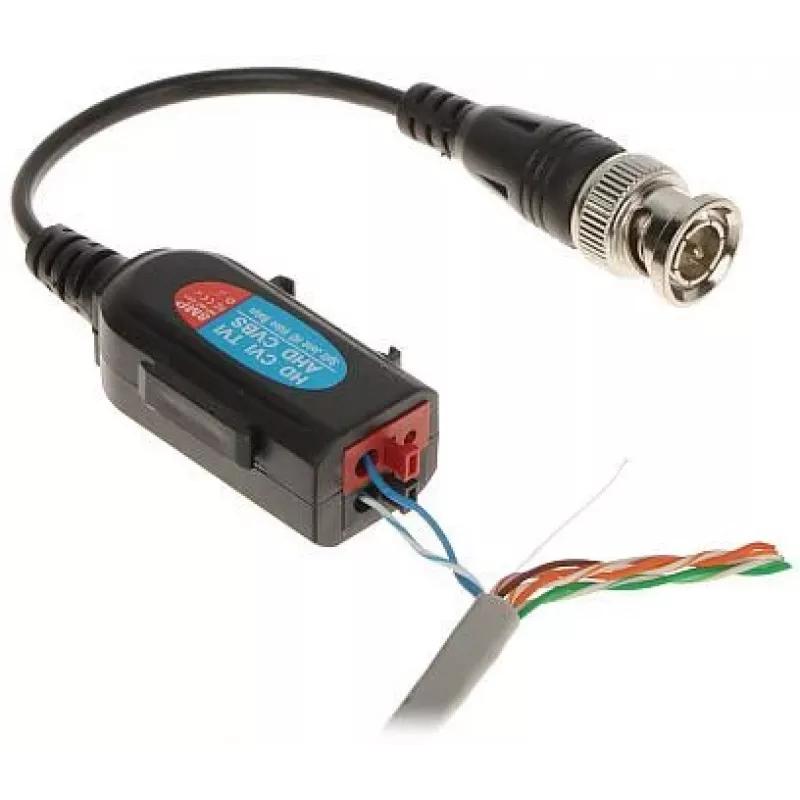

DELTA TR-1D-HD*P2 Transformador de vídeo (Balun)

The DELTA TR-1D-HD*P2 is a passive single-channel video transformer (balun) supporting AHD, HD-CVI, HD-TVI, and CVBS standards. It provides video transmission over UTP cat. 5e cable with ranges up to 250 m at 720p, 150 m at 1080p, and 400 m for CVBS (PAL, NTSC).

Key features

• Supports AHD, HD-CVI, HD-TVI up to 8 Mpx 4K UHD
• Supports CVBS (PAL, NTSC)
• Passive device
• 1 channel
• Video range: 250 m @ 720p, 150 m @ 1080p, 400 m @ CVBS (over UTP cat. 5e)
• BNC male connector on coaxial side
• Spring terminals on balanced side

Specifications

• Brand: Delta
• MPN: TR-1D-HD*P2
• Attenuation: 4.43 MHz @ 0.43 dB; 11 MHz @ 0.65 dB; 21 MHz @ 0.93 dB; 38 MHz @ 1.26 dB; 42 MHz @ 1.62 dB; 67.5 MHz @ 2.28 dB
• CMRR: 60 dB @ 5 MHz
• Coaxial connector impedance: 75 Ω
• Balanced connector impedance: 100 Ω
• Coaxial connector type: BNC male on cable
• Balanced connector type: Spring terminals
• Operating temperature: -10 °C to 70 °C
• Weight: 0.02 kg
• Dimensions: 42 x 15.9 x 23 mm
