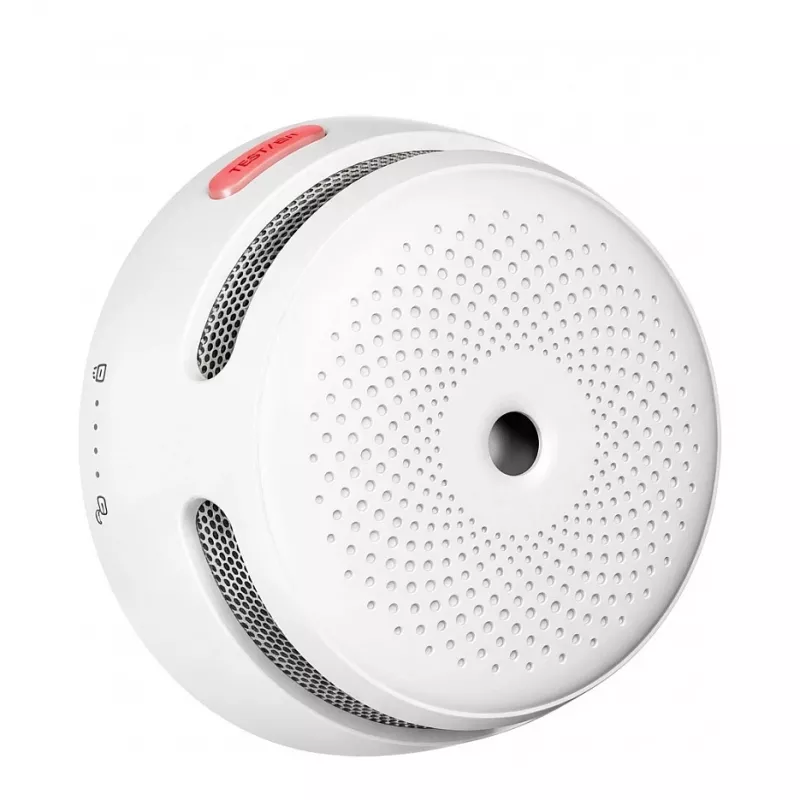

Detector de humo inalámbrico a pilas X-Sense XS01 — detector de humo autónomo para el hogar y pequeñas oficinas

The X-Sense XS01 smoke detector is a compact photoelectric alarm designed to detect smoldering fires quickly and accurately. Its photoelectric sensor responds to small smoke particles produced by materials such as paper and wood. With a diameter of 78 mm and a height of 48 mm, the detector has a discreet modern design that fits most interiors. A built-in non-replaceable 3 V CR123A lithium battery provides up to 10 years of operation, reducing the need for maintenance.

Advantages

The XS01 offers sensitive detection of smoldering materials thanks to photoelectric technology, a loud ≥85 dB alarm for clear audio notification, and a red LED indicator for visual alert. The housing is made of fire-resistant ABS and withstands temperatures up to 300°C. Low standby current consumption extends battery life, while test/silence functionality and status LEDs simplify maintenance and operation.

Key specifications

• Manufacturer: X-Sense
• Model: XS01
• Safety standard: EN 14604:2005 + AC:2008
• Sensor type: Photoelectric
• Lifetime: 10 years
• Power supply: 3 V CR123A lithium battery (non-replaceable)
• Standby current consumption: < 6 µA
• Alarm current: < 60 mA
• Alarm sound level: ≥ 85 dB at 3 m
• Operating temperature range: 4.4–37.8°C (40–100°F)
• Operating humidity: ≤ 85% RH (non-condensing)
• Mute time: ≤ 9 minutes
• Indicator: Red LED
• Dimensions: 78 x 78 x 48 mm
• Weight: 91 g

How to use

Install the detector on a ceiling or high on a wall using the included mounting bracket, screws and anchors. Press the test/silence button to verify correct operation; the alarm emits sound and the red LED flashes during a test. If the alarm sounds during a real event, evacuate the area immediately and call emergency services. Use the silence function to temporarily mute false alarms; the mute time is up to 9 minutes. Replace the detector after the indicated 10-year lifetime.

Recommendations

Place an X-Sense XS01 smoke detector in bedrooms, living rooms and other rooms where smoldering fires may start. Install detectors on every floor and near sleeping areas for comprehensive protection. Do not paint the device or block the sensor openings; perform periodic visual checks and test the unit regularly using the test button.
