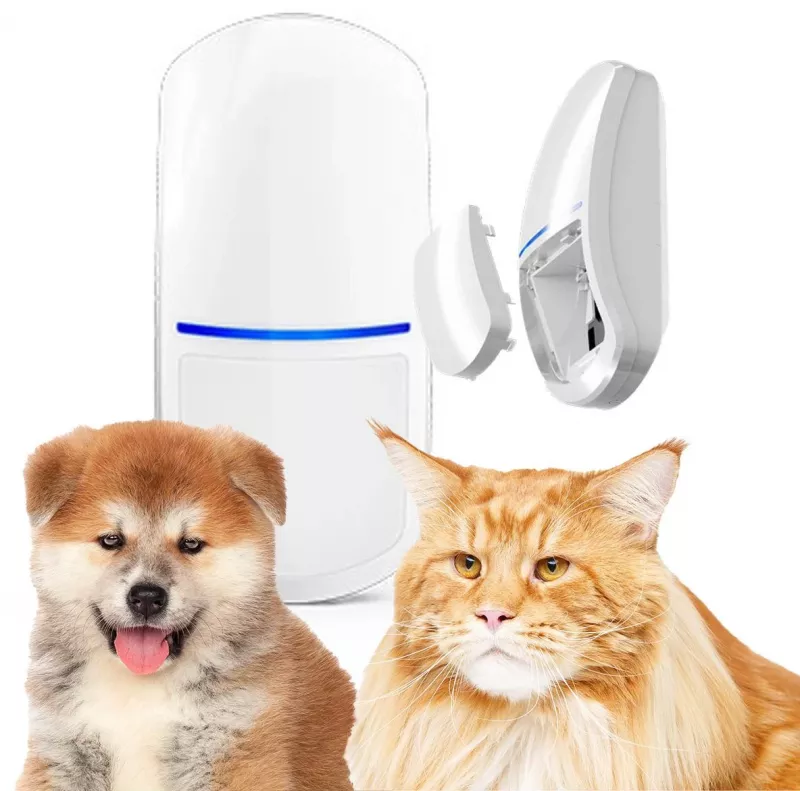

Detector de movimiento dual SATEL SLIM-DUAL-PET PIR+MW

The SATEL SLIM-DUAL-PET is a dual technology motion sensor combining Passive Infrared (PIR) and Microwave (MW) detection for enhanced security. Designed for indoor use, it offers pet immunity up to 20 kg, making it ideal for homes with pets. The slim profile allows discreet installation, while the 24.125 GHz microwave frequency ensures reliable detection.

Advantages

Dual PIR+MW technology reduces false alarms. Pet immunity selectable up to 20 kg. Digital temperature compensation for stable performance. Adjustable PIR and microwave sensitivity. Grade 2 security compliance.

Suitable for

• Residential and commercial indoor security systems
• Areas where pets up to 20 kg are present
• Installations requiring a slim, low-profile detector

Key specifications

• Detection method: PIR + Microwave (24.125 GHz)

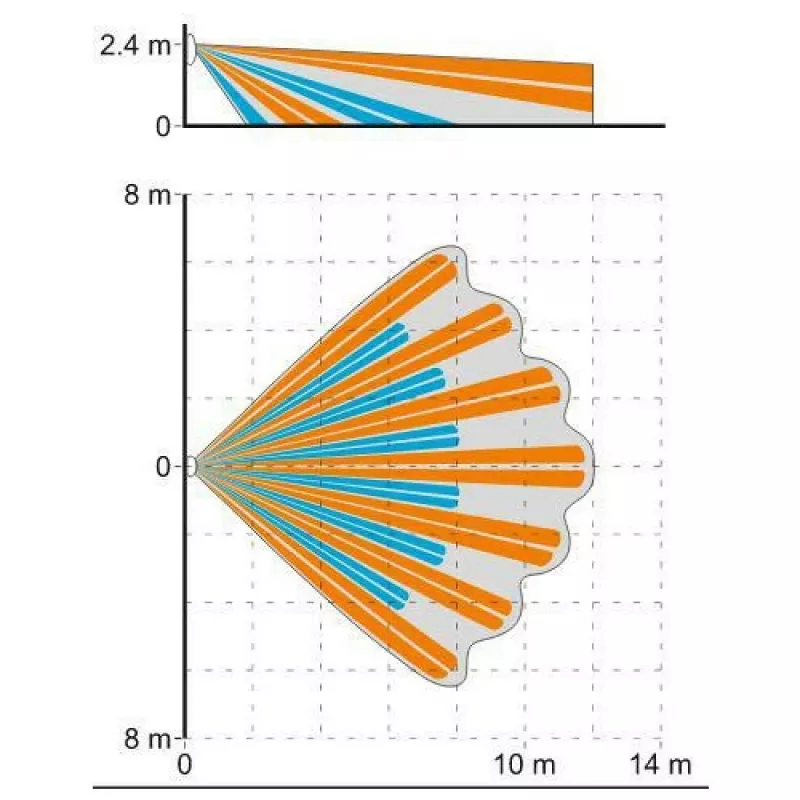

• Detection range: 15 m x 24 m (90°)
• Pet immunity: Up to 20 kg (selectable)
• Security grade: Grade 2 (EN 50131-2-4)
• Power supply: 12 V DC (±15%)
• Max current consumption: 12 mA
• Operating temperature: -10°C to +55°C
• Tamper protection: Enclosure tamper
• Alarm output: NC relay
• Recommended mounting height: 2.4 m
• Warm-up time: 30 seconds
• LED indicators: Alarm, PIR, MW

Recommendations

For optimal performance, mount at 2.4 m height and avoid direct sunlight or heat sources. Adjust sensitivity according to environment.
