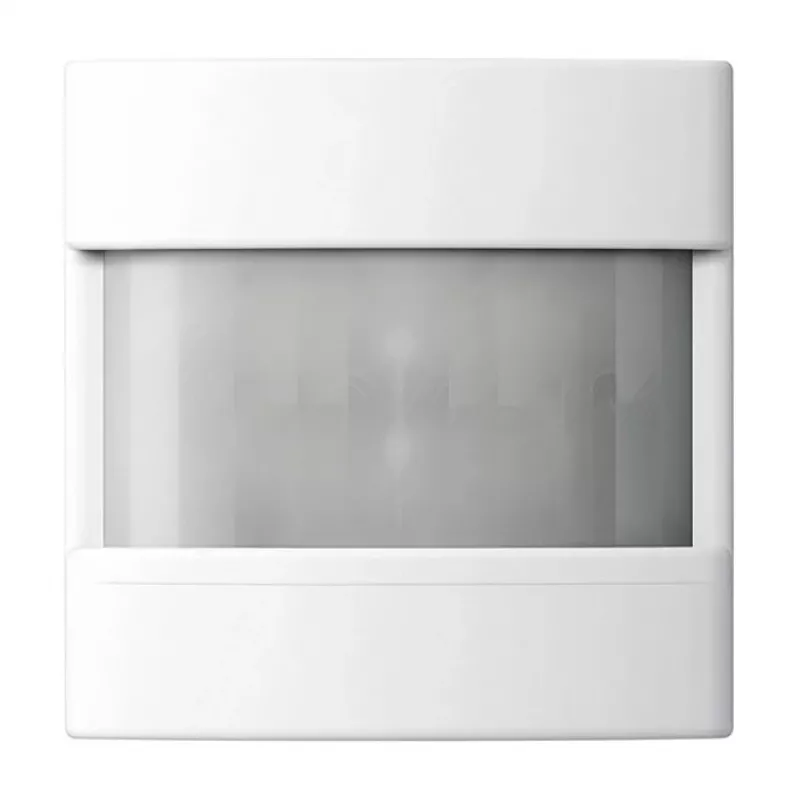

Detector de movimiento Jung A17182WW LB-Management, montaje en pared, altura de detección 1,10 m

Jung A17182WW LB-Management is a wall-mounted motion detector engineered for presence and movement detection in short-range indoor areas. With a specified detection height of 1.10 m and compatibility with LB-Management systems, this sensor provides reliable input for automated lighting control and building management functions. The compact design is intended for installation in corridors, stairwells and small rooms where targeted detection at occupant height is required.

Advantages

This motion detector offers focused detection at a predefined height of 1.10 m, reducing unwanted activations from movements above or below that range. Integration with LB-Management systems enables centralized control and straightforward configuration within existing building automation. The wall-mounted form factor simplifies installation in confined circulation spaces and allows precise placement for corridor and stairwell coverage. The device's design supports consistent detection of presence and movement for automated lighting and energy-saving scenarios.

Suitable for

Key specifications

How to use

Install the detector on a wall at the recommended height so the sensor plane aligns with the typical occupant height of approximately 1.10 m to achieve the specified detection performance. Connect the device to the LB-Management control network following the system wiring and commissioning procedures. Configure detection parameters and time delays within the LB-Management interface or during system commissioning to match the required behavior for lighting or control scenarios. Test the coverage after installation by walking through the monitored area and adjusting placement if necessary to eliminate blind spots.

Recommendations

Position the device to face the main traffic flow and avoid pointing directly at heat sources, open doors to exterior environments, or large reflective surfaces. For optimal performance in corridors and stairwells, place the detector at a consistent height and ensure there are no obstructions in the detection plane. Use system-level settings in LB-Management to fine-tune sensitivity and timing to balance responsiveness with avoidance of false triggers.
