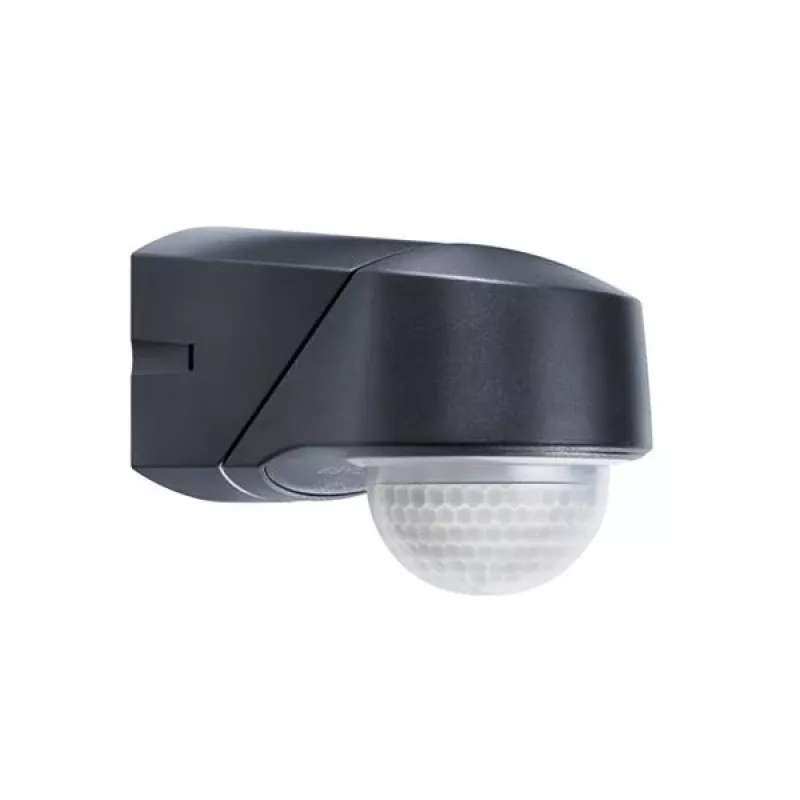

Detector de movimiento KNX ESYLUX RC 230 KNX BK 230° con protección inferior negro EM10015489

For KNX installations that need reliable presence and motion detection across wide areas, the ESYLUX RC 230 KNX BK covers a 230° field with a 16 m tangential range and adds creep zone protection to eliminate blind spots directly beneath the sensor. Its integrated light and temperature sensors enable constant light control and HVAC automation, making it suitable for offices, corridors, and open spaces where both lighting and climate should respond to occupancy.

Who is it for

KNX integrators and facility managers who require a wall-mounted presence detector with wide coverage, creep zone protection, and multi-channel control for lighting and HVAC in commercial or residential buildings.

Main features

• 230° detection angle with 16 m tangential range
• Creep zone protection for detection directly below the sensor
• Integrated light sensor for constant light control
• Integrated temperature sensor for HVAC control
• 3 light channels and 2 HVAC channels
• KNX bus powered (21–30 V DC)
• IP54 protection rating
• Black housing

Specifications

• Detection angle: 230°
• Detection range (tangential): 16 m
• Recommended mounting height: 2.5 m
• Bus system: KNX
• Operating voltage: 21–30 V DC (via KNX bus)
• Protection type: IP54
• Protection class: III
• Mounting type: Wall mounting
• Ambient temperature: -25 °C to +50 °C
• Product colour: Black

Tips

Mount at the recommended height of 2.5 m for optimal coverage. Use the integrated light sensor to maintain constant illuminance in daylight-dependent areas, and combine with the temperature sensor for automatic HVAC setback when spaces are unoccupied.
