Detector de movimiento sensor infrarrojo pasivo Maclean MCE32

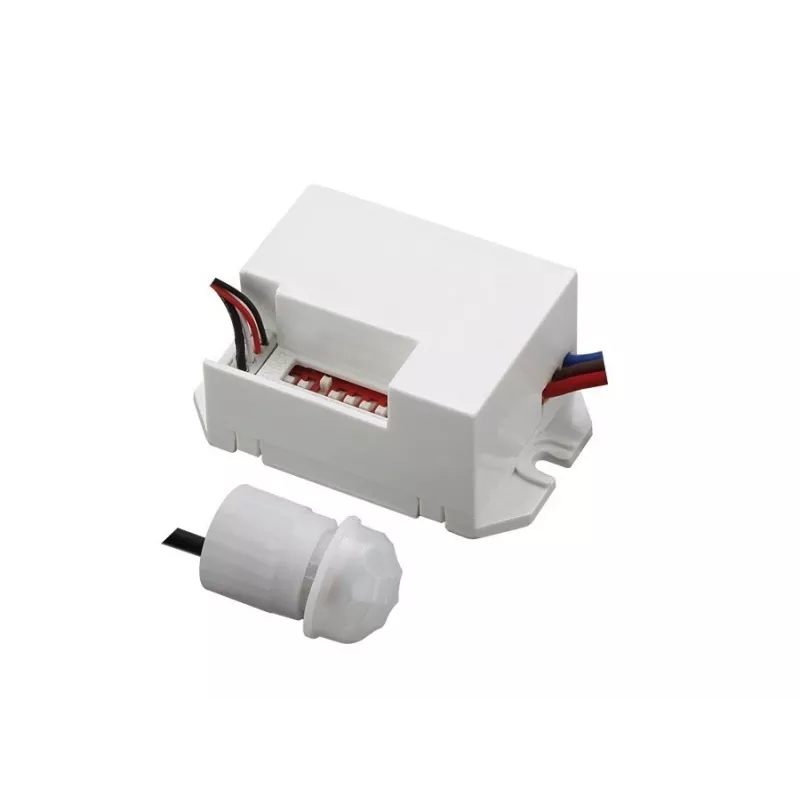

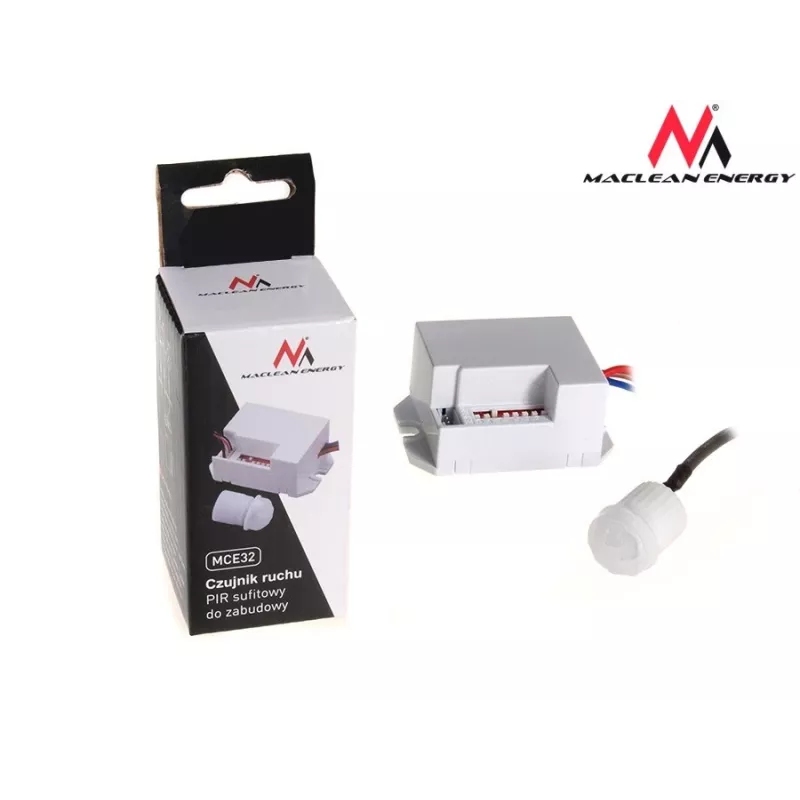

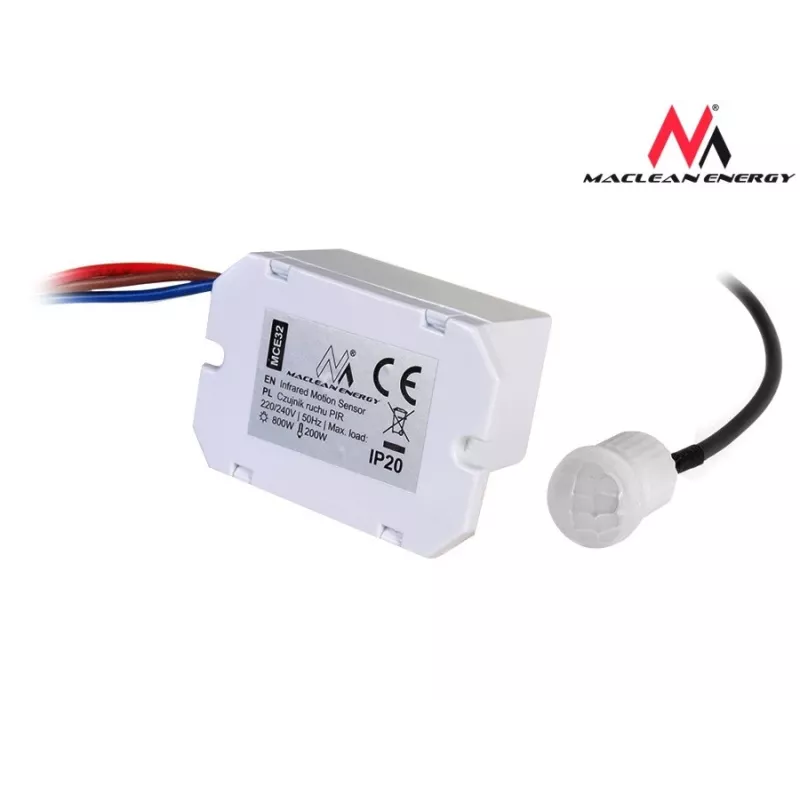

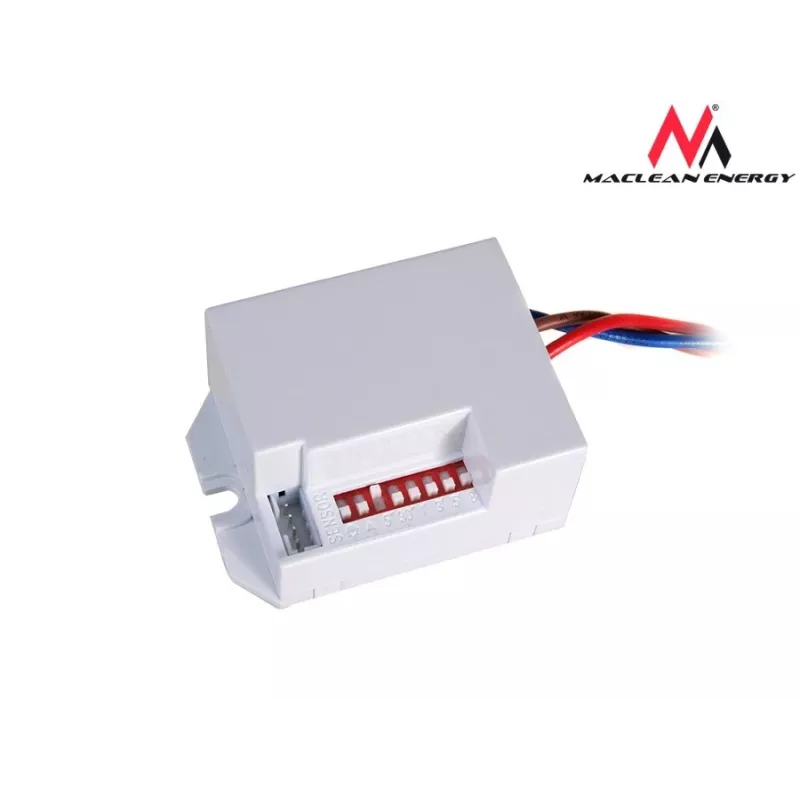

The Maclean MCE32 is a wired passive infrared (PIR) motion detector engineered for indoor environments. Finished in white, it is suitable for ceiling or wall mounting and integrates into AC-powered lighting and security circuits. The device senses human movement using PIR technology and is intended to help automate lighting control and enhance basic intrusion detection in homes, offices and similar indoor spaces.

Advantages

The Maclean MCE32 combines low power consumption with reliable PIR sensing to provide continuous operation with minimal energy draw. Its compact white housing allows discreet installation on walls or ceilings, and the wired connection supports stable power and signal transmission without the need for batteries. The detector is built for standard AC mains voltage ranges and supports common line frequencies, simplifying installation in typical residential and commercial electrical systems.

Suitable for

Key specifications

How to use

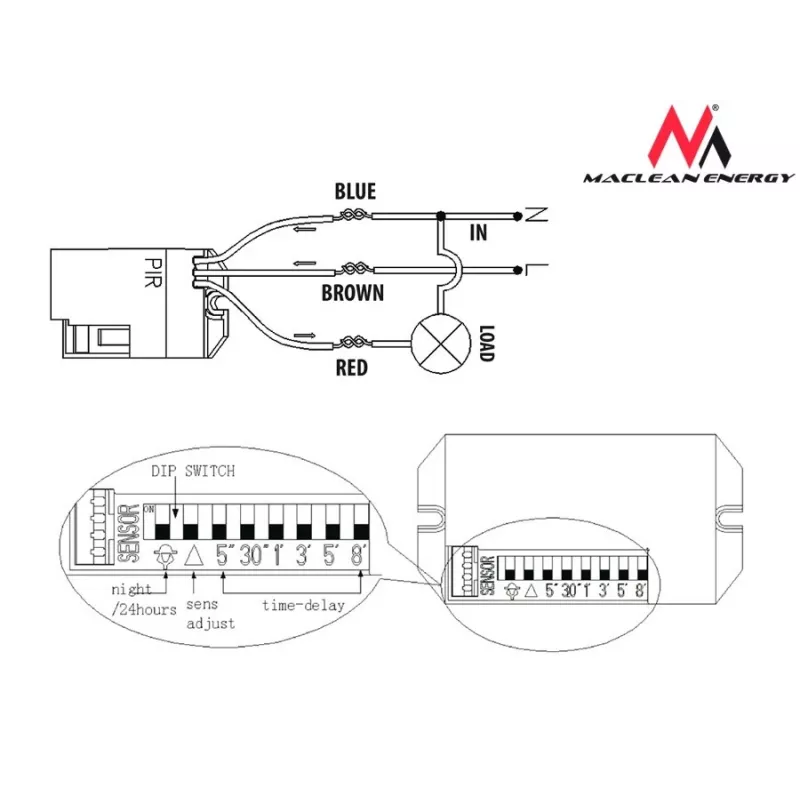

Install the Maclean MCE32 on a ceiling or wall at a location that provides a clear field of view of the monitored area and avoids direct sunlight or heat sources. Connect the detector to the mains supply and the lighting or alarm circuit following local electrical codes and the device wiring diagram supplied with the product. After powering up, verify correct operation by walking through the detection zone and observing the controlled load or alarm output. Fine-tune mounting position to minimize false triggers from HVAC vents or moving curtains.

Recommendations

For reliable performance, mount the sensor at the recommended height and angle to cover the intended area; avoid placing it near heating elements, air vents or windows with strong sunlight. Use the Maclean MCE32 in indoor circuits with compatible rated loads and ensure all electrical connections are performed by a qualified electrician according to local regulations.
