Dexlan Cable de red Cat. 6A S/FTP (PiMF) ultrafino libre de halógenos con protección de lengüeta, gris, 3,0 m 858704

For high-density network environments where every millimetre of rack space matters, this Dexlan Cat. 6A patch cable delivers 10 Gigabit performance in an ultra-thin, halogen-free design. The S/FTP (PiMF) shielding with individually foiled pairs and an overall braid ensures exceptional crosstalk immunity, while the integrated latch protection prevents accidental disconnections in crowded patch panels. At 3.0 metres in grey, it is the reliable link for data centres, server rooms, and modern office networks.

Highlights

• Cat. 6A (Class EA) performance with up to 500 MHz bandwidth and 10GBASE-T support
• S/FTP (PiMF) shielding: each pair wrapped in metal foil plus overall braid for superior EMI/RFI rejection
• Ultra-thin 30 AWG stranded copper conductors for easy routing and improved airflow in dense installations
• Halogen-free LSZH jacket for enhanced fire safety and low smoke emission

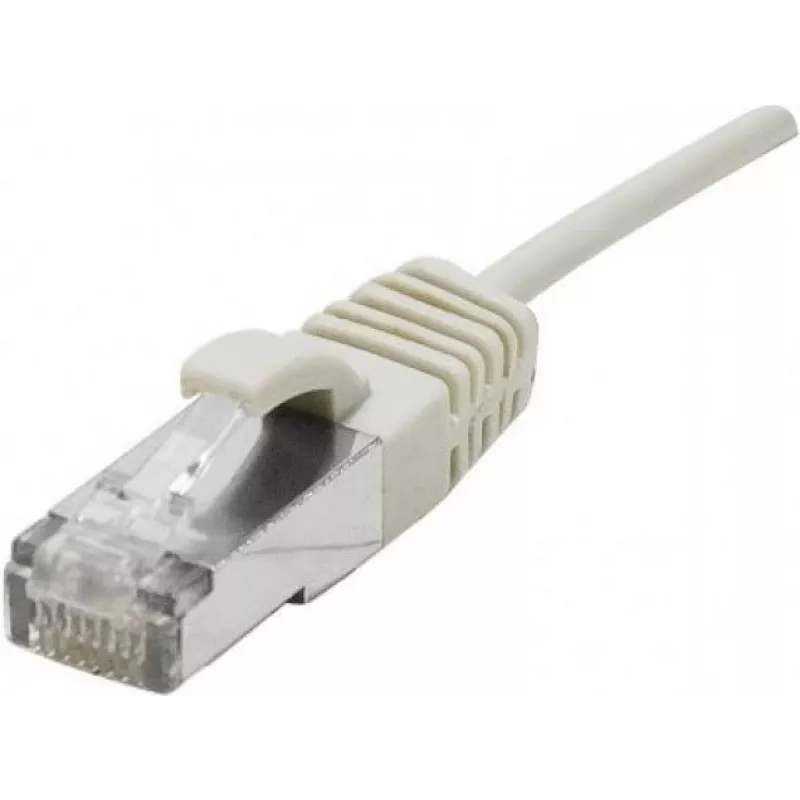

• Gold-plated RJ45 connectors with latch protection to prevent cable snags and accidental unplugging
• 3.0 m length, grey colour, TIA/EIA-568B wiring, RoHS and REACH compliant

In daily use

This patch cable is built for the realities of high-density patching. The ultra-thin profile reduces cable bulk, making it easier to manage bundles and maintain proper airflow in racks. The latch protection on the connectors prevents the locking tab from catching on adjacent cables or being broken during moves, adds, and changes. With stranded copper conductors, the cable remains flexible and resilient to repeated bending, while the gold-plated contacts ensure a reliable, corrosion-resistant connection over thousands of mating cycles.

Full specifications

• Category: Cat. 6A (Class EA)
• Shielding: S/FTP (Screened Foiled Twisted Pair), PiMF (Pairs in Metal Foil)
• Conductor material: Copper, stranded
• Conductor gauge: 30 AWG
• Jacket material: LSZH (Low Smoke Zero Halogen)
• Connectors: RJ45 male to RJ45 male, gold-plated contacts
• Cable length: 3.0 m
• Colour: Grey
• Data transfer rate: Up to 10 Gbps (10GBASE-T)
• Bandwidth: Up to 500 MHz
• Wiring standard: TIA/EIA-568B
• Compliance: RoHS, REACH
• Special features: Latch protection, ultra-thin design

Final note

Dexlan's commitment to quality ensures this patch cable meets the demands of high-performance networking while maintaining safety and ease of use in any professional installation.
