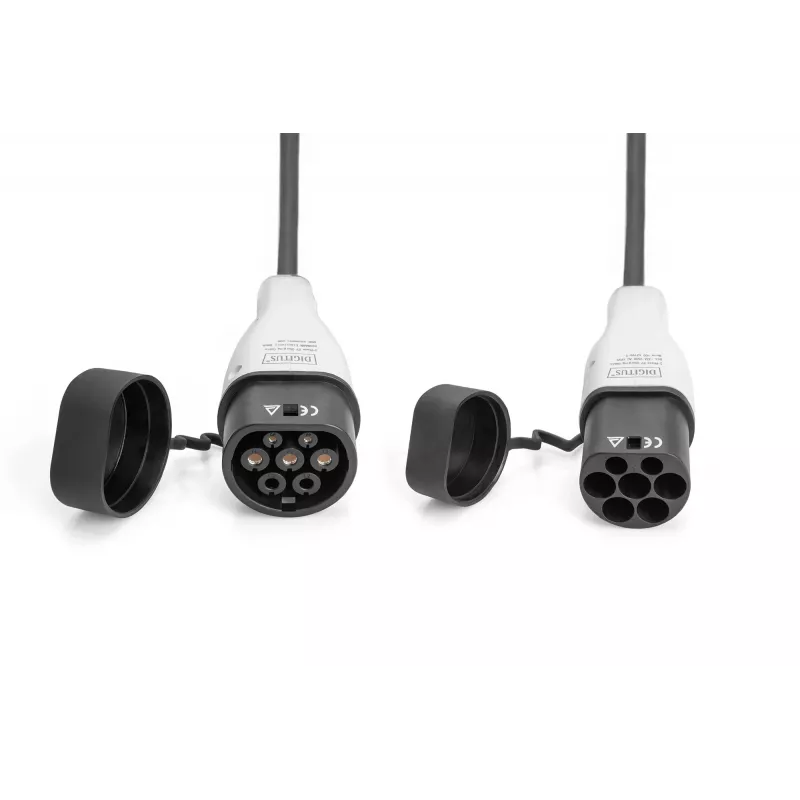

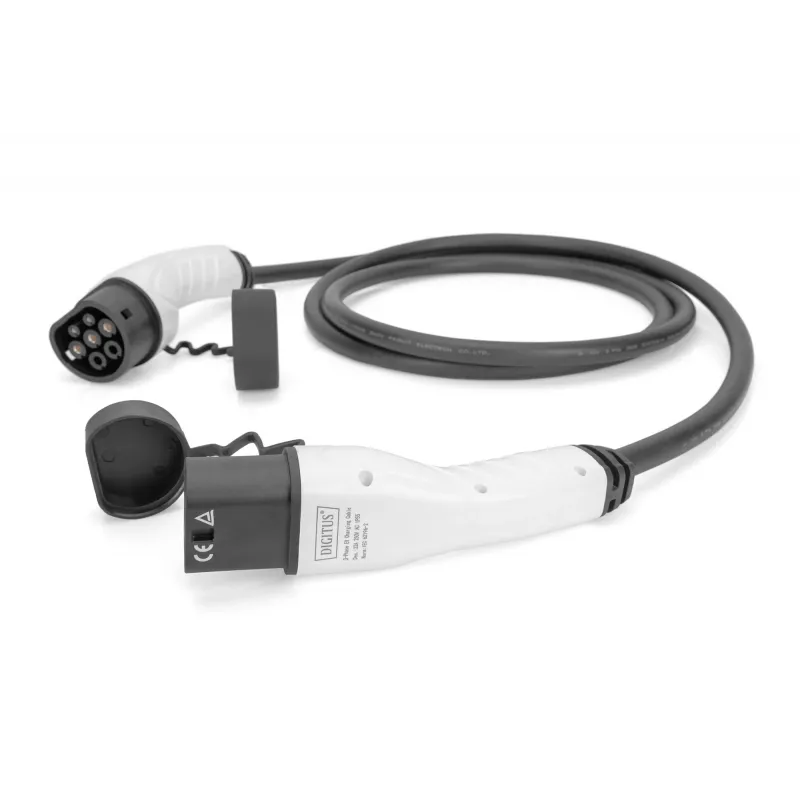

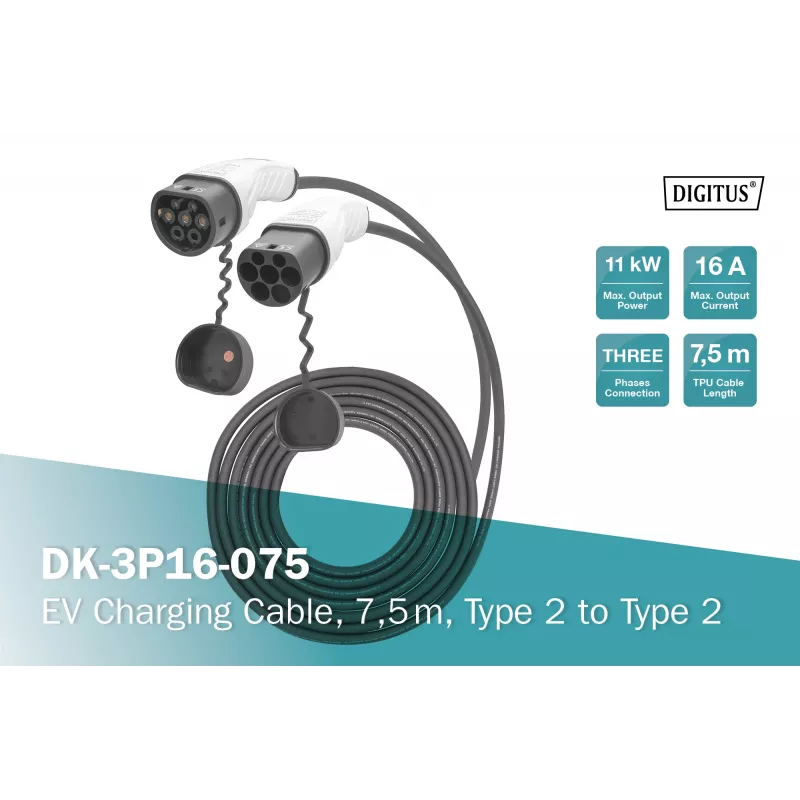

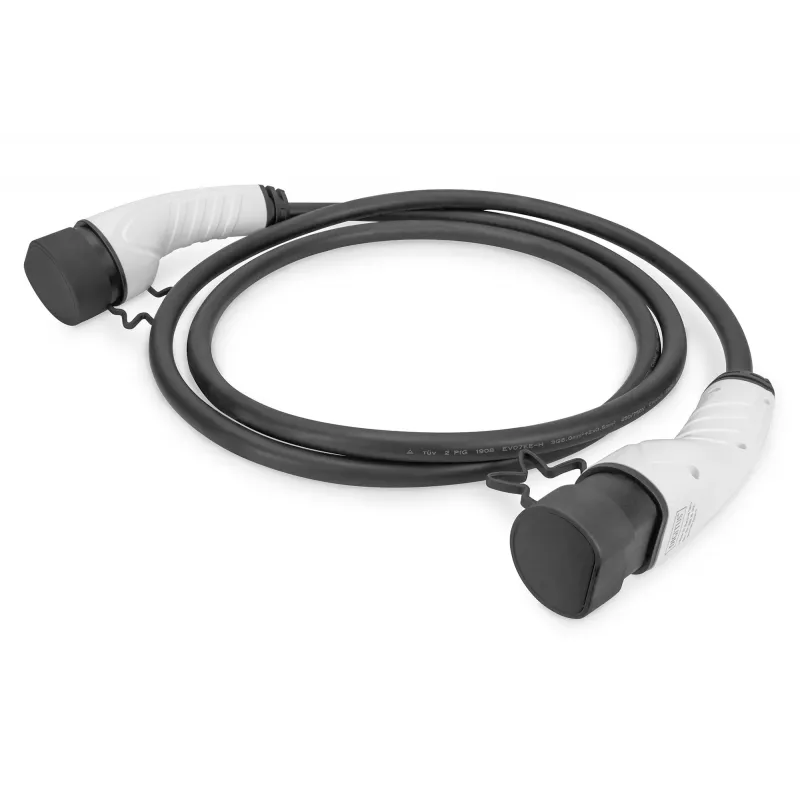

Digitus Cable de carga para VE 7,5 m Type 2 a Type 2 16 A 415 V

The DIGITUS DK-3P16-075 is a 7.5 m Type 2 to Type 2 EV charging cable designed for connecting electric cars and plug-in hybrids to wallboxes and public charging stations. With Type 2 connectors on both ends and certification to EN 62196-1:2014 and EN 62196-2:2017, the cable supports charging up to 22 kW depending on the charging device, with a maximum operating current of 16 A and an operating voltage of 415 V. The outer TPU jacket, high-quality copper conductors and IP55 protection provide durability and protection in domestic and public charging environments.

Advantages

The cable is lightweight, flexible and easy to carry or store, making it practical for use at home, in a garage or on the road. It is compatible with all vehicles using the Type 2 (IEC 62196-2) connector, and its materials and construction are chosen for safety and longevity. TÜV CE certification and IP55 rating ensure compliance with recognized safety standards.

Suitable for

• Charging electric cars and plug-in hybrids with Type 2 inlet
• Connecting vehicles to home wallboxes and garage chargers
• Using at public AC charging stations with Type 2 sockets

Key specifications

• Length: 7.5 m
• Connector: Type 2 to Type 2 (IEC 62196-2)
• Maximum current: 16 A
• Operating voltage: 415 V
• Maximum supported charging power: up to 22 kW (device dependent; 3-phase up to 11 kW at 16 A)
• Cable diameter: 1.68 cm
• Outer jacket: TPU
• Protection rating: IP55
• Certifications: EN 62196-1:2014, EN 62196-2:2017, CE (TÜV)

How to use

Ensure both the vehicle inlet and the charging station or wallbox are compatible with Type 2 connectors and switched off before connecting. Plug one Type 2 connector into the vehicle and the other into the charging socket. Secure connections are required before starting the charging process via the charging station or vehicle controls. After charging, switch off the charger if required, remove the connectors and store the cable in a dry place or hang it in the garage.

Recommendations

Inspect the cable and connectors for damage before each use, avoid sharp bends and prolonged exposure to extreme temperatures, and store the cable coiled without tight kinks. Use the cable according to the vehicle and charger specifications to ensure safe charging within the stated 16 A / 415 V limits.
