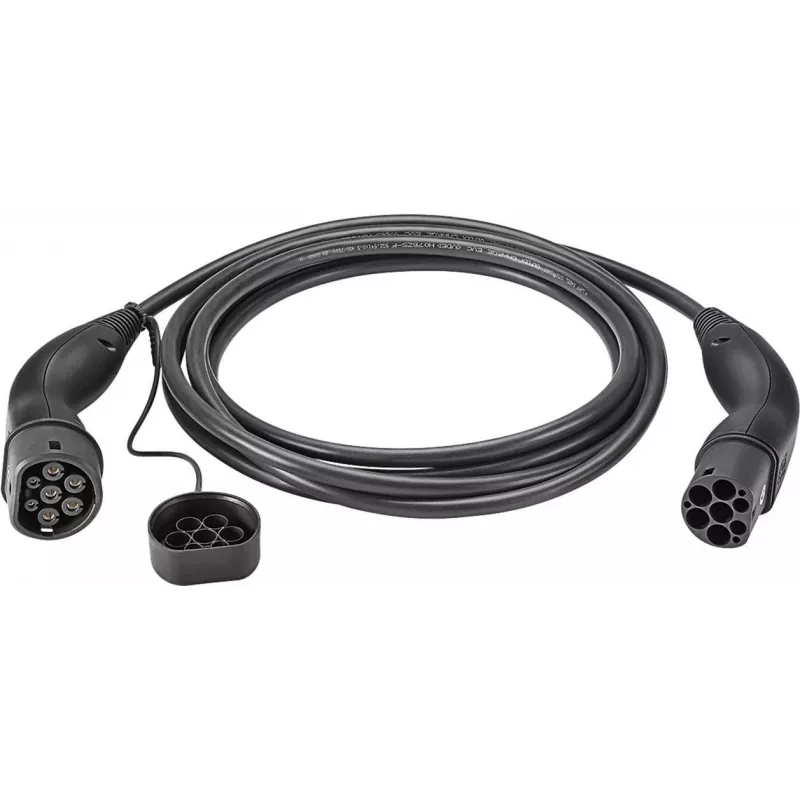

LAPP Mobility cable de carga para VE Type 2, 22 kW, 10 m, negro

The LAPP Mobility Type 2 EV Charging Cable is a high-quality, durable charging solution for electric vehicles and plug-in hybrids. Designed for both home and public charging stations, this cable supports up to 22 kW of power with 3-phase charging, ensuring fast and efficient energy transfer. With a length of 10 meters, it offers flexibility and convenience for various parking situations.

Advantages

This cable is built to last, featuring UV and oil resistance, halogen-free materials, and a robust design that withstands temperatures from -30°C to +50°C. The IP44 protection class ensures safe operation even in challenging weather conditions when connected. Certified by CE and TÜV, it meets the highest safety standards.

Suitable for

• All Type 2 electric vehicles (EV) and plug-in hybrids (PHEV)
• Public and private Type 2 charging stations
• 3-phase charging systems up to 32 A

Key specifications

• Connector Type (Vehicle Side): Type 2 (IEC 62196-2)
• Connector Type (Charging Station Side): Type 2 (IEC 62196-2)
• Maximum Charging Power: 22 kW
• Phases: 3-Phase
• Maximum Current: 32 A
• Cable Length: 10 m
• Color: Black
• Cable Standard: EN 50620
• Operating Temperature: -30°C to +50°C
• Protection Class: IP44 (when connected)
• UV Resistant: Yes
• Oil Resistant: Yes
• Halogen-Free: Yes
• Certifications: CE, TÜV

Recommendations

For optimal performance, ensure your charging station supports 22 kW and 3-phase charging. Always store the cable in a clean, dry place when not in use.
