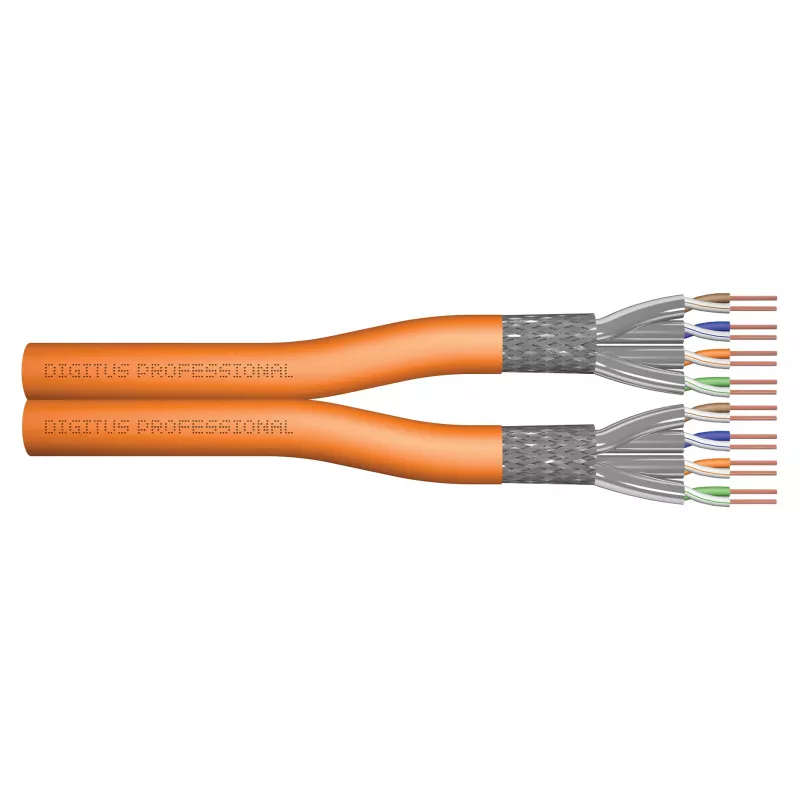

DIGITUS Cable de instalación CAT 7 S/FTP, dúplex, 500 m, LSZH, B2ca-s1a,d0,a1, naranja

The DIGITUS CAT 7 S/FTP Installation Cable is a high-performance data cable designed for structured cabling systems. With a length of 500 meters and a duplex configuration (2x 4 pairs), this cable is ideal for large-scale network installations requiring reliable 10 Gigabit Ethernet performance. The S/FTP shielding (PiMF + overall braid) provides excellent protection against electromagnetic interference, ensuring stable data transmission. The cable features solid bare copper conductors (AWG 23/1) and a low smoke zero halogen (LSZH) jacket, making it suitable for use in public buildings and areas with strict fire safety requirements. It complies with CPR fire class B2ca-s1a,d0,a1 and supports bandwidth up to 1000 MHz.

Advantages

This installation cable offers superior signal integrity and minimal crosstalk thanks to its S/FTP shielding. The LSZH jacket reduces toxic smoke emissions in case of fire, enhancing safety. The solid copper conductors ensure long-term reliability and excellent conductivity. The cable is easy to install and suitable for both horizontal and backbone cabling.

Suitable for

• Data centers and server rooms
• Enterprise network infrastructure
• Industrial Ethernet applications
• Building automation systems
• High-speed data transmission up to 10 Gbps

Key specifications

• Cable Type: CAT 7
• Shielding: S/FTP (PiMF + Overall Braid)
• Length: 500 m
• Configuration: Duplex (2x 4 Pairs)
• Conductor: Solid Bare Copper, AWG 23/1
• Jacket Material: LSZH
• CPR Fire Class: B2ca-s1a,d0,a1
• Bandwidth: Up to 1000 MHz
• Data Rate: 10 Gigabit Ethernet (10GBASE-T)
• Standards: ISO/IEC 11801, EN 50173, TIA/EIA 568-C.2
• Outer Diameter: approx. 2x 7.5 mm
• Color: Orange
• Impedance: 100 Ohm
• Operating Temperature: -20°C to +60°C
• Packaging: Cable Drum

Recommendations

For optimal performance, use with CAT 7 compatible connectors and patch panels. Ensure proper grounding of the shielding to maximize interference protection. This cable is ideal for new installations or upgrades to 10 Gbps networks.
