DIGITUS Cable drop FTTH - monomodo 4 fibras LC/APC G.657.A2 50m

DIGITUS Cable drop FTTH - monomodo 4 fibras LC/APC G.657.A2 50m
DIGITUS Cable drop FTTH - monomodo 4 fibras LC/APC G.657.A2 50m
DIGITUS Cable drop FTTH - monomodo 4 fibras LC/APC G.657.A2 50m
DIGITUS Cable drop FTTH - monomodo 4 fibras LC/APC G.657.A2 50m
DIGITUS Cable drop FTTH - monomodo 4 fibras LC/APC G.657.A2 50m
DIGITUS Cable drop FTTH - monomodo 4 fibras LC/APC G.657.A2 50m
DIGITUS Cable drop FTTH - monomodo 4 fibras LC/APC G.657.A2 50m
DIGITUS Cable drop FTTH - monomodo 4 fibras LC/APC G.657.A2 50m
52,15 €
High-quality cables offer an excellent option for fiber optic connections in the intended network level 4. Installation is facilitated by pre-assembled connectors for all 4 fibers at one end of the cable.- Significantly reduces installation time- Pre-assembled with LC/APC connectors on one side- The... Leer más
Stock 2 Código 129349 Marca DIGITUS Modelo DK-3904LCA-50 Garantía 2 años

Envíos y devoluciones

Entrega estimada Martes, Octubre 27
Te mantendremos informado a través de nuestro sistema de seguimiento detallado
Opciones de pago
Tarjeta bancariaVisaMastercardPayPalApple PayGoogle PayTransferencia bancaria

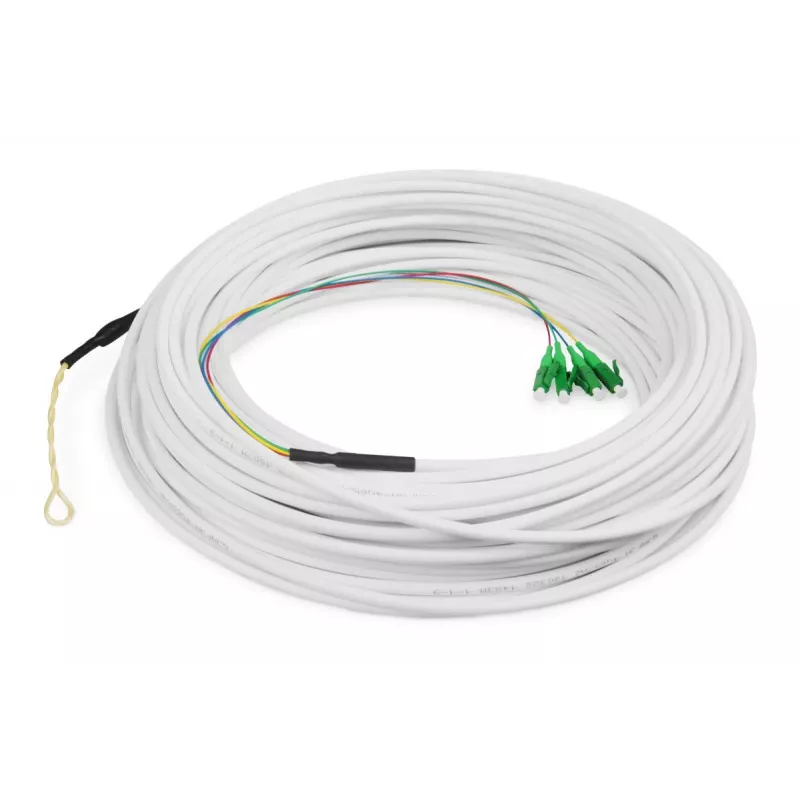

High-quality cables offer an excellent option for fiber optic connections in the intended network level 4. Installation is facilitated by pre-assembled connectors for all 4 fibers at one end of the cable.

- Significantly reduces installation time

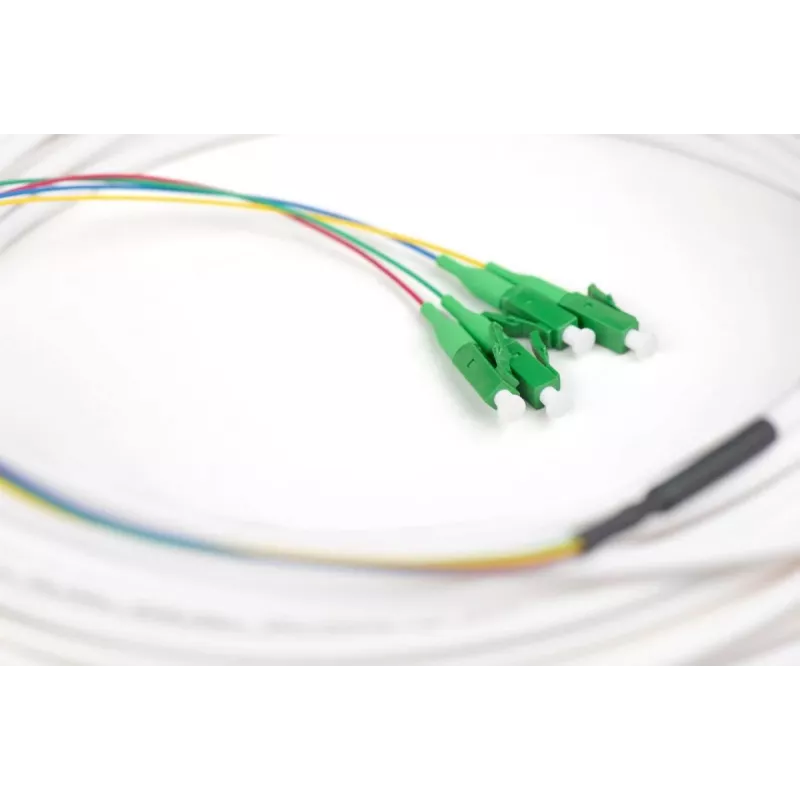

- Pre-assembled with LC/APC connectors on one side
- The open end can simply be pulled in or connected to the house distributor
- G.657A2 bend-optimized

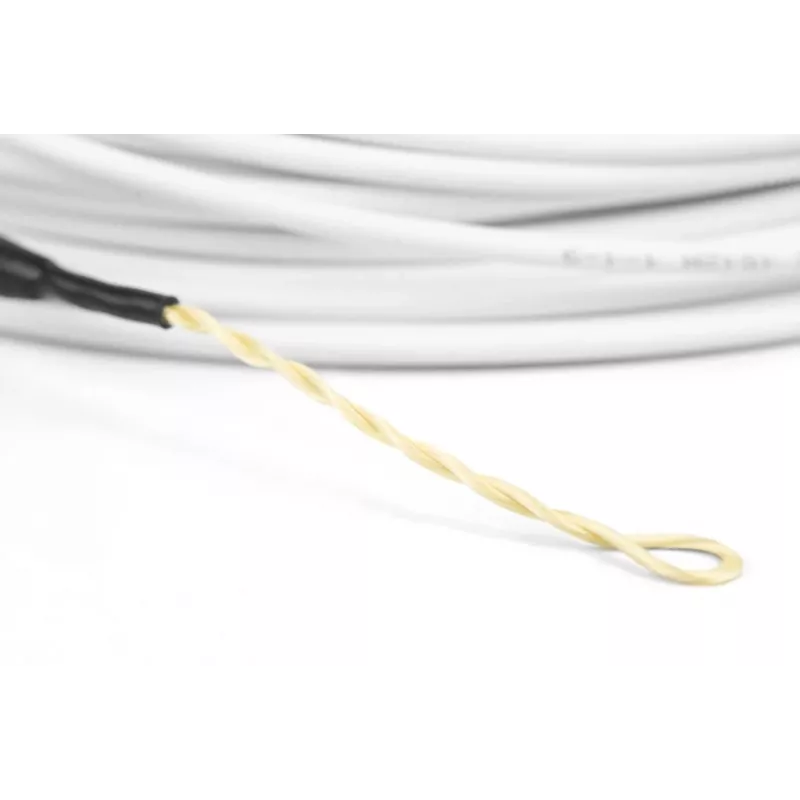

- Sturdy pull-in loop for pulling the cable into trunking systems

The growing demand for the extension of fiber optic networks into the home requires products that enable simple and efficient installation to implement the network. The Digitus cable offers the possibility of easily extending and completing the fiber optic network in the home. The cable is designed for use as a connecting cable between the building distributor and the floor distributor or subscriber termination point at network level 4. The simple installation results from the fact that the cable is pre-assembled on the subscriber side and open with LC/APC connectors; it can then be installed through a duct to the distributor, which serves as the entry point for the fiber optic network in the building.

Aspectos destacados
  • Fiber type : Singlemode 9/125
  • Category : G657A2
  • Cable length : 50 m
  • Number of fibers : 4
  • Fiber colors : blue, green, yellow, red

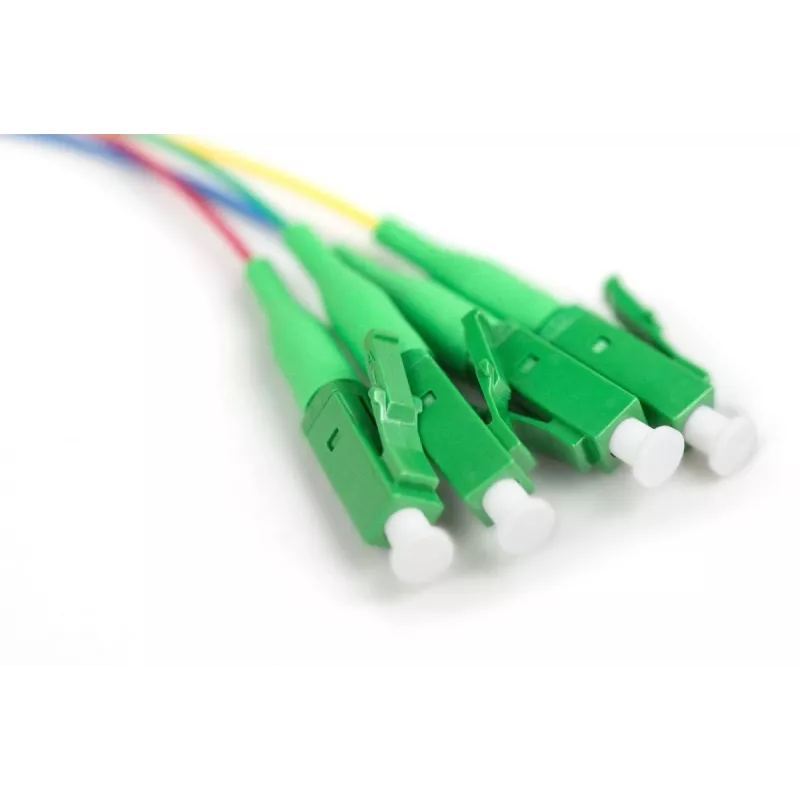

  • Connector type : LC/APC
  • Coat color : White
  • Sheath material : LSZH
  • Stranding element : Kevlar yarn
  • Cable structure : Dca
  • Cable diameter : 2,4mm
  • Diameter of the pulling aid : 7-8cm (length)
  • Min. Bending radius of the cable : 10D/20D
  • Tensile strength : 400 N
  • Compressive strength : 1000 N
  • Insertion loss of the plug : ≤0.3 dB
  • Return loss of the plug : ≥60 dB
  • Storage temperature : -40 to +80 °C
  • Working temperature : -20~+70
  • Cable weight : 0,63kg
Especificaciones
Cantidad por paquete
1 pc(s)
Color del producto
White
Conector 1
4x LC
Conector 2
No
Diámetro del cable
4 mm
Diámetro del núcleo
9 µm
Diámetro del revestimiento
125 µm
Estructura del modo de fibra
Single-mode
Forma del cable
Round
Género del conector 1
Male
Género del conector 2
No
Longitud del cable
50 m
Material de la funda
Low smoke zero halogen (LSZH)
Pérdida de inserción
0.3 dB
Pérdida de retorno
60 dB
Peso
630 g
Plug and Play
Yes
Resistencia a la compresión
1000
Temperatura de almacenamiento (T-T)
-40 - 80 °C
Temperatura de funcionamiento (T-T)
-20 - 70 °C
Tipo de cable
LC/APC
Tipo de fibra óptica
G.657.A2
Tipo de pulido del conector
APC

Folleto

Abrir documento
