DIGITUS Caja de distribución de fibra óptica para carril DIN, MM OM4, premontada, con adaptador SC y pigtail

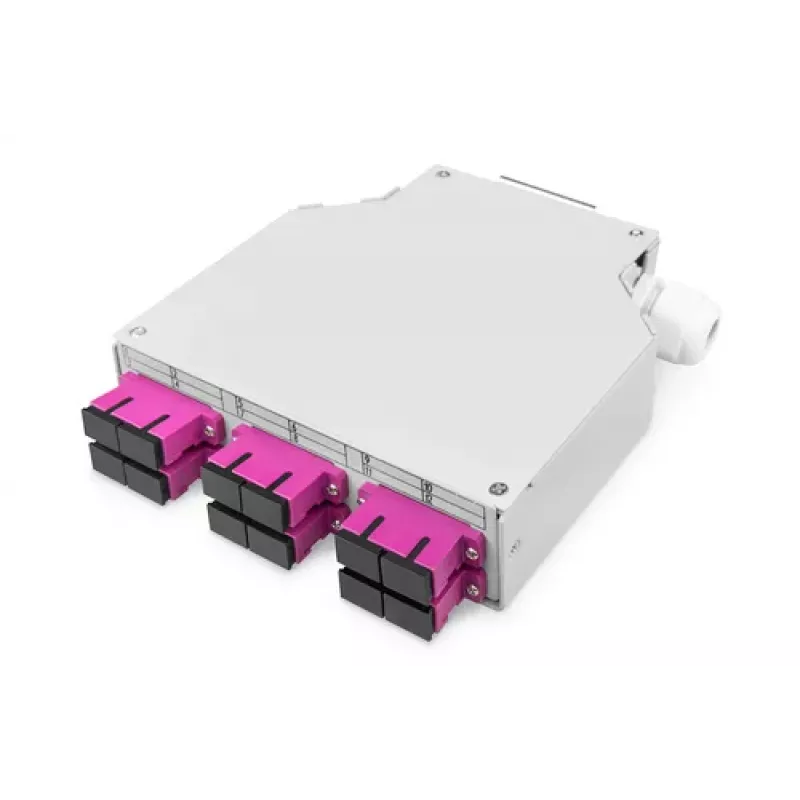

The DIGITUS LWL DIN Rail Distribution Box is a pre-assembled fiber optic distribution solution designed for industrial and network environments. It features multimode OM4 fiber technology with SC-Duplex connectors, providing reliable and high-speed data transmission. The box is equipped with 12 pigtails (0.5 m each) and 6 SC-Duplex adapters, making it ideal for structured cabling and fiber-to-the-desk applications. Its robust steel housing with powder coating ensures durability, while the DIN rail mounting (35 mm) allows for easy installation in control cabinets.

Advantages

Pre-assembled with pigtails and adapters saves installation time and reduces splicing errors. The integrated splice tray simplifies fiber management. Compact design fits standard DIN rails, optimizing space in enclosures. OM4 grade supports high-bandwidth applications up to 40/100 Gbit/s.

Suitable for

• Industrial automation networks
• Data center patching
• Telecommunications distribution points
• Building infrastructure cabling

Key specifications

• Product Type: Fiber Optic DIN Rail Distribution Box
• Fiber Type: Multimode (MM) OM4, 50/125 µm
• Connector Type: SC-Duplex
• Number of Ports: 6x SC-Duplex
• Number of Fibers: 12
• Pigtail Count: 12 (0.5 m each)
• Mounting: DIN Rail (35 mm)
• Housing Material: Steel, powder-coated, Grey (RAL 7035)
• Cable Entry: 2x M20/M25
• Operating Temperature: -20°C to +70°C

Recommendations

For optimal performance, use with OM4 patch cables and ensure proper grounding. Suitable for indoor use only.
