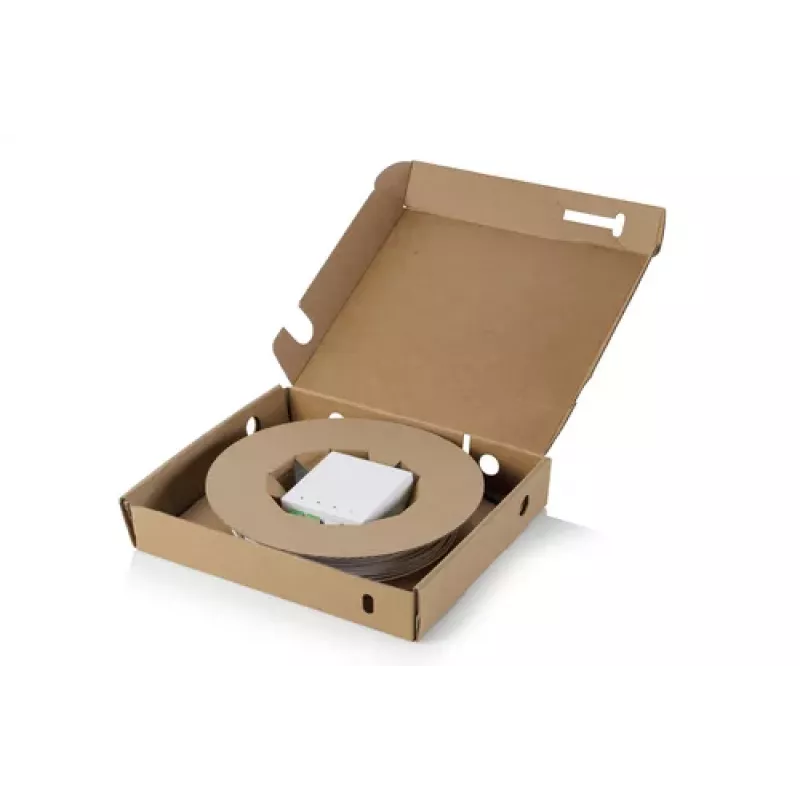

DIGITUS kit de instalación FTTX, premontado, 4 fibras, conector LC/APC, longitud 30 m

The DIGITUS FTTX Installation Kit is a pre-assembled, 4-fiber single-mode drop cable solution designed for fast and reliable fiber optic installations in FTTX, FTTH, FTTB, and FTTD networks. With LC/APC connectors on both ends and a length of 30 meters, this kit provides a ready-to-use connection for indoor or outdoor applications.

Advantages

Pre-assembled and tested for immediate deployment, saving time and reducing installation errors. The LSZH (Low Smoke Zero Halogen) jacket ensures safety in indoor environments, while the G.657.A1 fiber offers excellent bend performance. High return loss (≥60 dB) and low insertion loss (≤0.3 dB) guarantee reliable signal transmission.

Suitable for

• FTTX network deployments
• FTTH (Fiber to the Home) installations
• FTTB (Fiber to the Building) connections
• FTTD (Fiber to the Desk) applications
• Indoor and outdoor drop cable installations

Key specifications

• Product Type: FTTX Installation Kit
• Fiber Count: 4
• Fiber Type: Single-mode (OS2, G.657.A1)
• Connector Type: LC/APC (both ends)
• Cable Length: 30 m
• Cable Jacket Material: LSZH (Low Smoke Zero Halogen)
• Cable Color: Yellow
• Insertion Loss: ≤ 0.3 dB
• Return Loss: ≥ 60 dB
• Operating Wavelengths: 1310 nm, 1550 nm
• Operating Temperature: -20°C to +70°C
• Storage Temperature: -40°C to +85°C
• Minimum Bend Radius (Static): 15 mm
• Minimum Bend Radius (Dynamic): 30 mm
• Polish Type: APC (Angled Physical Contact)
• Attenuation @ 1310nm: ≤ 0.35 dB/km
• Attenuation @ 1550nm: ≤ 0.20 dB/km

Recommendations

This pre-assembled installation kit is ideal for network installers and technicians who require a quick, reliable, and high-performance fiber optic connection. Ensure compatibility with your network equipment's connector type and fiber mode before installation.
