DIGITUS Panel frontal FO Quick Lock 6x SC SX LC DX vertical gris

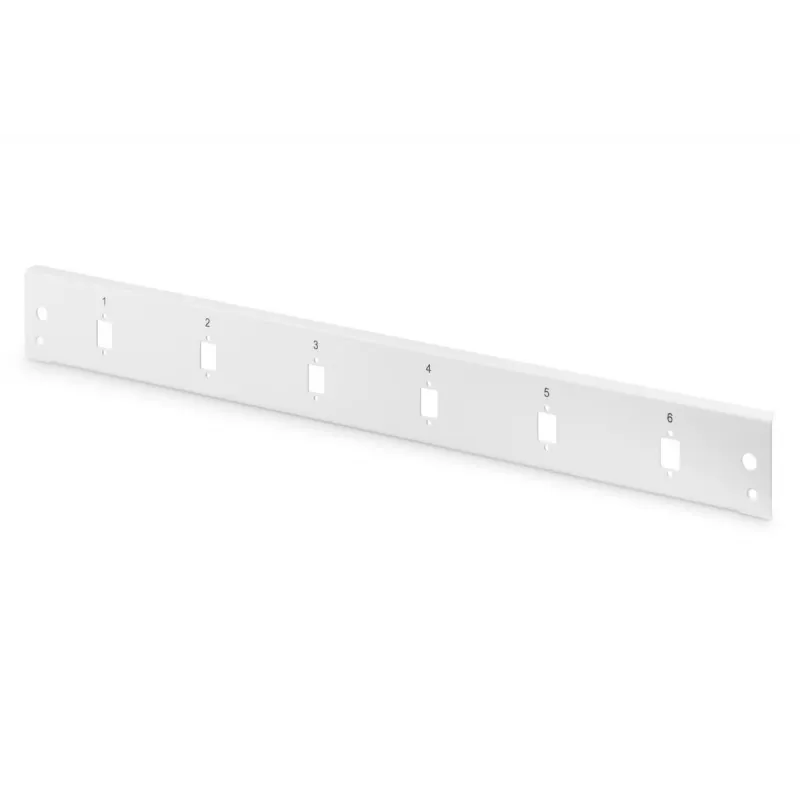

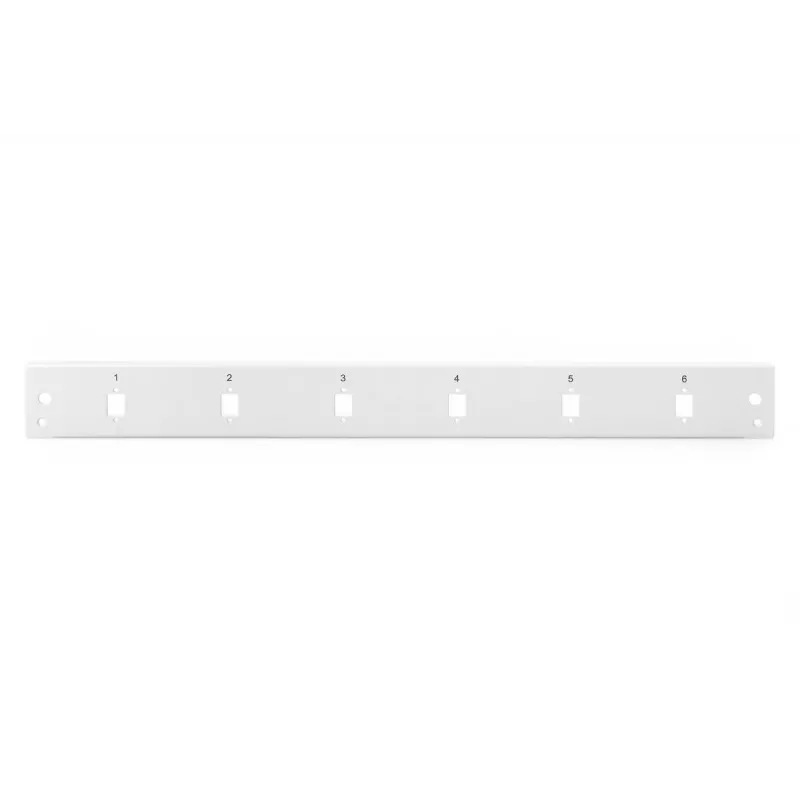

In a busy data centre, technicians need to install and maintain fibre connections quickly without compromising on organisation. The DIGITUS DN-96208-QL front panel fits into the DN-96200-QL basic housing, providing a tool-free quick lock mechanism that snaps into place in seconds. Its 1U vertical design accommodates up to six SC simplex and six LC duplex connectors, keeping fibre routing tidy and accessible.

Key specifications

• 1U rack mount front panel for fibre optic splice enclosures
• Supports up to 6x SC simplex and 6x LC duplex connectors (18 fibres total)
• Quick lock system for tool-free installation and removal
• Vertical port orientation for efficient cable management
• Dimensions (W x D x H): 430 x 15 x 44 mm
• Material: powder-coated steel, colour grey (RAL 7035)
• Compatible with DIGITUS DN-96200-QL basic housing
• Includes fixing material for secure mounting
• Operating temperature: -20°C to +70°C
• RoHS compliant

Why choose it

The quick lock design eliminates the need for screws or tools during panel installation, reducing setup time and effort. Its robust steel construction ensures long-term durability in demanding environments, while the vertical orientation maximises port density in a 1U space. The included fixing material means you have everything needed to mount the panel right out of the box.

Ideal use cases

• Rack-mounted fibre optic splice enclosures using the DN-96200-QL housing
• Fibre patching and connector management in data centres
• Telecommunications cabinets requiring organised SC simplex and LC duplex connections
• Network infrastructure upgrades where quick access to fibre ports is essential

Good to know

The panel is designed specifically for the DIGITUS DN-96200-QL basic housing, ensuring a perfect fit and reliable performance. It does not include adapters, so you can customise with your preferred SC simplex and LC duplex couplers. The grey powder-coated finish matches standard rack aesthetics and provides resistance to wear and corrosion.
