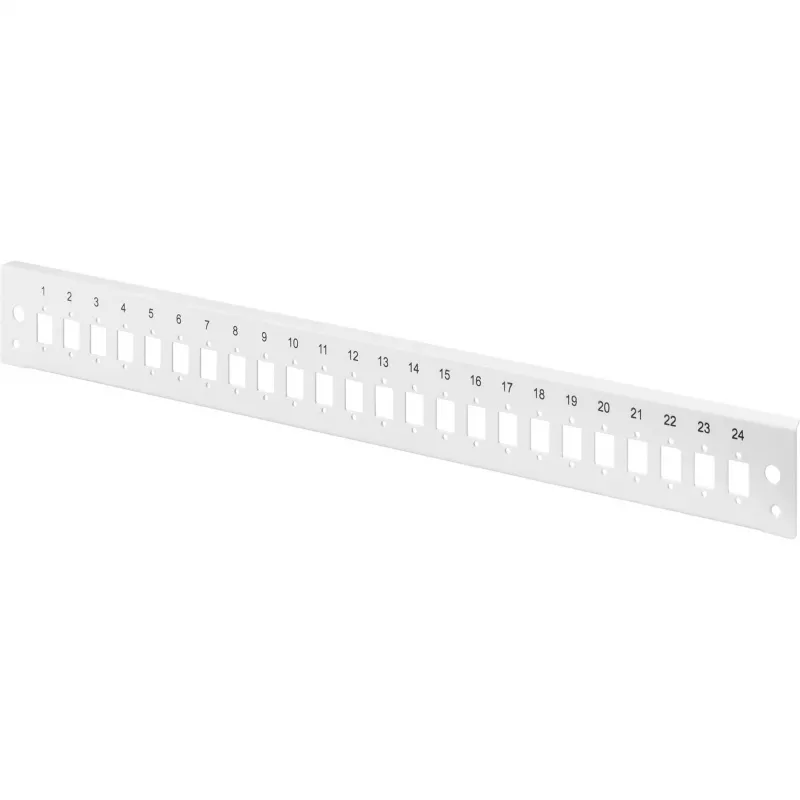

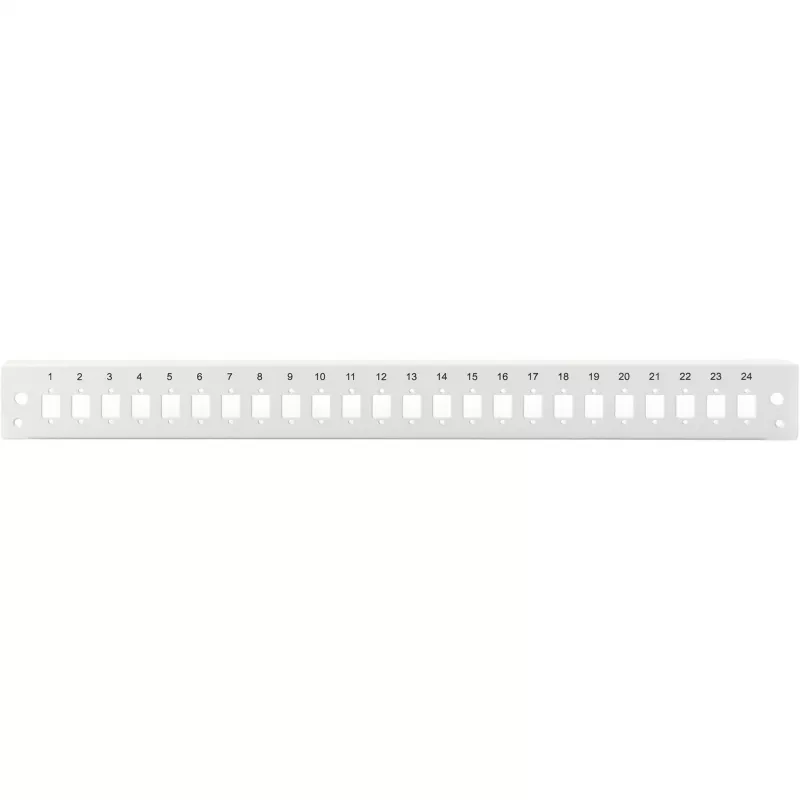

DIGITUS Panel frontal para caja de empalme de fibra óptica, cierre rápido, 24x LC dúplex, SC simplex, E2000 simplex

The DIGITUS DN-96207-QL Front Panel is a high-quality accessory designed for the DIGITUS DN-96200 Series Fiber Optic Splice Boxes. It provides a professional and organized front interface for managing fiber optic connections in data centers, telecommunications rooms, and FTTH installations. The panel features a quick-release mechanism for tool-free installation and supports up to 24 LC Duplex, SC Simplex, or E2000 Simplex adapters, offering flexibility for various fiber optic networks.

Advantages

This front panel simplifies fiber optic cable management by providing a clean, modular interface. The quick-release mounting allows for rapid installation and removal without tools, saving time during deployment and maintenance. Its robust steel construction ensures durability, while the light grey (RAL 7035) color matches standard rack equipment. The panel supports high-density fiber connections, accommodating up to 48 fibers with LC Duplex adapters.

Suitable for

• Data centers requiring organized fiber optic patching
• Telecommunications rooms for splice box front access
• FTTH networks for terminal distribution
• Any installation using DIGITUS DN-96200 Series splice boxes

Key specifications

• Product Type: Front Panel for Fiber Optic Splice Box
• Compatibility: DIGITUS DN-96200 Series
• Number of Adapter Slots: 24
• Supported Adapter Types: LC Duplex, SC Simplex, E2000 Simplex
• Maximum Fiber Capacity: 48 fibers (LC Duplex) / 24 fibers (SC/E2000 Simplex)
• Mounting: Quick Release / Snap-in, tool-free
• Material: Steel
• Color: Light Grey (RAL 7035)
• Operating Temperature: -20°C to +70°C
• Storage Temperature: -20°C to +70°C
• Operating Humidity: 10% to 80% RH (non-condensing)
• Standards: RoHS, REACH

Recommendations

For optimal performance, use this front panel with DIGITUS DN-96200 Series splice boxes and compatible LC Duplex, SC Simplex, or E2000 Simplex adapters. Ensure proper fiber handling and cleaning for best signal integrity.
