DIGITUS splitter HDMI ultra fino, 1x2, 4K/60Hz HDR, HDCP 2.2, 18 Gbps, alimentación Micro-USB

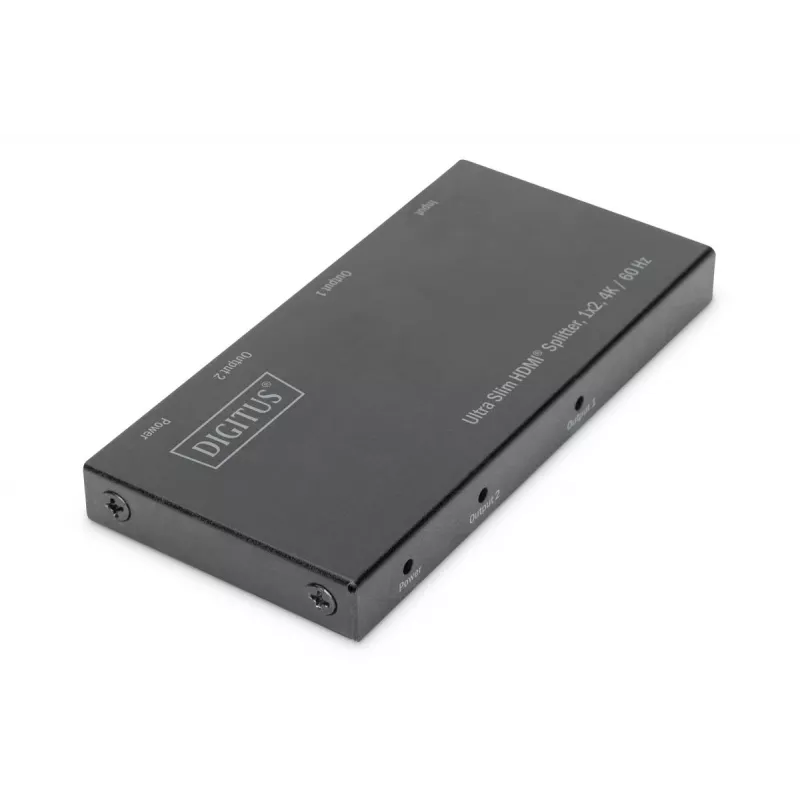

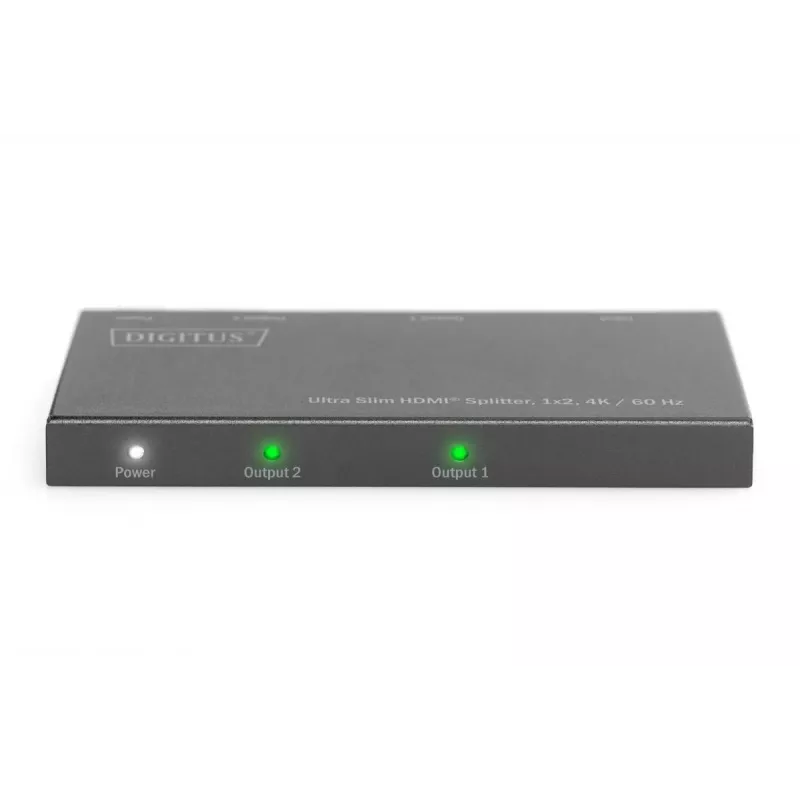

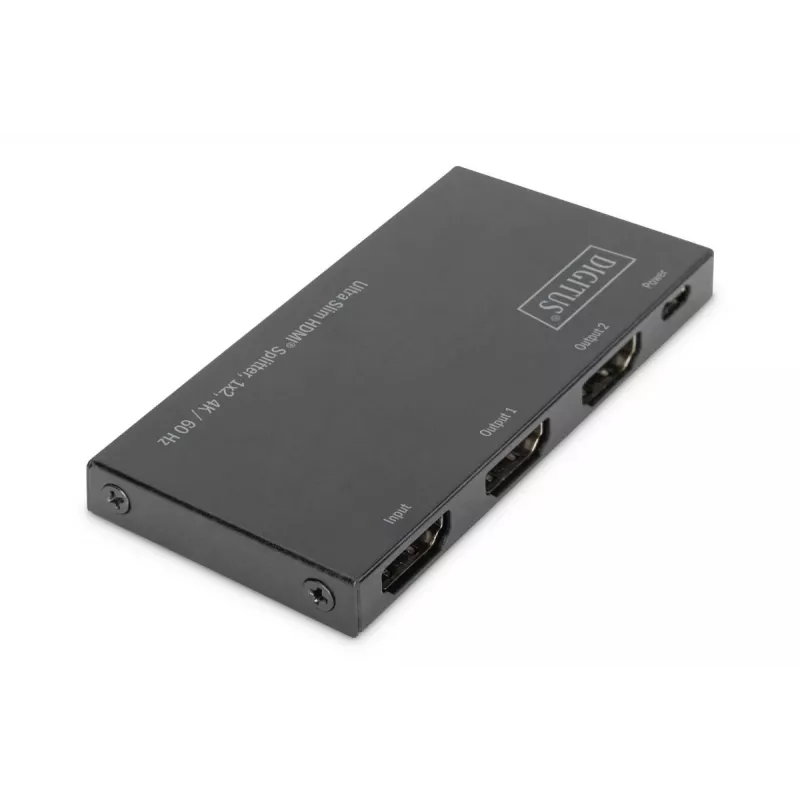

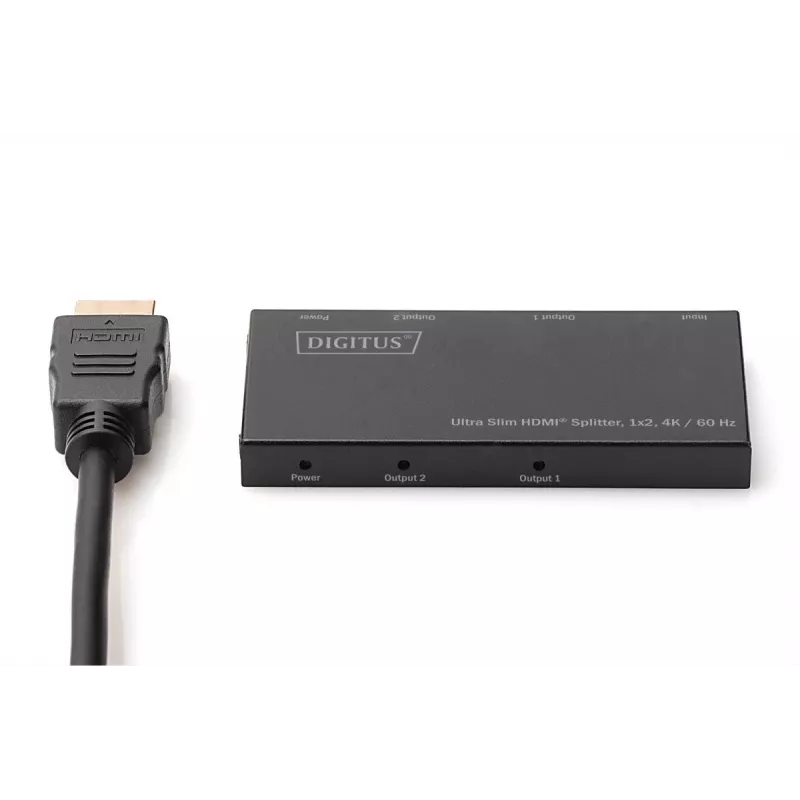

The DIGITUS Ultra Slim HDMI Splitter 1x2 (DS-45322) duplicates a single HDMI source to two displays simultaneously, supporting UHD resolutions up to 4K (4096 x 2160) at 60 Hz with full 4:4:4 chroma. The compact metal housing (approx. 83 mm × 9 mm) provides a durable, space-saving solution for connecting one HDMI device to two TVs, monitors or projectors while consuming only 2 W and requiring 5 V via Micro USB power.

Advantages

An 18 Gbps bandwidth enables smooth playback of UHD content. The splitter supports HDR, 3D and HDCP 2.2 for broad compatibility with modern sources and displays. It offers plug-and-play operation, electrostatic discharge (ESD) protection and an ultra-slim design that fits tight installation spaces. Power can be supplied from a TV’s USB port or a separate USB charger, and multiple splitters can be cascaded up to eight levels.

Suitable for

• Connecting one Blu-ray player, streaming box or PC to two TVs or monitors
• Home theater setups where the same image is shown on two screens
• Office presentations requiring identical output on two displays
• Digital signage or showroom installations with duplicated content

Key specifications

• Model: DIGITUS DS-45322
• Function: 1x2 HDMI splitter
• Maximum resolution: Up to 4K / 60 Hz (4096 x 2160, 4:4:4)
• Bandwidth: 18 Gbps
• HDCP: Supports HDCP 2.2
• HDR: Supported

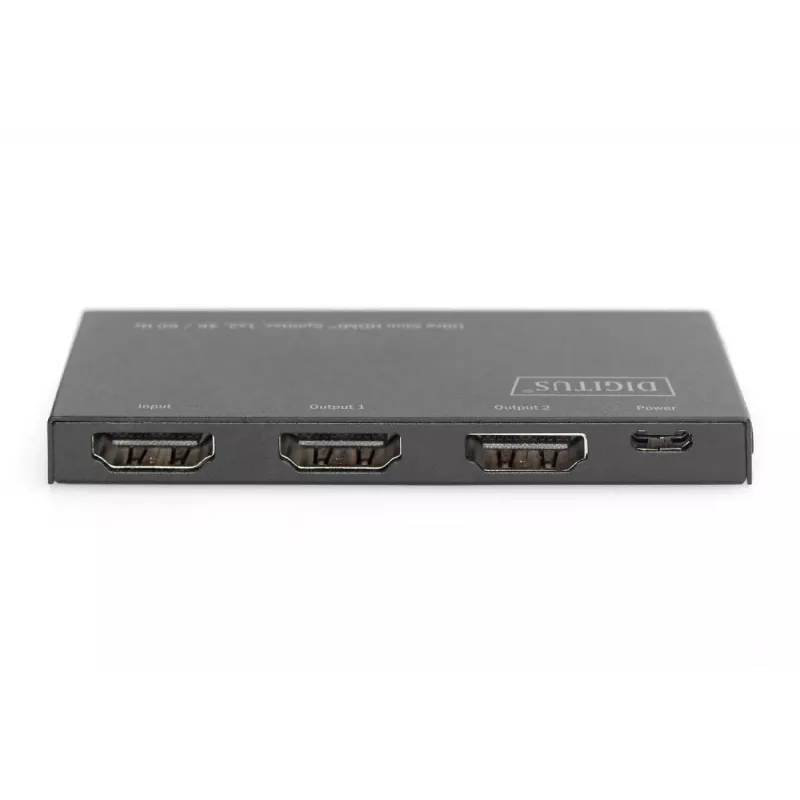

• Ports: 1 HDMI input, 2 HDMI outputs
• Power: Micro USB 5 V, 2 W consumption

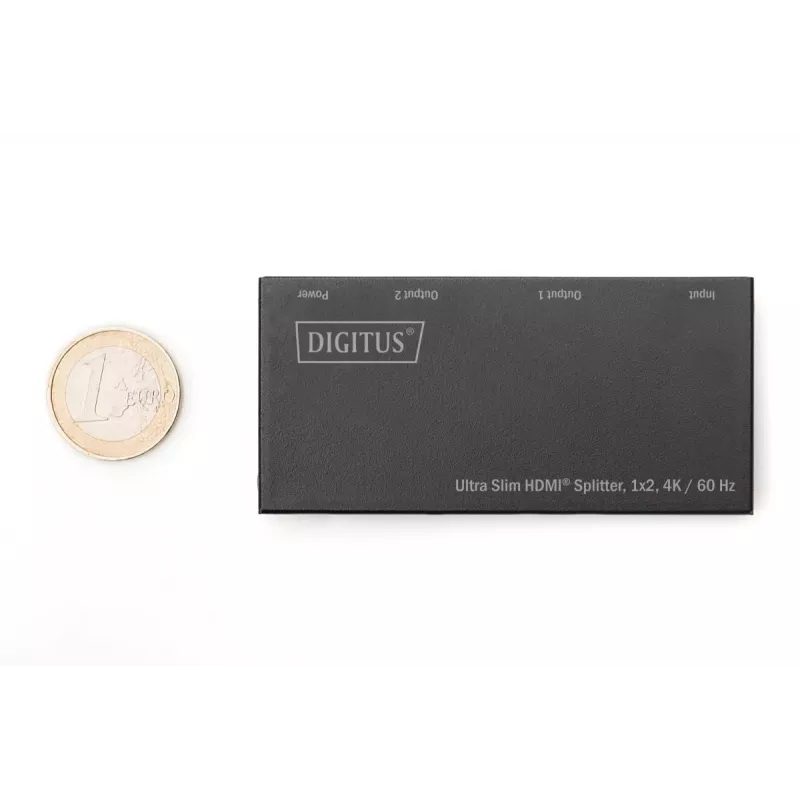

• Material and dimensions: Metal housing, approx. 83 mm × 9 mm
• Weight: 0.06 kg
• Additional: ESD protection, plug-and-play, cascades up to 8 splitters

How to use

Connect the HDMI source to the splitter’s input and attach the two displays to the HDMI outputs. Provide power to the splitter using a Micro USB cable connected to a TV USB port or a USB power adapter. Turn on the source and displays; the device is plug-and-play and will mirror the source image to both connected displays. If using multiple splitters, cascade them in series (up to eight units) following the same connection steps.

Recommendations

To ensure optimal image quality, use high-speed HDMI cables rated for 18 Gbps and verify that both displays and the source support 4K/60 Hz and HDCP 2.2. When powering from a TV USB port, confirm the port provides sufficient power; otherwise use a dedicated USB charger.
