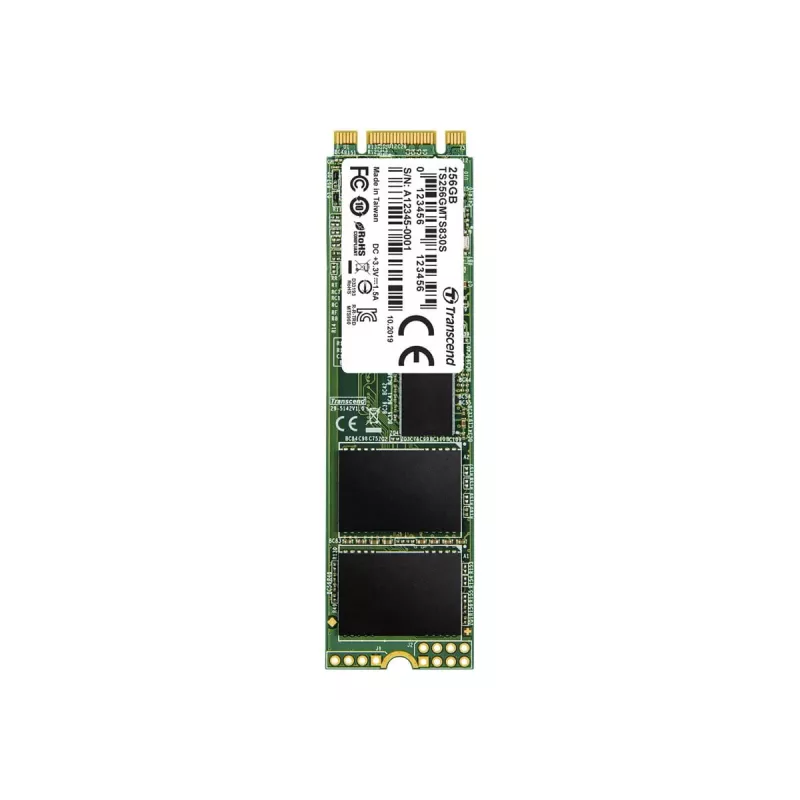

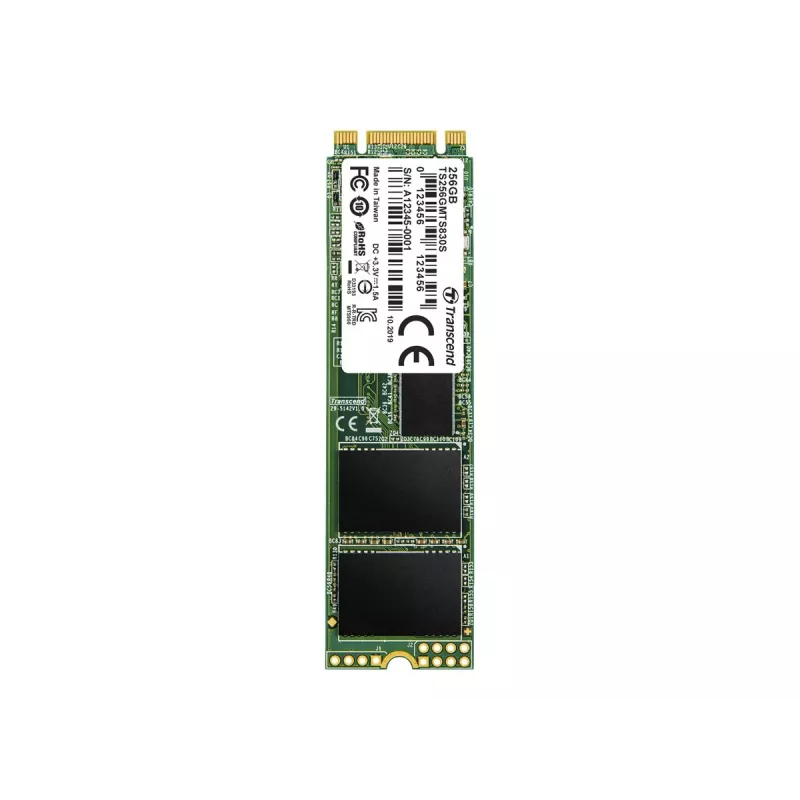

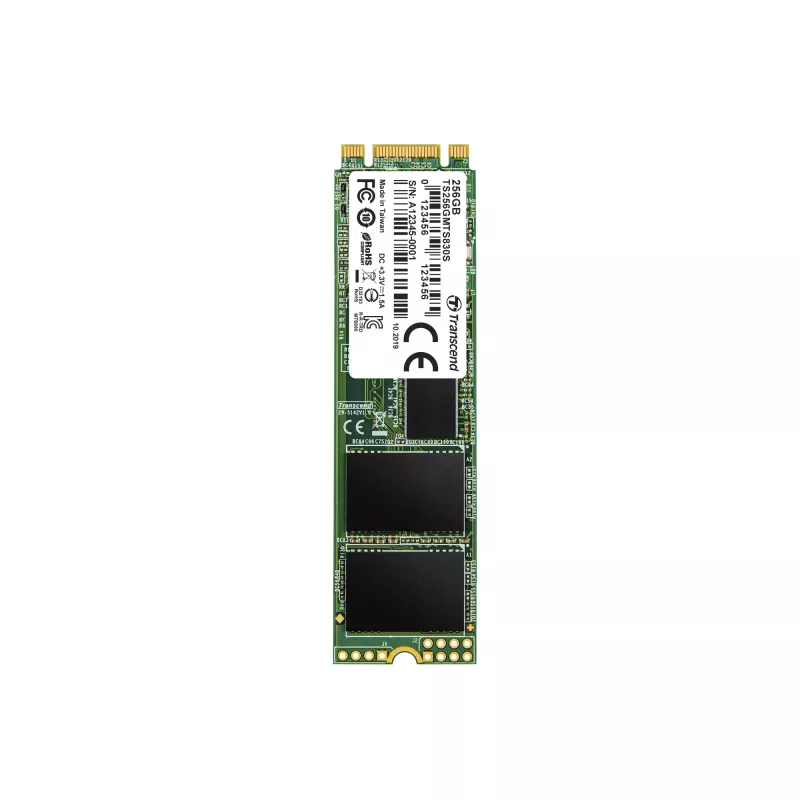

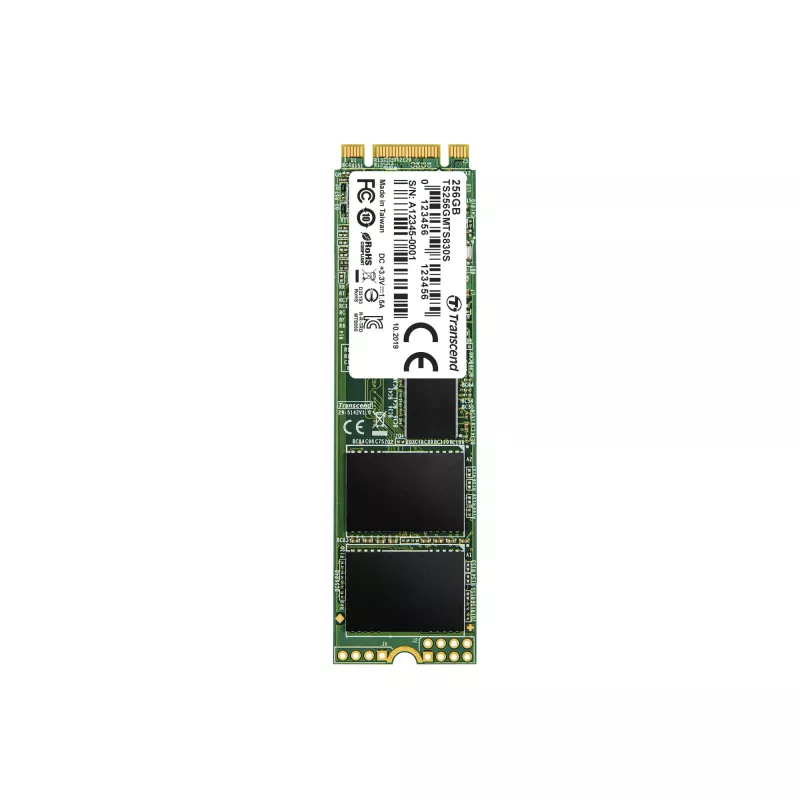

Disco SSD Transcend 256 GB M.2 6 Gbit/s TS256GMTS830S

Transcend's ultra-compact M.2 SSD 830S (SATA III 6Gb/s) is designed for small form factor devices such as Ultrabooks and thin notebooks. Using 3D NAND flash, high-quality memory chips, DDR3 DRAM cache and optimized firmware algorithms, the M.2 SSD 830S delivers reliable performance in a compact M.2 Type 2242/2280 form factor.

Advantages

3D NAND architecture increases storage density, endurance and performance compared to planar NAND. The 80 mm M.2 (2280) size suits space-constrained systems and enables easy upgrades. With SATA III 6Gb/s interface, the drive reaches sequential read/write speeds up to 560/520 MB/s and offers high 4K random IOPS for faster application loading. Built-in DDR3 DRAM cache and firmware features such as ECC, garbage collection and wear-leveling improve responsiveness and prolong drive life. Transcend provides SSD Scope software for condition monitoring and performance optimization.

Key specifications

• Interface: SATA III 6Gb/s (M.2)
• Form factor: M.2 Type 2242 / 2280 (80 mm)
• Flash type: 3D NAND
• Sequential read speed: up to 560 MB/s
• Sequential write speed: up to 520 MB/s
• 4K random performance: up to 90,000 IOPS
• DRAM cache: DDR3
• Firmware features: ECC, garbage collection, wear-leveling
• Software: Transcend SSD Scope

How to use

Install the M.2 SSD 830S into a compatible M.2 slot (2242 or 2280) on your Ultrabook or notebook, secure it with the appropriate screw, and configure the drive in the system BIOS/UEFI if required. Initialize, partition and format the drive in your operating system, then install the OS or use the SSD as a cache or data drive. Use Transcend SSD Scope to monitor health, update firmware and optimize performance.

Recommendations

Verify device compatibility with M.2 form factors and SATA III interface before purchase. Back up important data before installation and use SSD Scope periodically to check drive health and apply optimizations or firmware updates.
