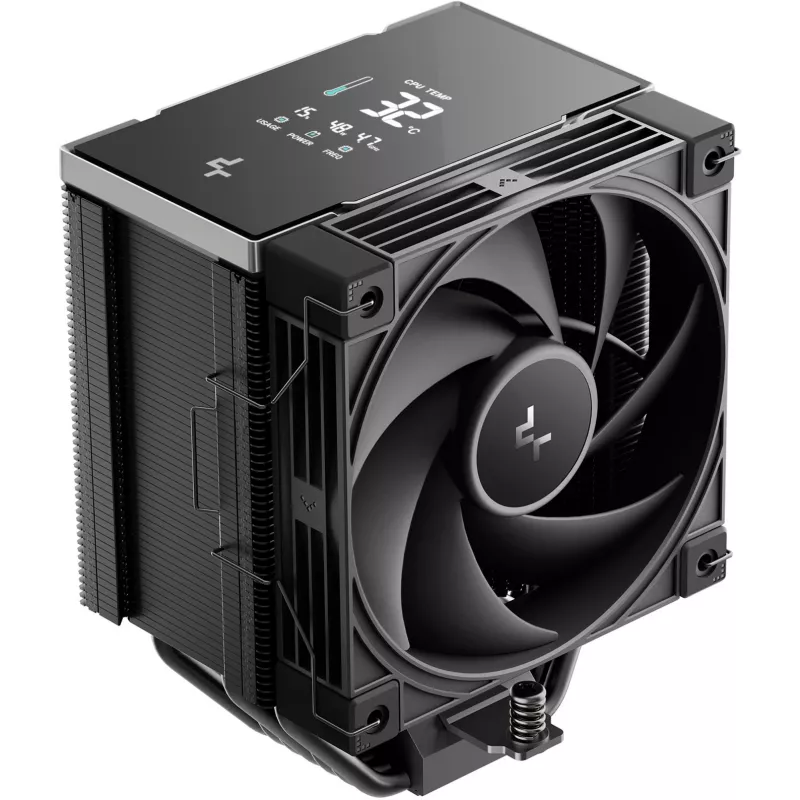

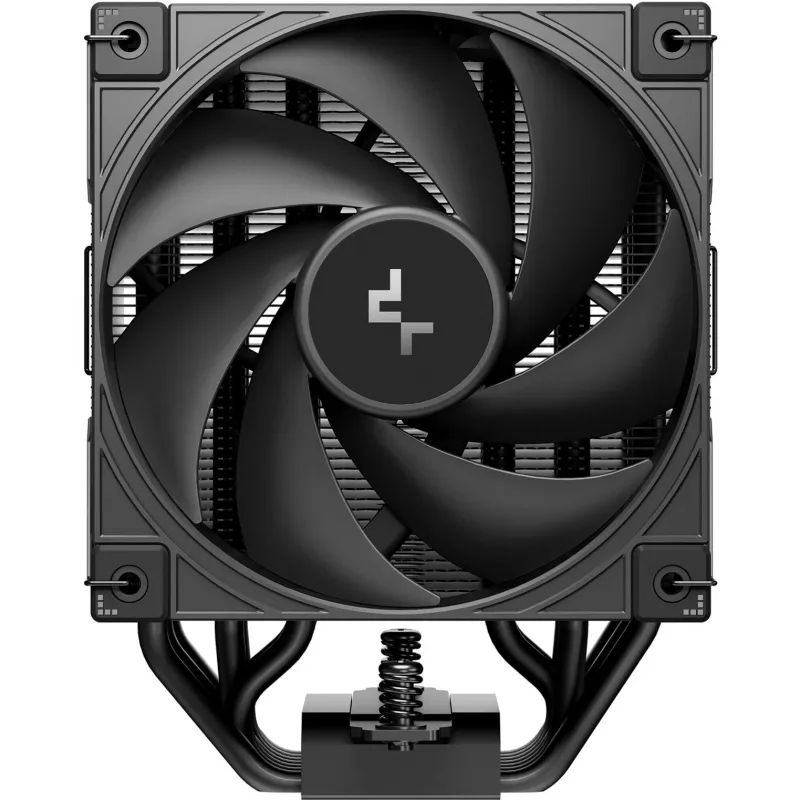

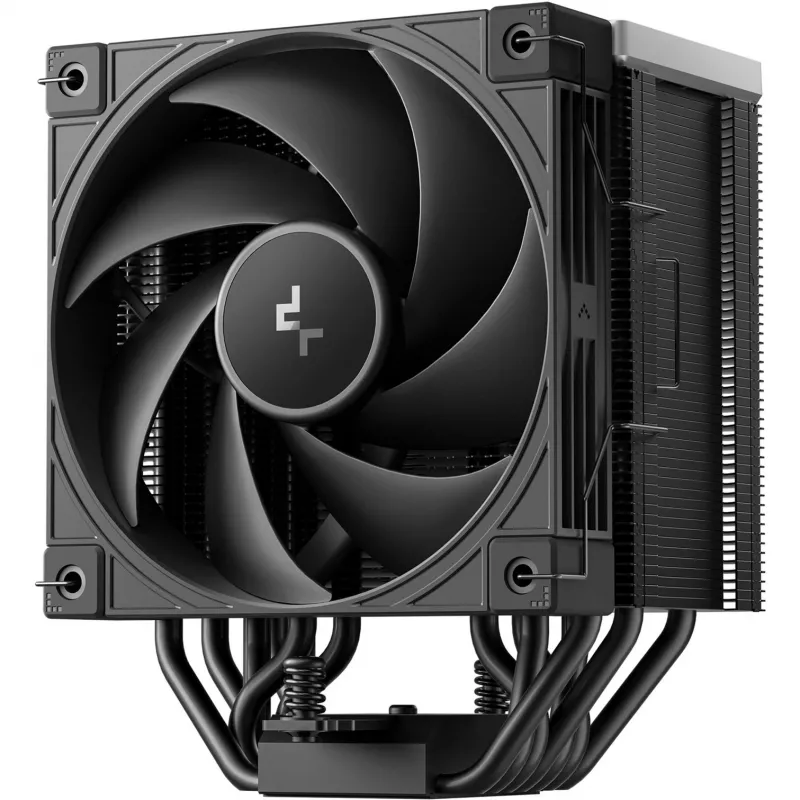

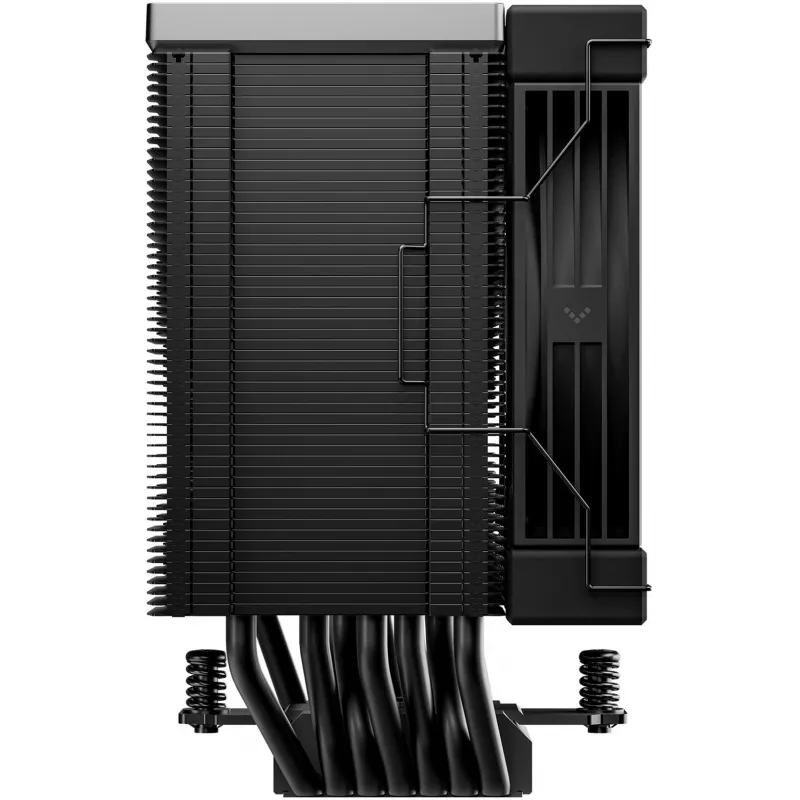

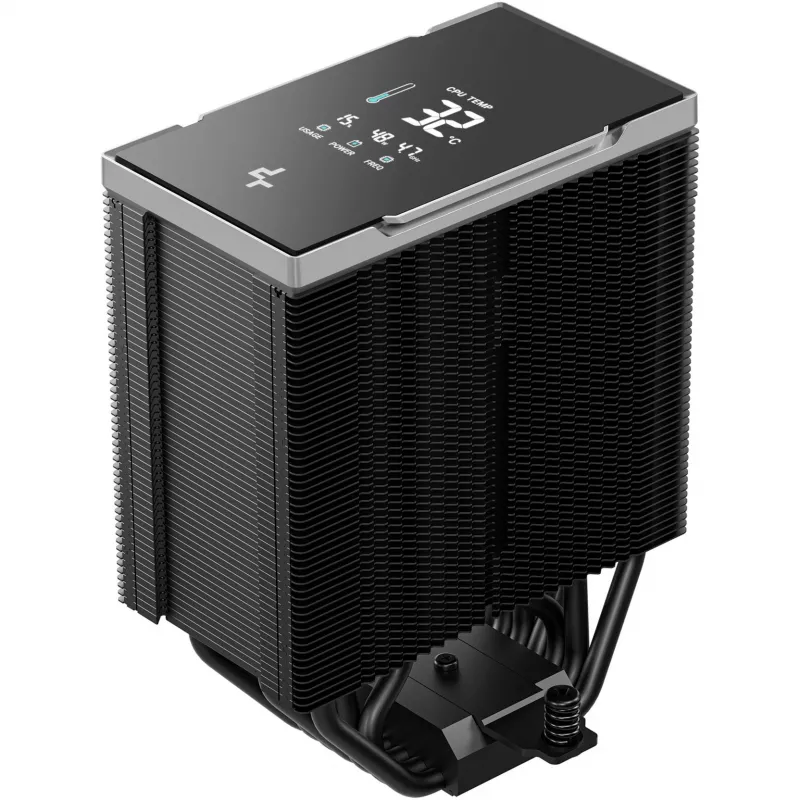

Disipador de aire DeepCool AK700 Digital NYX, ventilador de 120 mm, presión de aire máx. 5,13 mmH2O, 98×126×157 mm, negro

DeepCool AK700 Digital NYX is a compact air cooler for desktop processors featuring a 120 mm fan and a maximum air pressure of 5.13 mmH2O. With dimensions of 98 × 126 × 157 mm and a black finish, this cooler is designed to fit most tower PC layouts and provide efficient CPU cooling for gaming, content creation and everyday use.

Advantages

The cooler supports a wide range of CPU sockets including Intel LGA 1150/1151/1155/1200/1700/1851 and AMD AM4/AM5, allowing broad compatibility with modern and legacy motherboards. The 120 × 120 × 25 mm fan delivers up to 77.23 cfm airflow and supports pulse-width modulation (PWM) for automatic speed control. Its compact size and single-unit design simplify installation in typical mid-tower and small-form-factor cases.

Suitable for

• Gaming PCs with standard tower layouts
• Home and office desktops for everyday computing
• Workstations for content creation and light rendering

Key specifications

• Fan size: 120 × 120 × 25 mm
• Maximum air pressure: 5.13 mmH2O
• Airflow: 77.23 cfm
• Compatible sockets: Intel LGA 1150, 1151, 1155, 1200, 1700, 1851; AMD AM4, AM5
• Color: Black
• Unit quantity: 1 pc
• Dimensions (W×D×H): 98 × 126 × 157 mm

How to use

Mount the DeepCool AK700 Digital NYX on the CPU socket following the motherboard and cooler manufacturer instructions. Attach the mounting brackets and secure the cooler with the supplied screws, then connect the 4-pin PWM fan header to the CPU_FAN or appropriate fan connector on the motherboard. Ensure there is clearance inside the case for the cooler dimensions and that airflow direction aligns with the case ventilation scheme.

Recommendations

Use compatible thermal paste between the CPU heatspreader and the cooler base; check motherboard BIOS or software for PWM fan control to enable automatic speed adjustment based on CPU temperature.
