Disipador de aire DeepCool AN600 12 cm Aluminio Negro 61,56 cfm

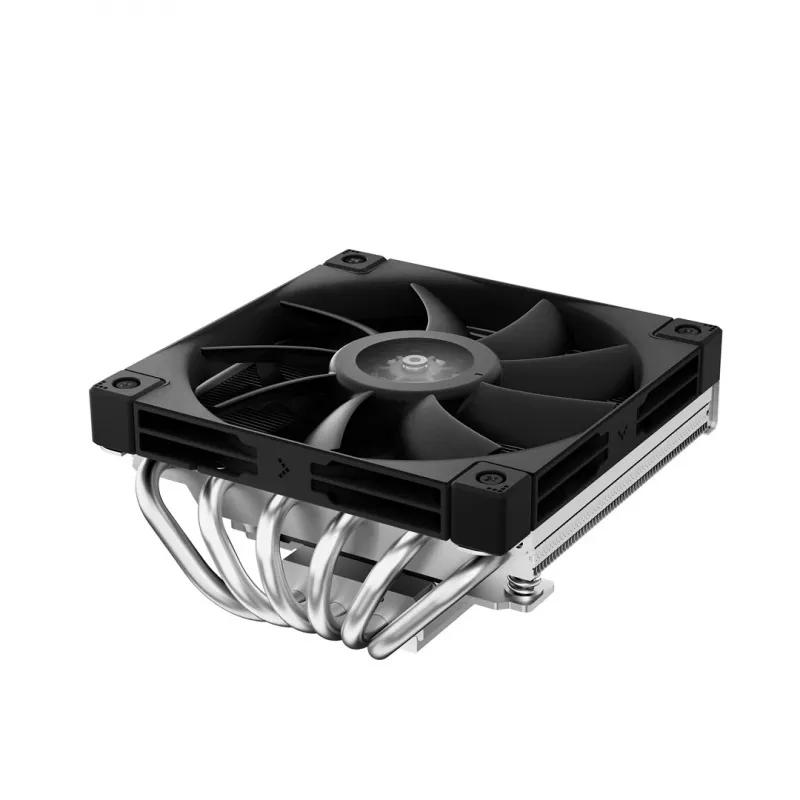

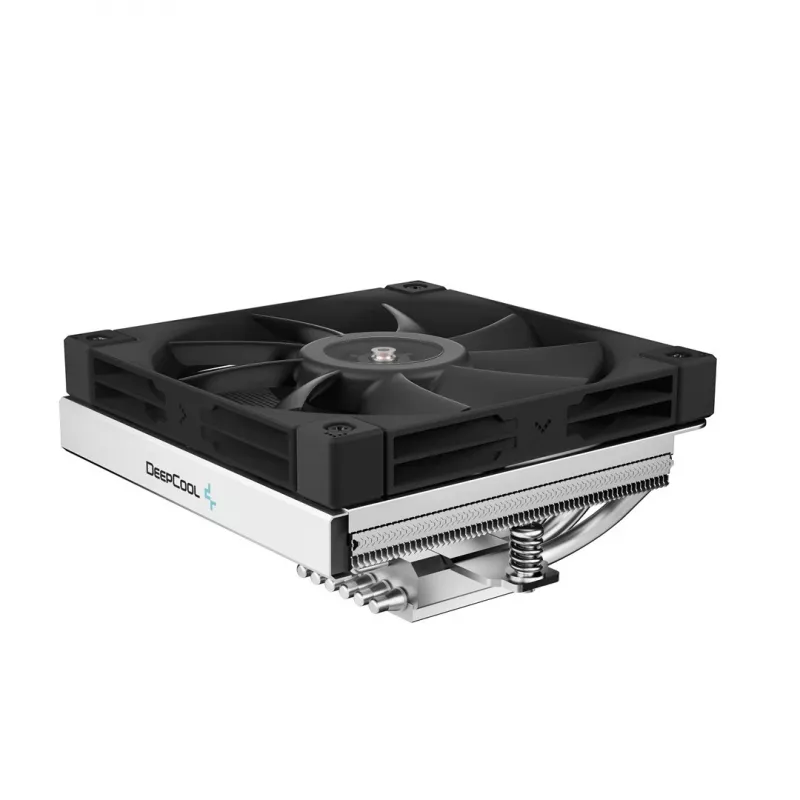

The DeepCool AN600 is a low-profile top-flow CPU air cooler that delivers up to 180 W of cooling while also directing airflow over adjacent RAM modules and VRMs. With a compact height of 67 mm, a 120 mm high-airflow PWM fan, six heatpipes and 62 aluminum fins, the AN600 is designed for small form-factor builds including ITX motherboards and supports a wide range of Intel and AMD sockets.

Advantages

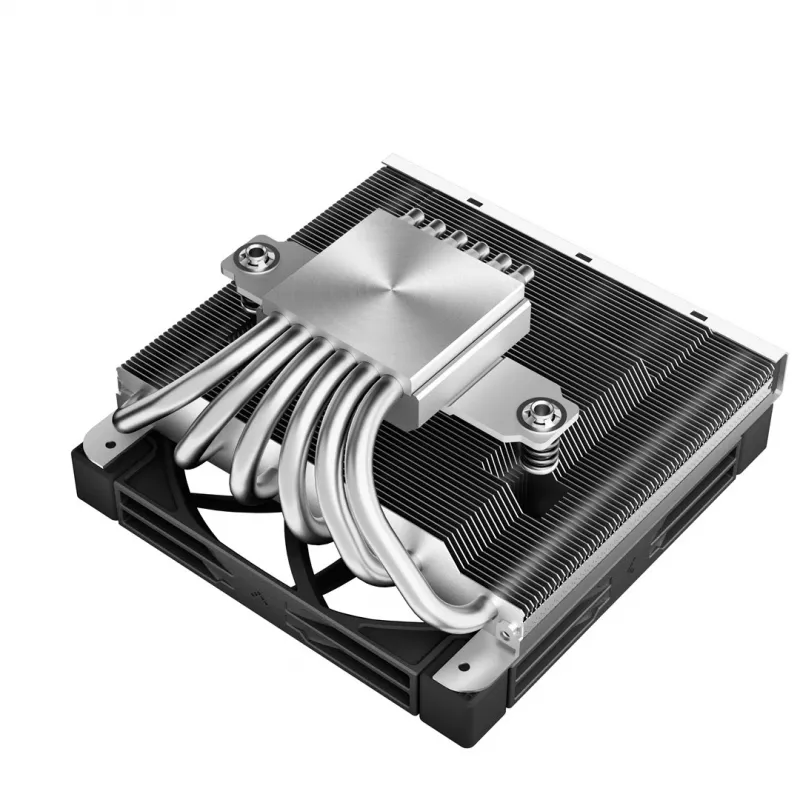

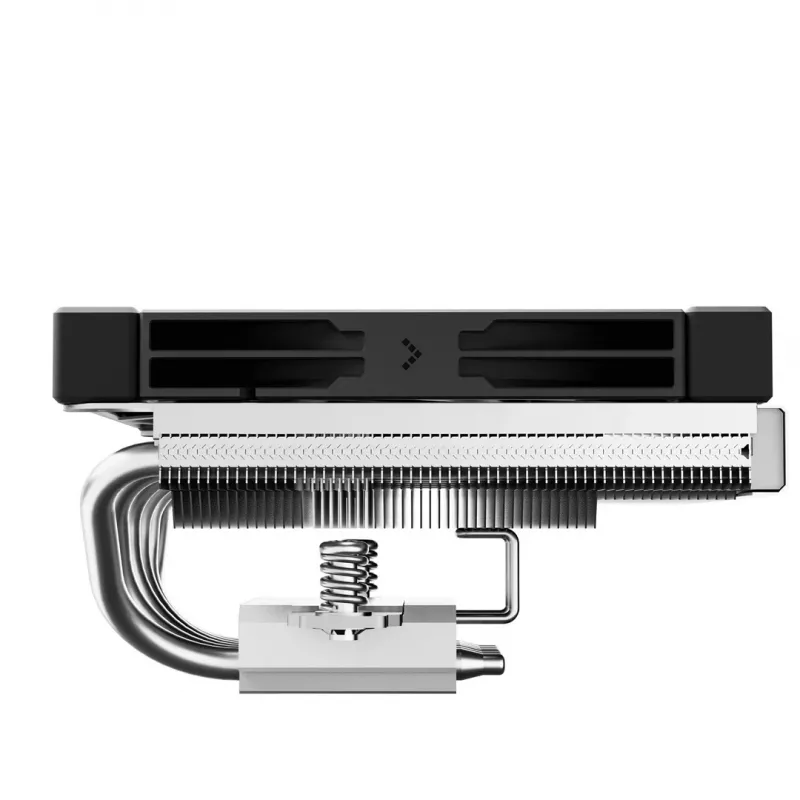

The cooler combines a slim 120 mm FDB PWM fan, a raised copper coldplate and six optimized heatpipes to provide efficient heat transfer in a short 67 mm package. Its overhanging top-flow design actively cools RAM modules up to 40 mm tall and improves VRM airflow. Noise levels are kept low (under 24.2 dB(A)) and a low-noise adapter cable is included. An all-metal backplate simplifies installation and distributes mounting pressure evenly.

Suitable for

• Small form-factor (ITX) gaming and workstation builds
• Systems where RAM and VRM cooling is required alongside CPU cooling
• Builds with height restrictions (cooler height 67 mm)
• Intel and AMD platforms listed in specifications

Key specifications

• Type: Air cooler

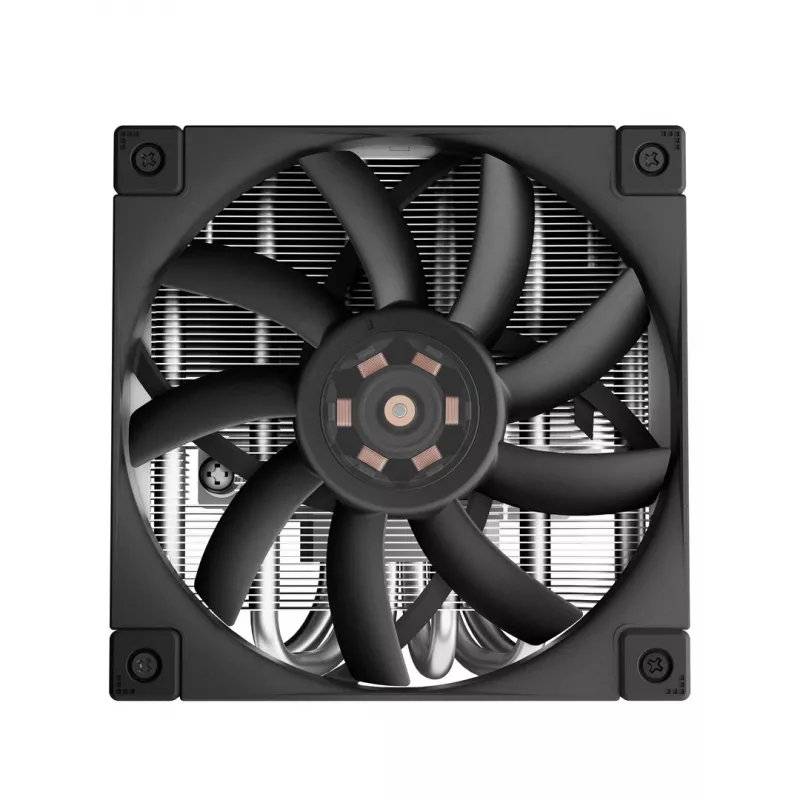

• Fan diameter: 120 mm (high-airflow, PWM, FDB)
• Dimensions (W × D × H): 122 × 120 × 67 mm
• Weight: 0.628 kg
• TDP: 180 W
• Max airflow: 61.56 cfm
• Fins: 62 aluminum fins
• Heatpipes: 6 optimized heatpipes
• Compatibility: LGA 1150/1151/1155/1200/1700, AM4, AM5
• Colour: Black / Aluminium

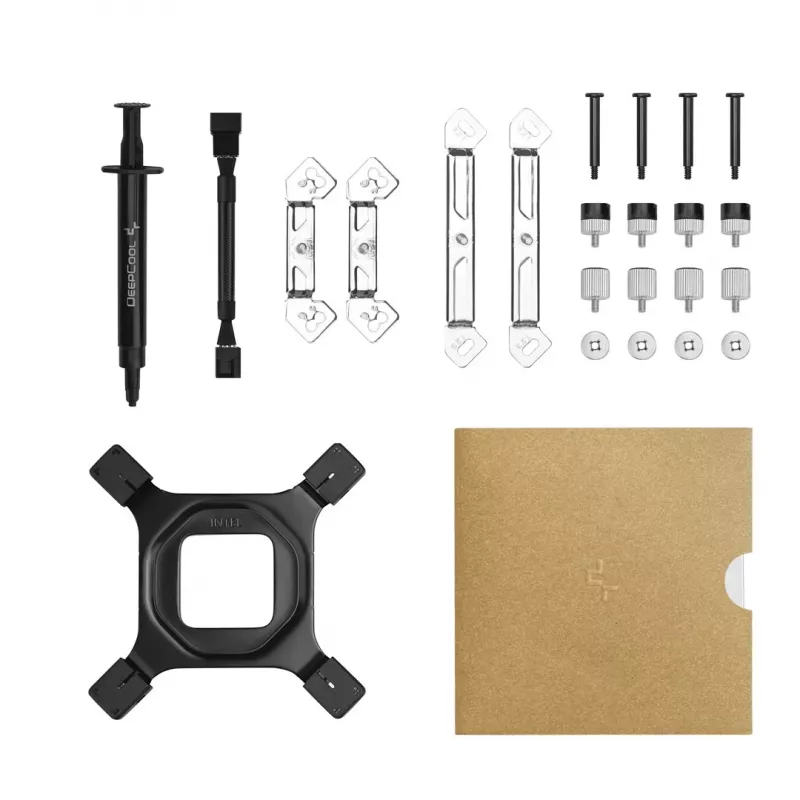

• Included: Low-noise adapter cable, all-metal backplate

How to use

Mount the AN600 to the motherboard following the included mounting instructions for your socket. Apply a thin, even layer of thermal paste to the CPU heatspreader, position the cooler over the CPU and secure it using the provided backplate and fasteners to ensure even pressure. Connect the 4-pin PWM fan header to the CPU_FAN or appropriate fan header on the motherboard and, if desired, install the low-noise adapter to reduce fan speed and noise.

Recommendations

For best results, ensure the RAM height does not exceed 40 mm where the cooler overhangs, maintain clear airflow inside the chassis and configure the motherboard fan curve for balanced cooling and noise. Verify socket compatibility from the specifications before installation.
