Disipador de aire DeepCool ASSASSIN IV VC VISION — doble ventilador 120/140 mm, 300 W TDP, 7 heatpipes, compatible con LGA115x/LGA1200/LGA1700/LGA20xx, negro

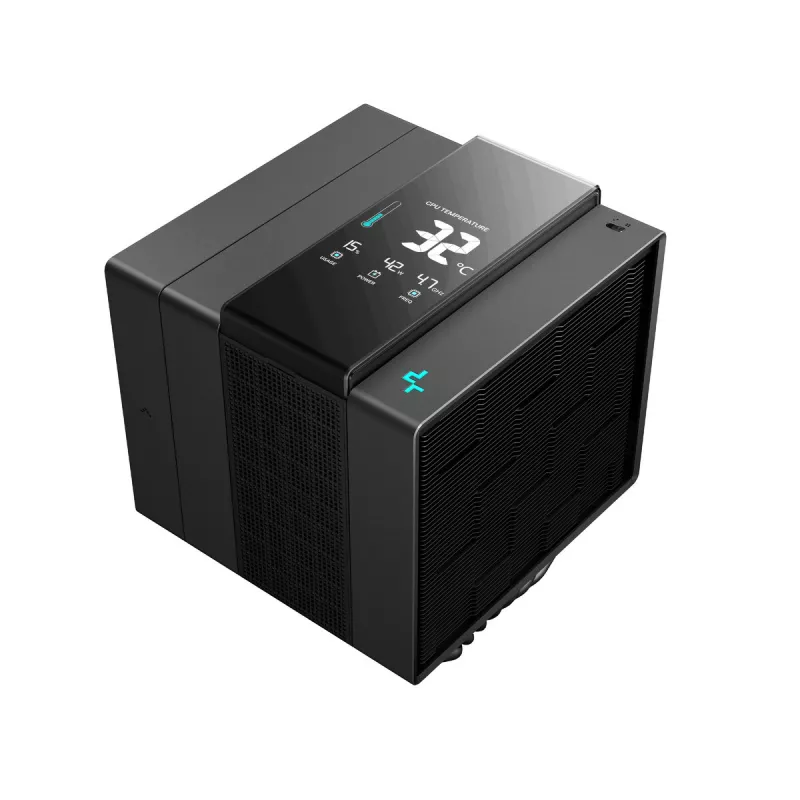

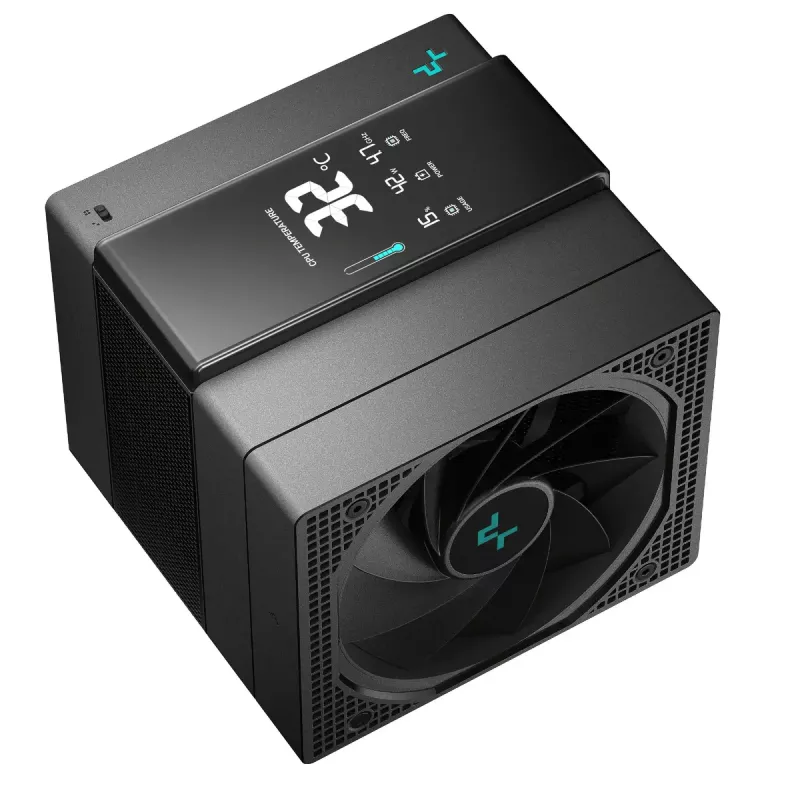

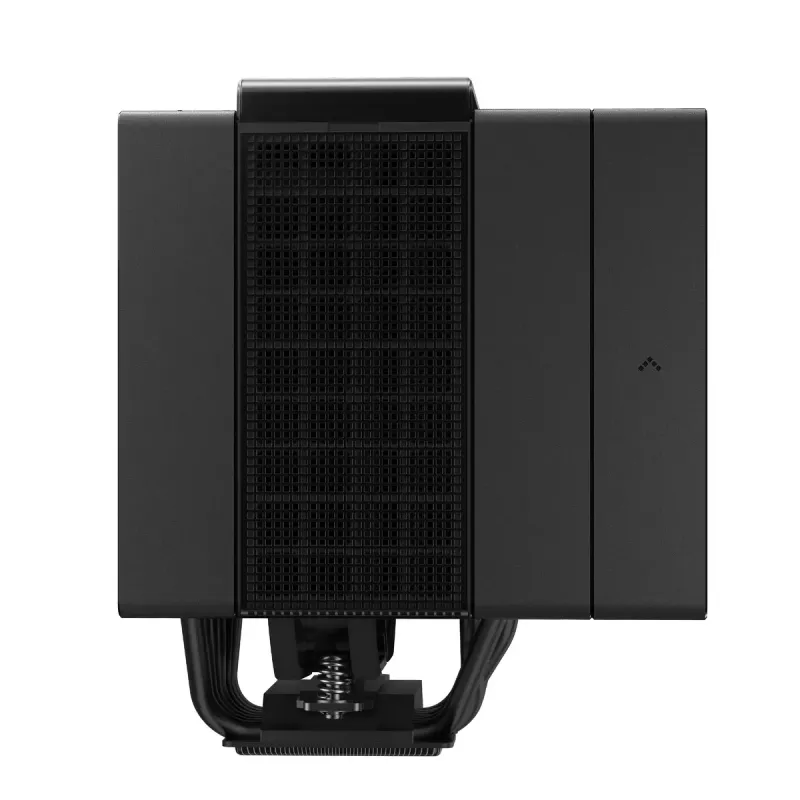

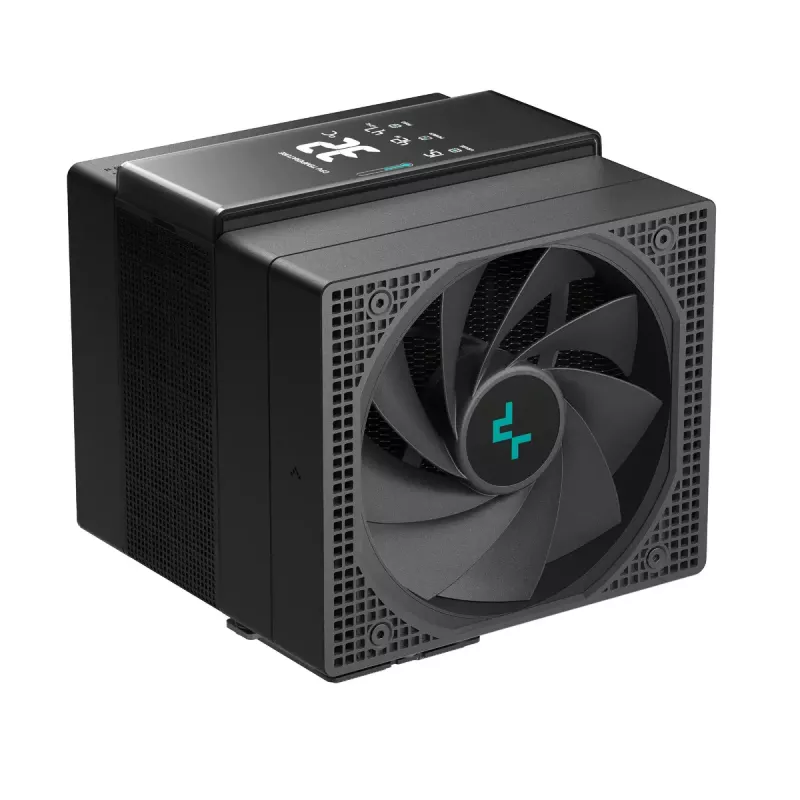

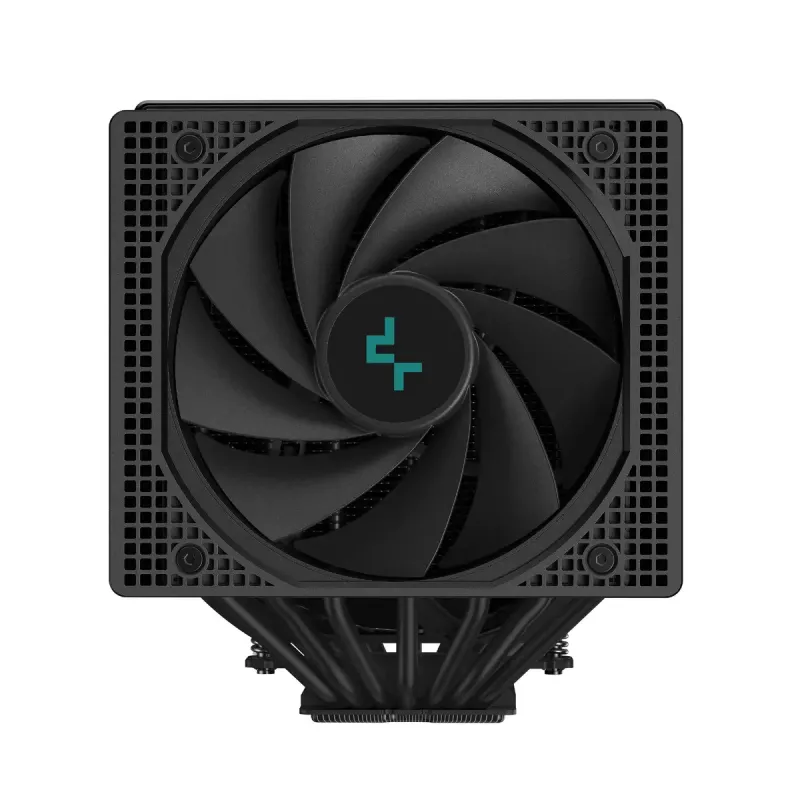

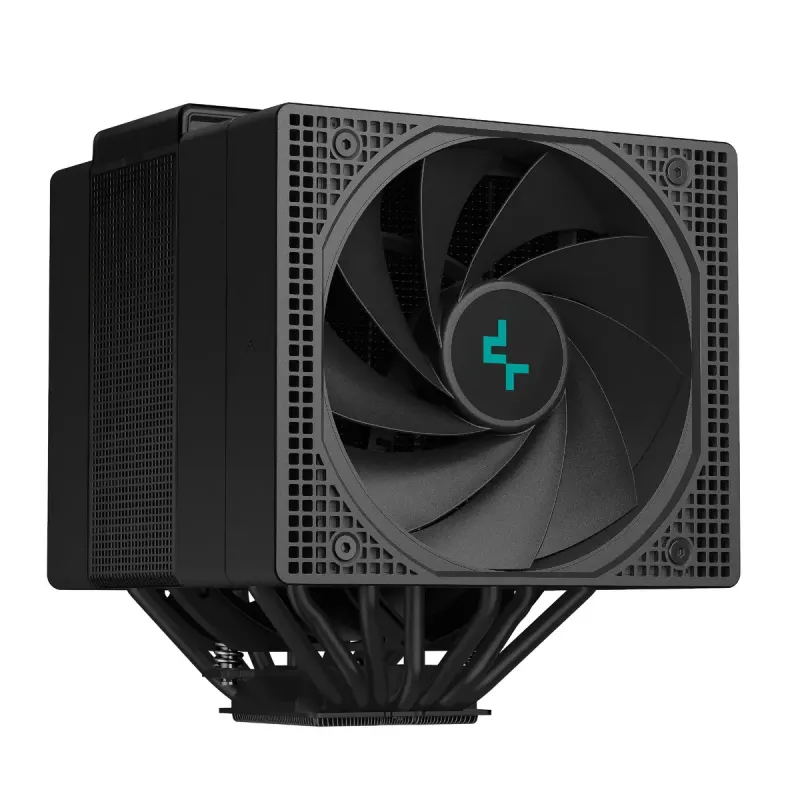

DeepCool ASSASSIN IV VC VISION is a high-performance air cooler with a vapor chamber-enhanced base and dual fin-tower design. The vapor chamber evens out heat at the coldplate and transfers it through seven heat pipes to the fin stacks, raising cooling capacity to a TDP of 300W. The cooler includes a magnetized quad-segmented digital display that shows temperature, usage, wattage and frequency and connects via an internal USB 2.0 header. A relocatable 120 mm fan and a central 140 mm fan are used to optimize airflow and provide clearance for tall RGB RAM modules. The package also includes DM9 thermal paste and comes with a 6-year limited warranty.

Advantages

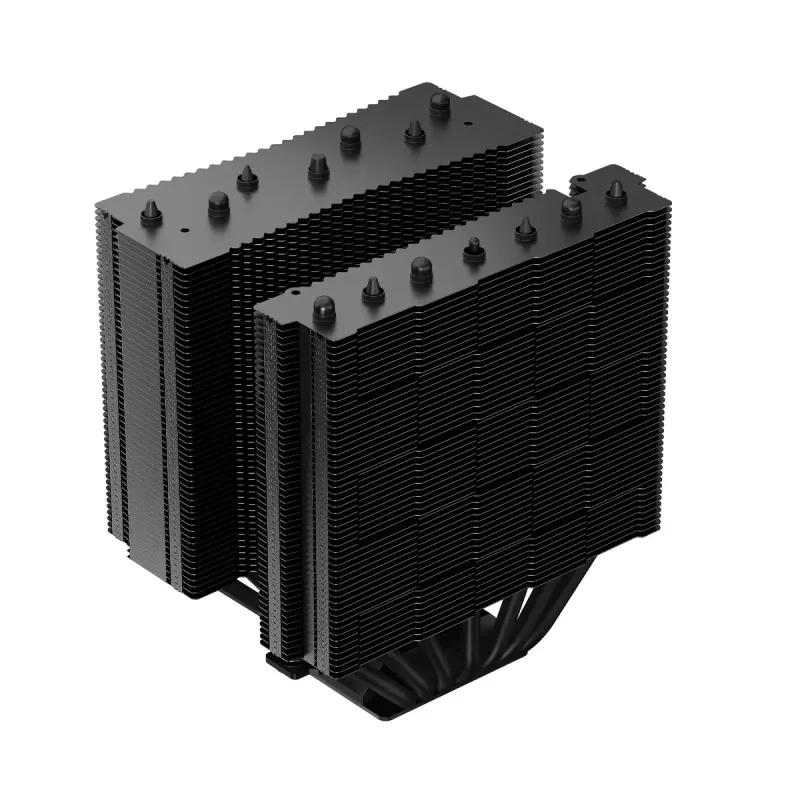

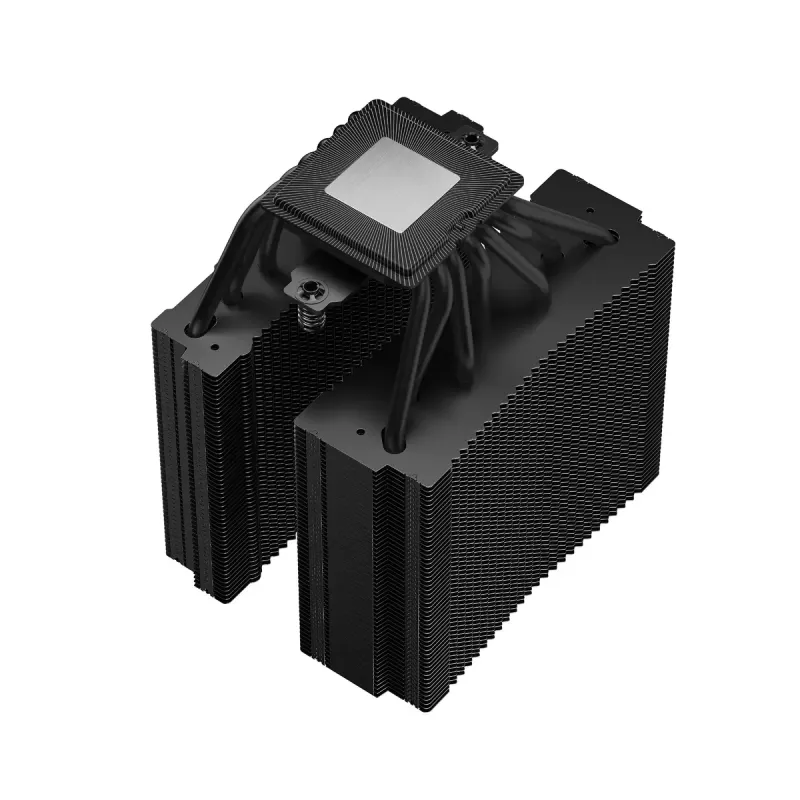

The vapor chamber at the base improves thermal conductance and supports up to 300W TDP, while seven heat pipes and two fin-array towers increase heat dissipation. The magnetized quad-segmented display provides real-time monitoring of CPU parameters and is simple to install. Two selectable noise profiles (quiet and performance) allow a balance between low noise and maximum cooling. High-quality true FDB bearings and three-phase, six-slot, four-pole fan motors reduce noise and power consumption. A lower airflow channel created by the center fan adds extra cooling to nearby VRMs.

Key specifications

• Type: Processor air cooler with vapor chamber and dual fin towers
• Cooling capacity: up to 300 W TDP

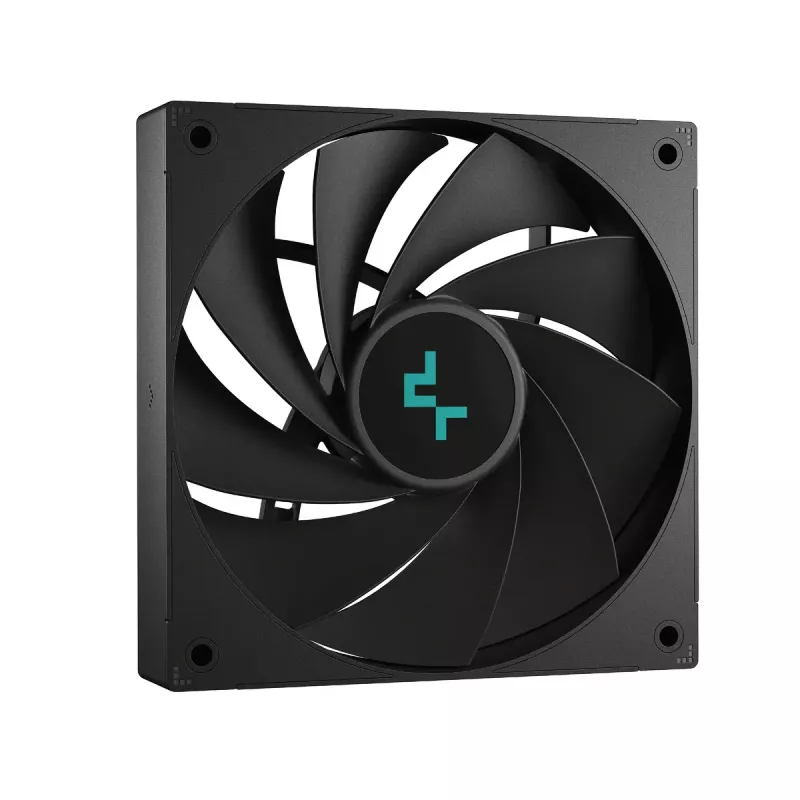

• Fans: included 120 mm (relocatable) and 140 mm center fan; 120/140 mm 1800 RPM (spec sheet reference)
• Bearing: Fluid Dynamic Bearing (FDB)
• Airflow / static pressure: 61.25 CFM / 3.76 mmH2O
• PWM support: Yes
• Fan dimensions: 140 x 140 x 25 mm (for 140 mm fan)
• Color: Black
• Compatibility: Wide range of modern CPU sockets including Intel LGA 1700, LGA 1150/1151/1155/1200/1851/2011/2011-v3/2066 and AMD AM5

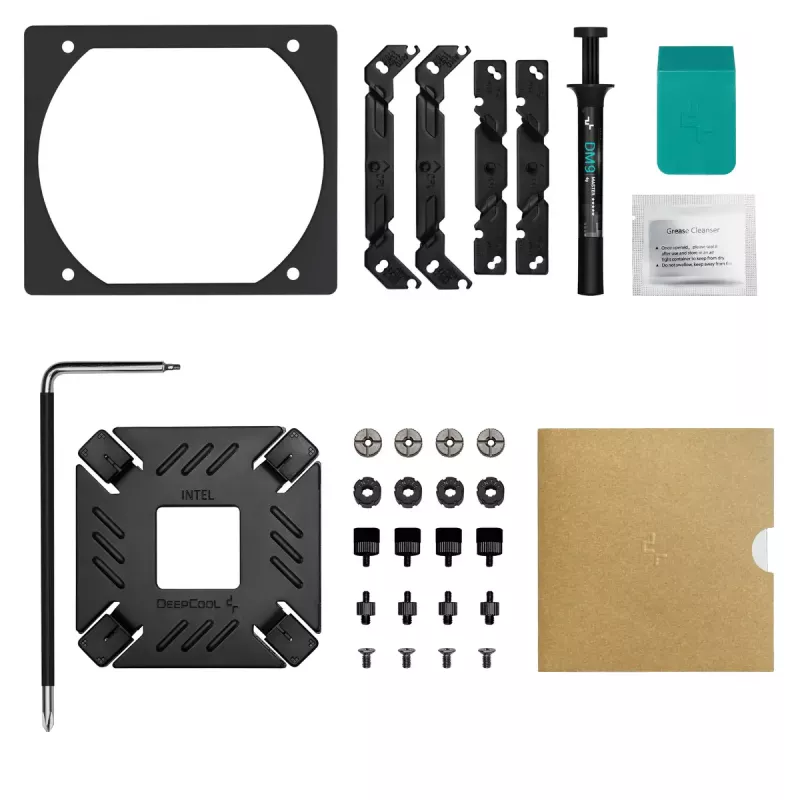

• Accessories: DM9 thermal paste included
• Warranty: 6 years limited

How to use

Mount the ASSASSIN IV VC VISION following the included installation guide for your CPU socket, ensuring the cooler’s 172 mm height fits in your case. Attach the mounting bracket and coldplate to the CPU with the supplied hardware and apply the included DM9 thermal paste according to the paste instructions. Secure the fin towers and position the relocatable 120 mm fan as needed to provide RAM clearance. Connect the display to an available internal USB 2.0 header and plug the fan(s) to the motherboard PWM headers. Use the slide switch to select quiet or performance mode and configure the display and monitoring settings via the DeepCool software.

Recommendations

Ensure your chassis has at least 172 mm of CPU cooler clearance before installation. Use the relocatable fan to avoid interference with tall memory modules. For accurate readings and alerts, connect the display to the motherboard via an internal USB 2.0 header and install the DeepCool software.
