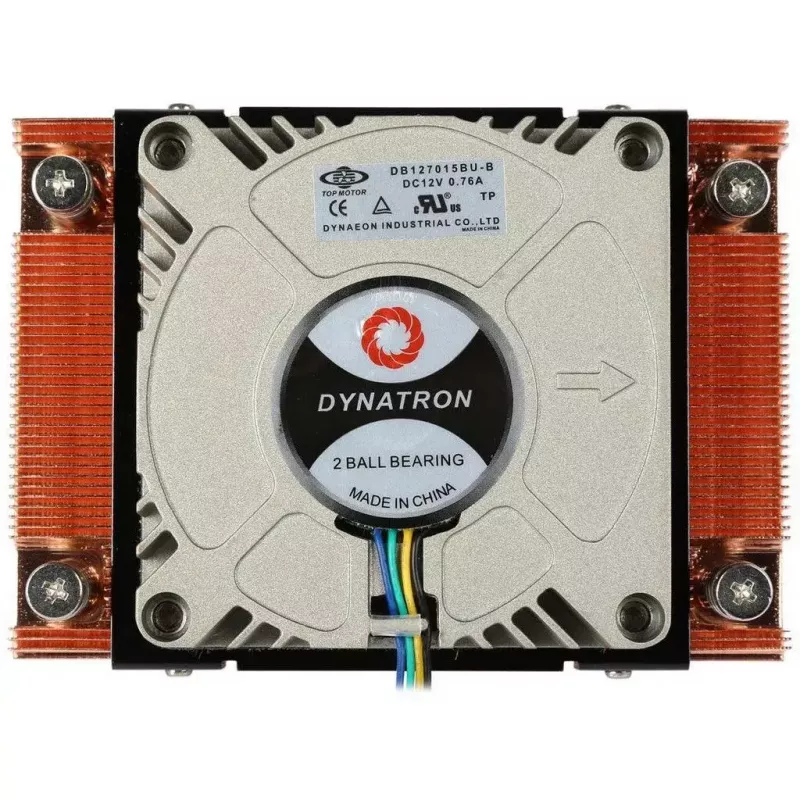

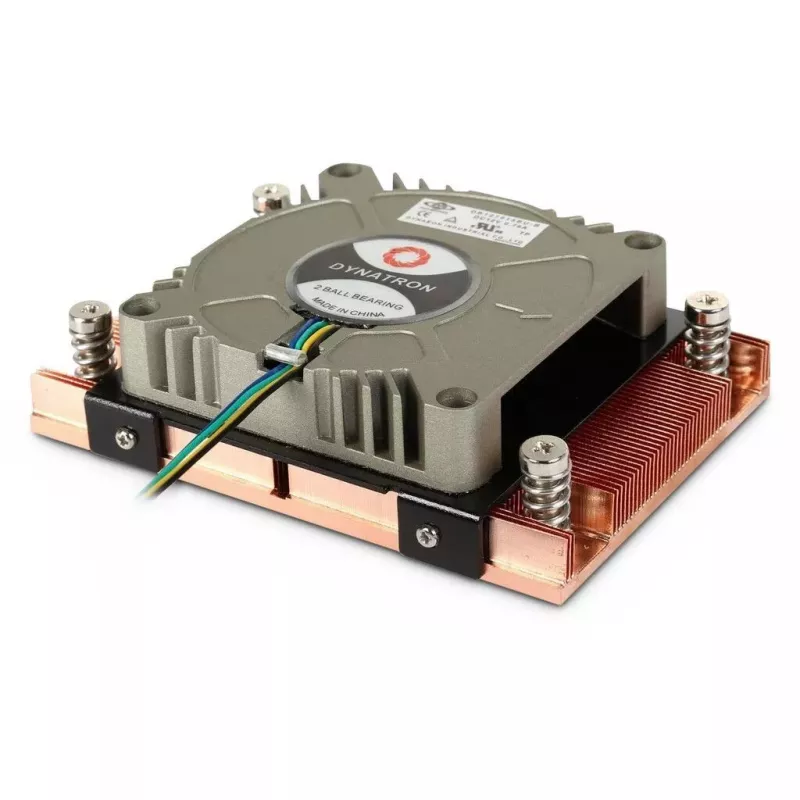

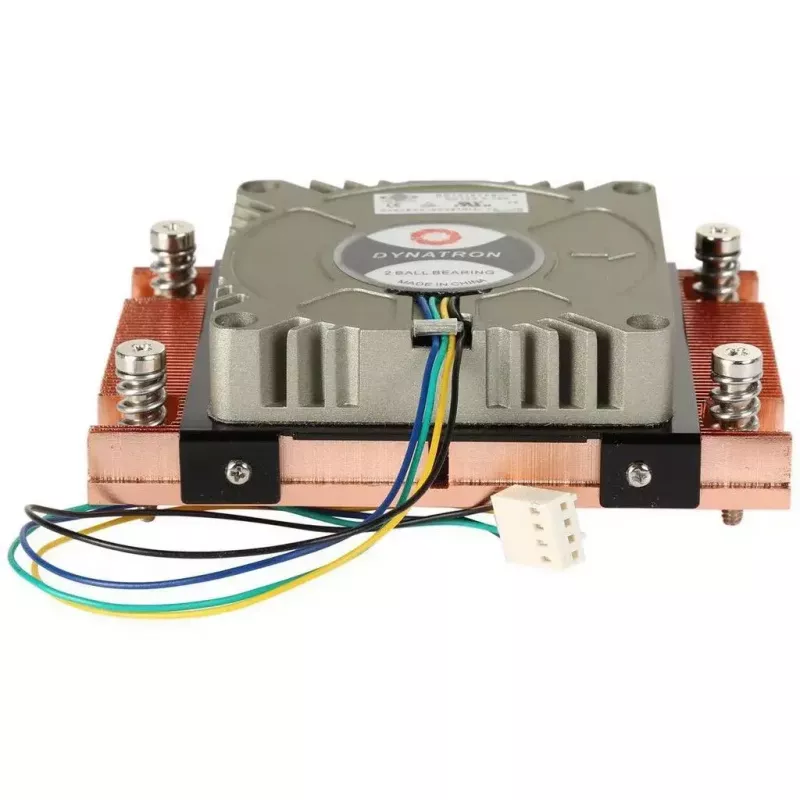

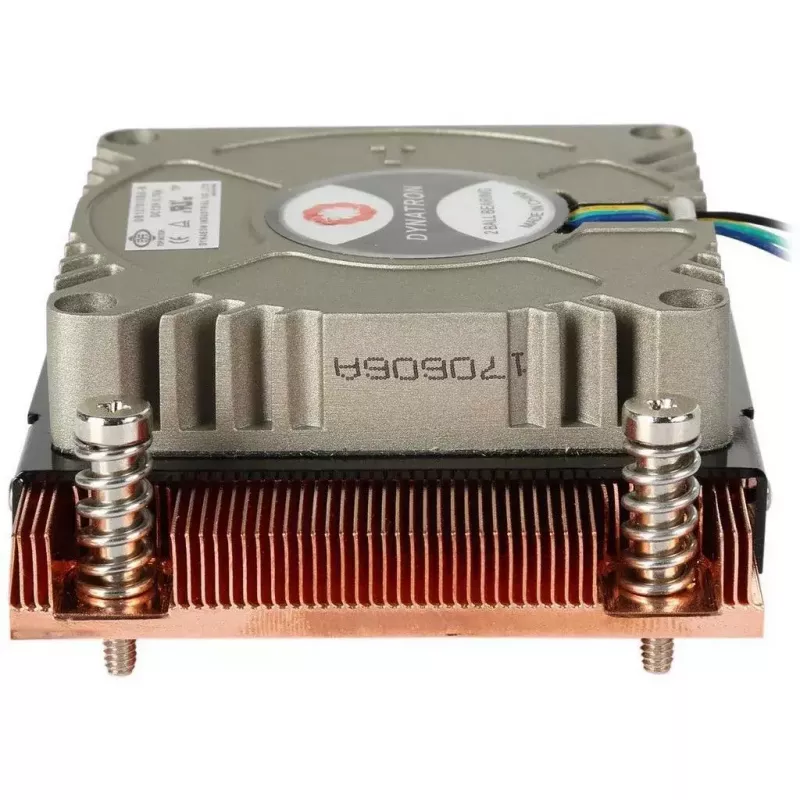

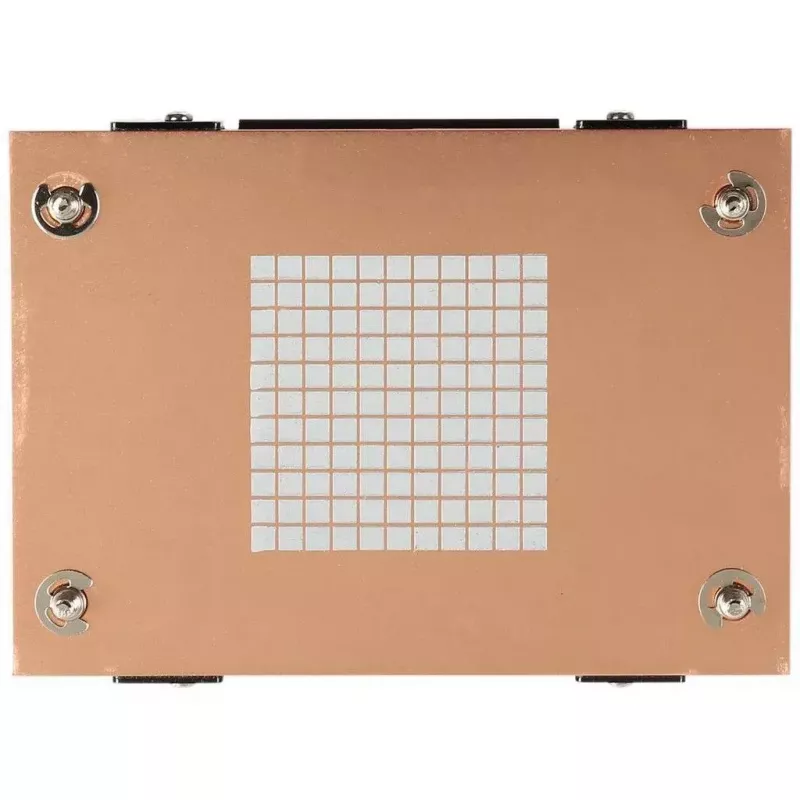

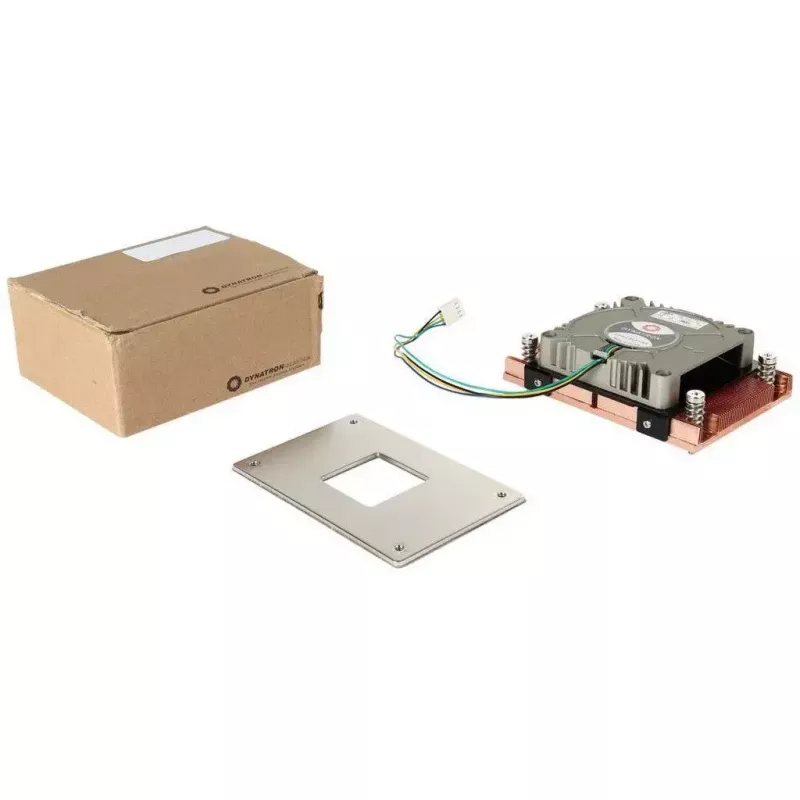

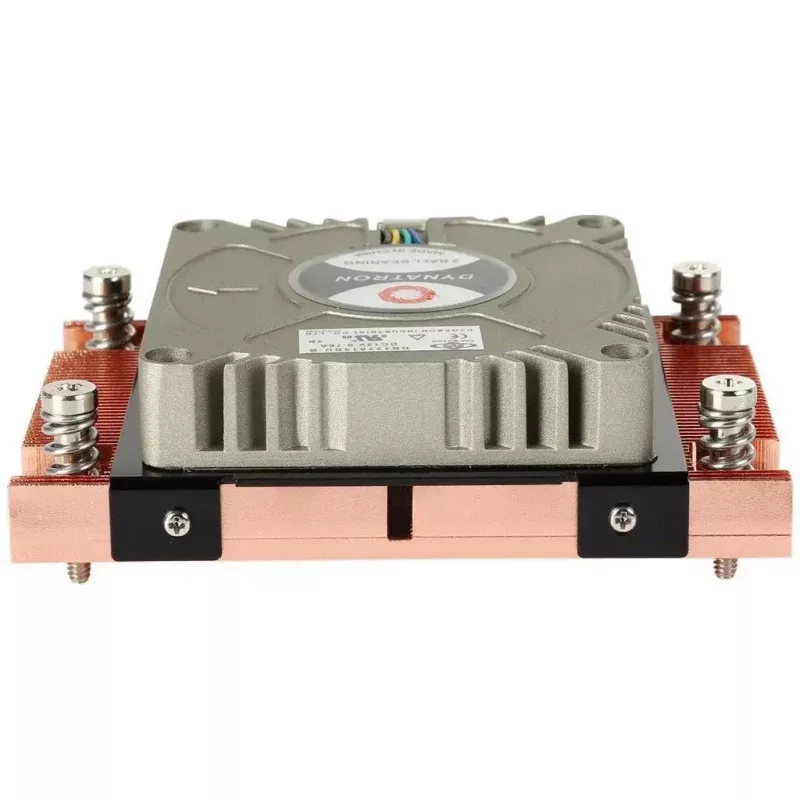

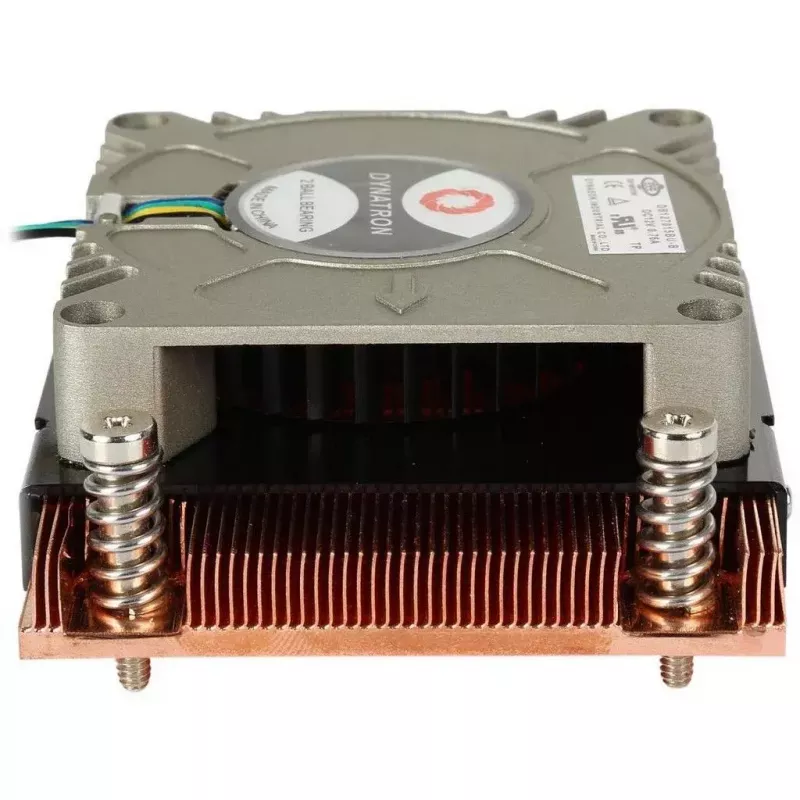

Disipador de aire Dynatron A-18 procesador 7 cm cobre gris

The Dynatron A-18 is an air cooler for processors that meets AMD standards. It combines a compact heatsink with a 70 mm fan to provide targeted cooling for desktop CPUs, supporting Socket AM4 and a thermal design power (TDP) rating of 95 W. The unit has a grey and copper appearance and measures 106 mm × 76 mm × 27.5 mm with a weight of 0.45 kg.

Advantages

The cooler uses a 70 mm fan with an adjustable rotational speed range from 1100 to 6000 RPM to balance airflow and noise. Its fan is mounted on a durable ball-bearing system for extended operational life. Copper elements improve heat transfer while the compact footprint makes the cooler suitable for small form-factor builds.

Suitable for

• Cooling AMD Socket AM4 processors
• Small to mid‑tower PC builds with limited clearance
• Systems requiring up to 95 W TDP cooling

Key specifications

• Type: Air cooler
• Fan diameter: 70 mm
• Fan speed: 1100–6000 RPM
• Air pressure: 1.25–50.46 mmH2O
• Bearing type: Ball bearing
• Dimensions (W×D×H): 106 × 76 × 27.5 mm
• Weight: 0.45 kg
• TDP: 95 W
• Supported sockets: Socket AM4
• Colour: Grey, Copper

How to use

Install the Dynatron A-18 on a compatible Socket AM4 motherboard following the manufacturer’s mounting instructions. Apply an appropriate amount of thermal paste to the CPU heatspreader, position the cooler, and secure it with the supplied retention hardware. Connect the fan to the motherboard fan header to enable speed control and monitor temperatures in the BIOS or with system utilities.

Recommendations

For reliable performance, ensure adequate case airflow and keep the fan and heatsink free of dust. Use the cooler in systems with CPU power draw up to 95 W to maintain safe operating temperatures.
