Disipador de aire para procesador Cooler Master V4 Alpha 3DHP, ventilador de 120 mm, compatible con LGA1700/AM5, negro

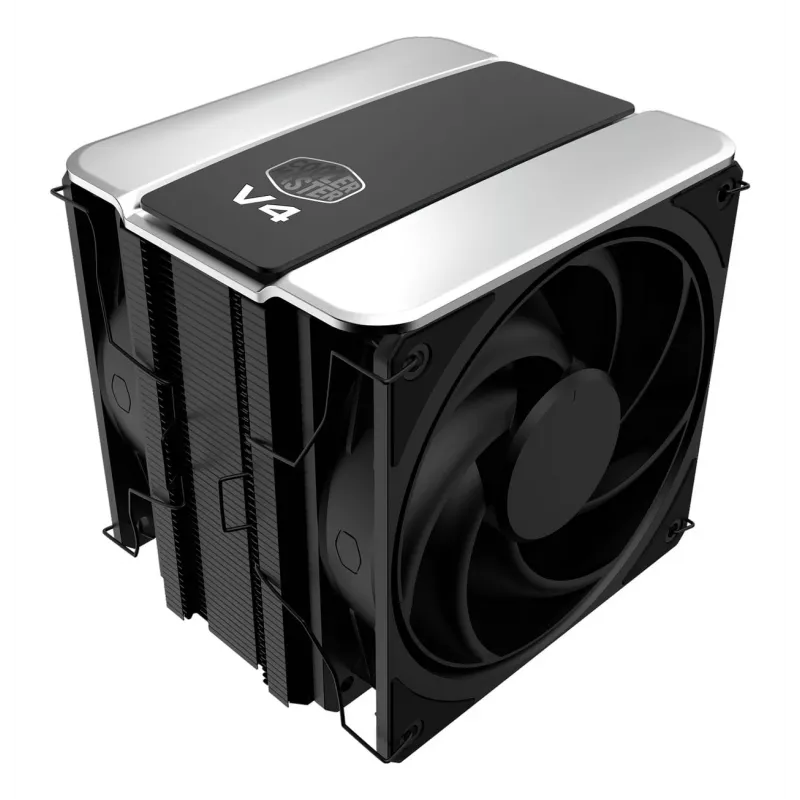

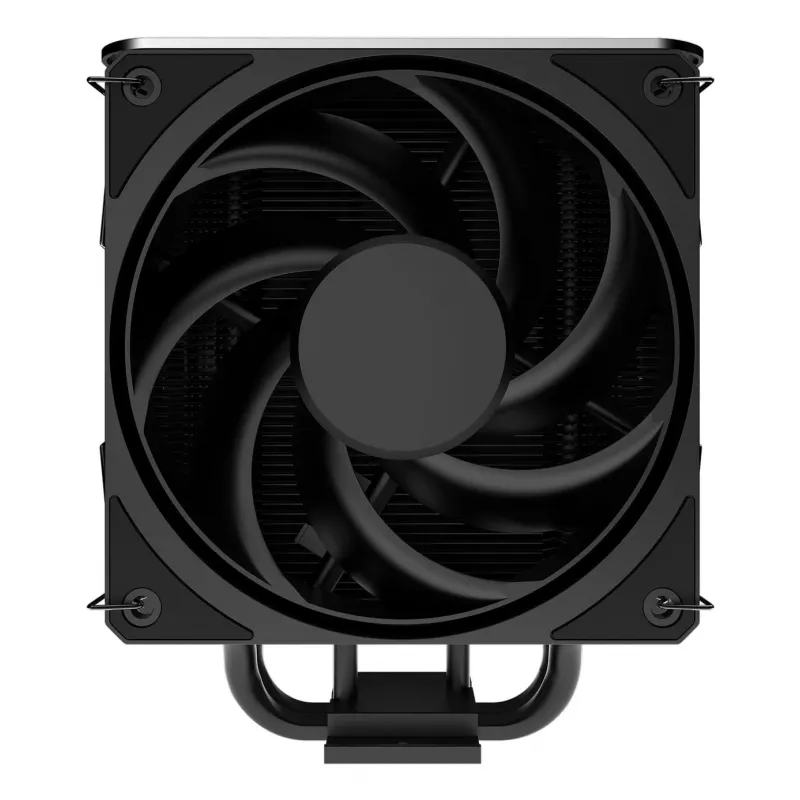

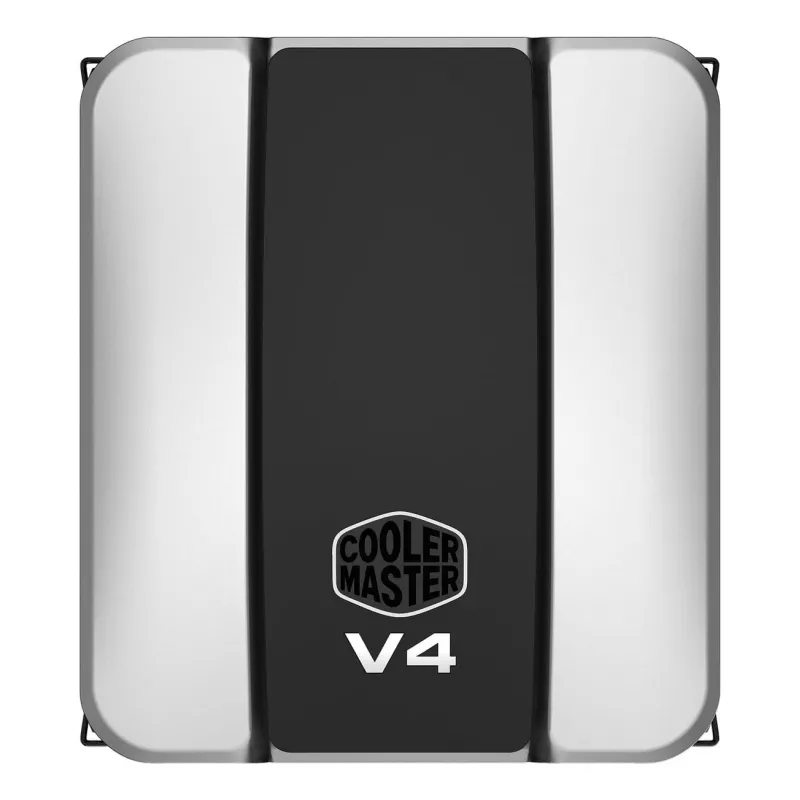

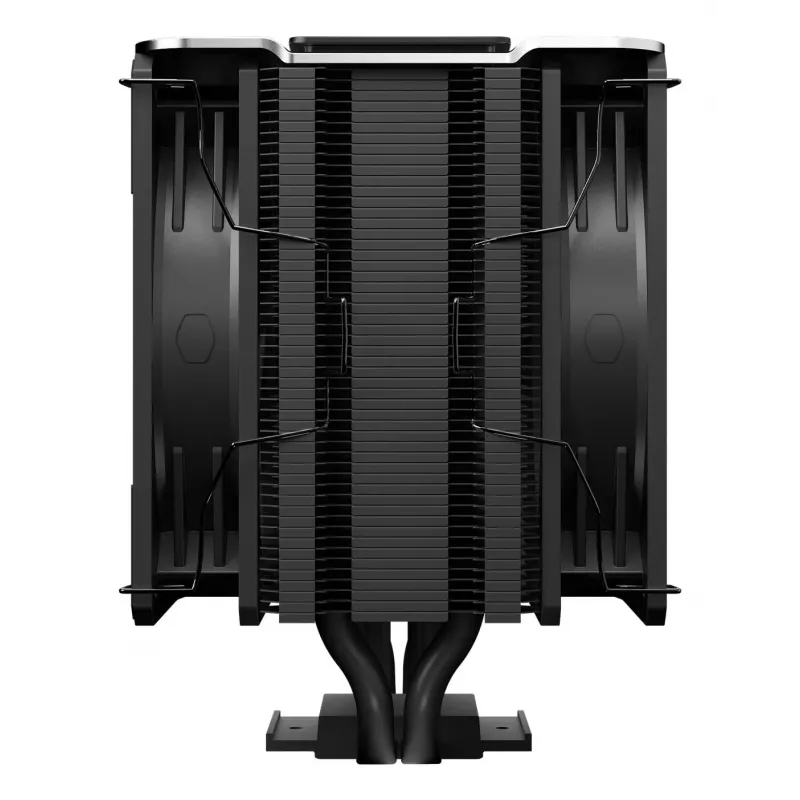

Cooler Master V4 Alpha 3DHP Black is a black processor air cooler with a 120 mm Mobius ring-blade fan and Cooler Master’s proprietary 3DHP heat pipe technology. Engineered with an optimized internal structure and a larger solid copper contact base, the V4 Alpha 3DHP Black provides efficient heat transfer and stable temperatures for mainstream desktop CPUs while keeping noise levels low. The compact V-style design supports effective airflow and is compatible with current AMD and Intel sockets including LGA1700 and AM5.

Advantages

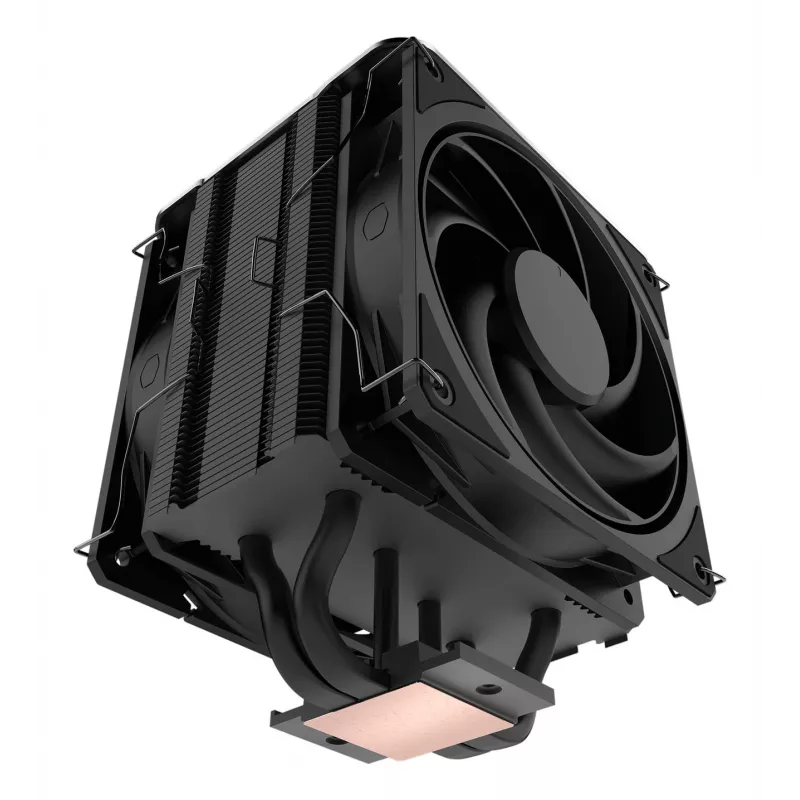

The 3DHP hybrid internal structure combines sintered powder and grooved channels to optimize evaporation, condensation and liquid return phases, delivering heat dissipation comparable to conventional four-pipe coolers while using fewer pipes. Pre-installed Mobius 120 ring-blade fans reduce high-frequency noise and improve airflow smoothness. A larger copper contact surface increases heat transfer efficiency from the CPU to the cooling array. The package also includes high-performance CRYOFUZE thermal paste for improved thermal coupling.

Suitable for

• Mainstream desktop CPU cooling
• Quiet system builds and small-form-factor PCs
• Users seeking a compact air cooler compatible with LGA1700 and AM5

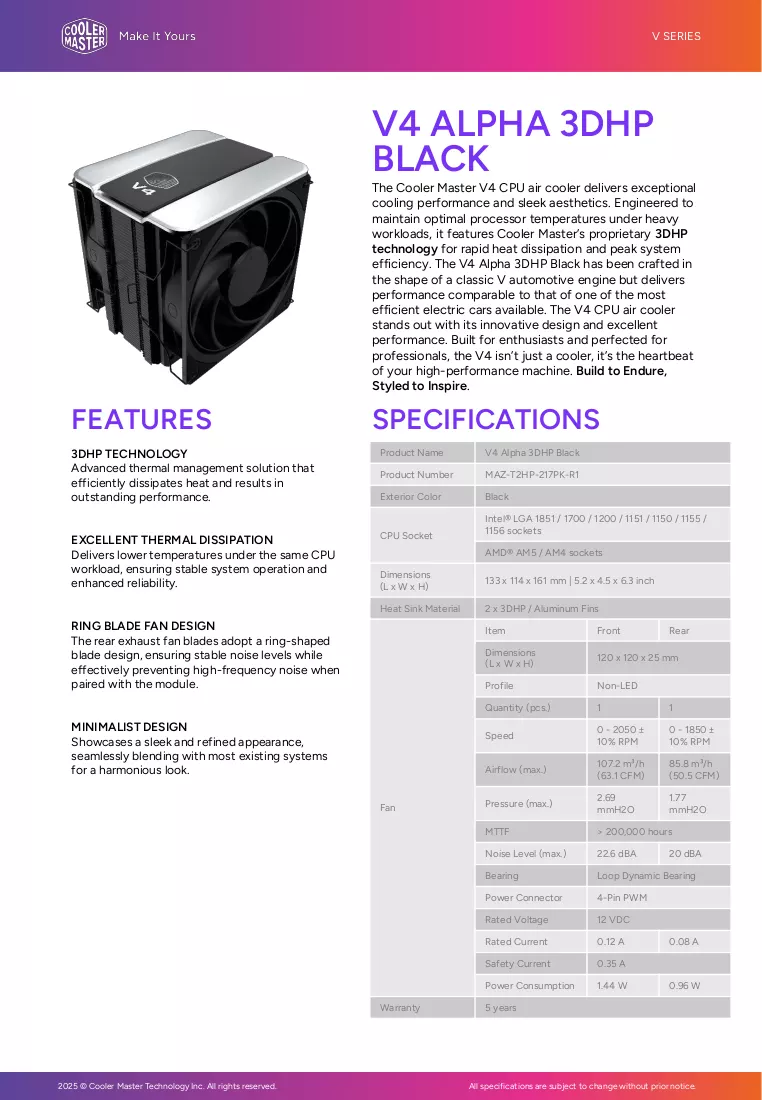

Key specifications

• Type: Air cooler
• Fan diameter: 120 mm (Mobius ring-blade)
• Airflow: 107.2 m³/h (approx. 63.1 cfm)
• Max air pressure: 2.69 mmH2O
• Bearing: Loop Dynamic Bearing (LDB)
• Control: PWM support
• Dimensions (approx.): 114 × 133 × 161 mm
• Colour: Black
• Compatibility: LGA 1700, LGA 1200/115x series, LGA 1156, Socket AM4, Socket AM5
• Package contents: 1 pc, CRYOFUZE thermal paste included

How to use

Mount the V4 Alpha 3DHP Black on the CPU following the included installation manual for your socket type (Intel or AMD). Apply the supplied CRYOFUZE thermal paste on the CPU heatspreader, position the cooler so the copper base makes full contact, and secure the mounting brackets evenly. Connect the fan PWM cable to the motherboard CPU fan header to allow automatic speed control. Verify clearance for RAM and other components before final assembly.

Recommendations

For optimal performance, ensure good case airflow by providing intake and exhaust paths and keep the cooler and fans free of dust. Use the motherboard’s PWM control profiles to balance noise and cooling performance according to workload.
