Dispositivo de seguridad Fanvil KT30

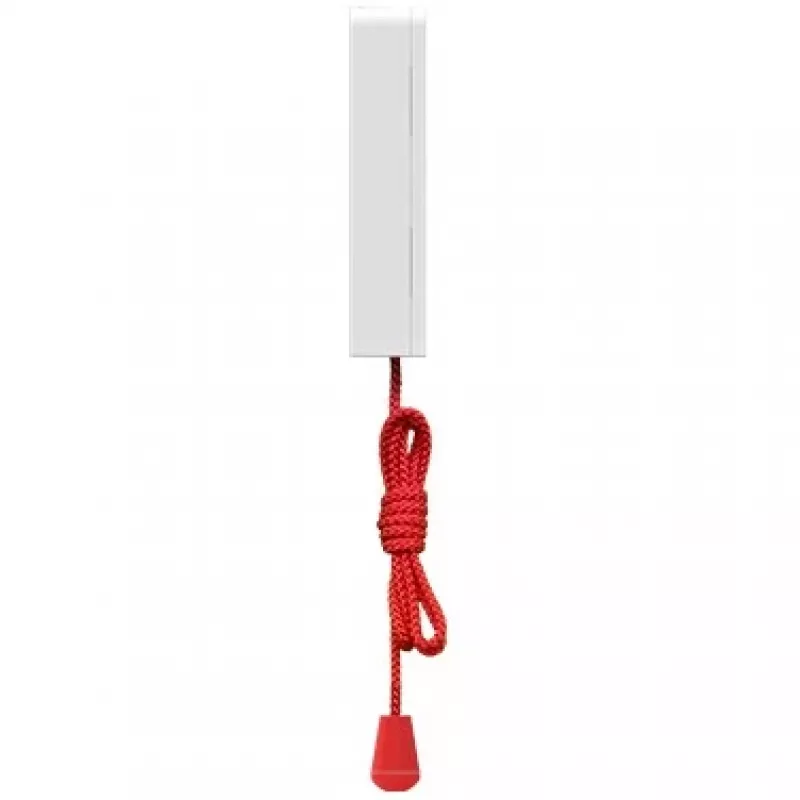

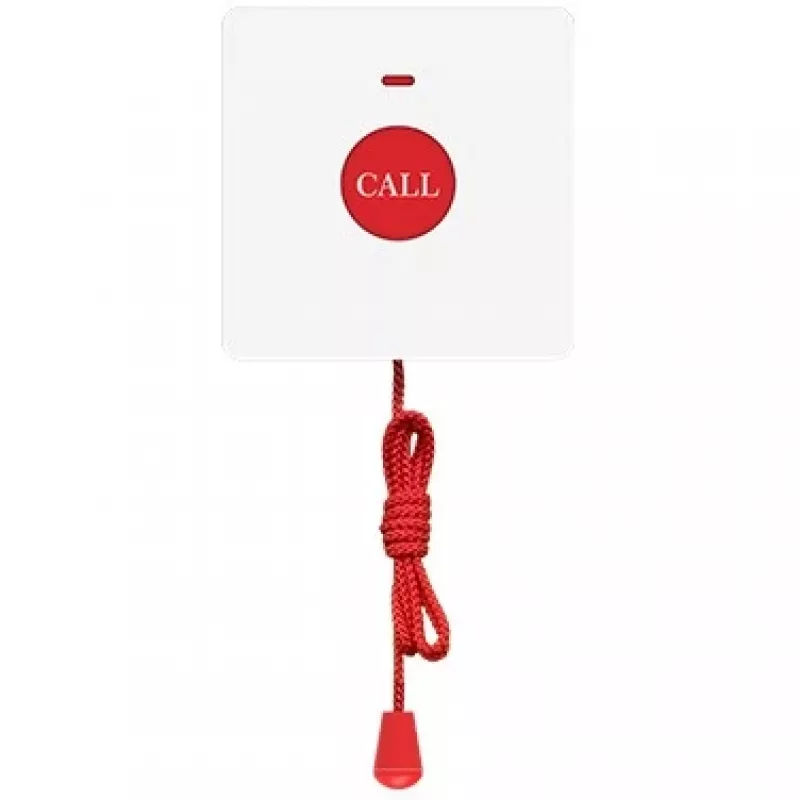

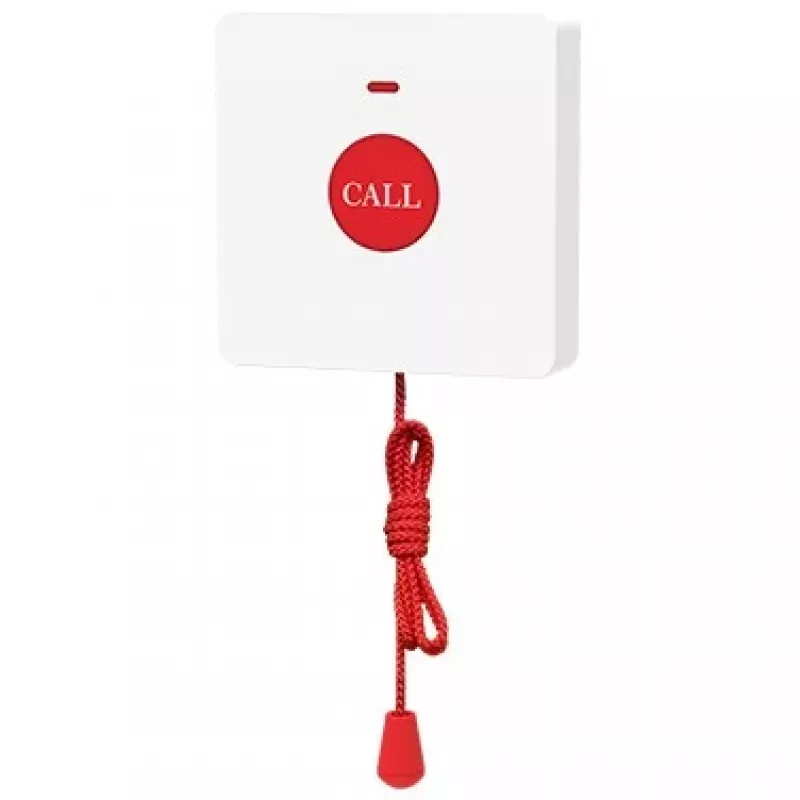

Fanvil KT30 is a wireless emergency button for wall mounting, designed primarily for use in locations such as bathrooms. The device operates on a 433 MHz wireless frequency to provide reliable signal transmission and immediate assistance in emergency situations. It has an IP65 rating for dust and water resistance, a sensor range of up to 30 m, and measures 86 x 86 x 19 mm. The unit is available in red and white and is supplied as a single piece.

Advantages

The Fanvil KT30 offers a compact, wall-mounted form factor with IP65 protection suitable for humid or dusty environments. Its 433 MHz wireless technology supports stable signal transmission over a sensor distance of up to 30 m, while the small dimensions and two color options allow integration into different interior styles and safety schemes.

Suitable for

• Bathrooms and shower areas in care facilities
• Assisted-living rooms and patient bathrooms
• Public restrooms requiring emergency call capability
• Any indoor or sheltered area needing a wall-mounted emergency call button

Key specifications

• Model: Fanvil KT30
• Wireless frequency: 433 MHz
• Sensor distance: up to 30 m
• Ingress protection: IP65 (dust and water resistant)
• Dimensions: 86 x 86 x 19 mm
• Color options: red, white
• Package quantity: 1

How to use

Mount the Fanvil KT30 on a wall at an accessible height in the chosen location, following local installation rules. Pair the device with the compatible receiver or alarm system that supports 433 MHz wireless input. After installation, verify correct operation by testing the button and confirming signal reception at the receiver within the specified 30 m range. Ensure the device is secured and protected from direct water jets despite its IP65 rating.

Recommendations

Install the KT30 in a sheltered position away from strong sources of interference; periodically test the wireless connection and visual condition, and replace the device if mechanical damage or reduced signal reliability is observed.
