Distribuidor de cable Televes 519506 acero inoxidable 5 - 2400 MHz

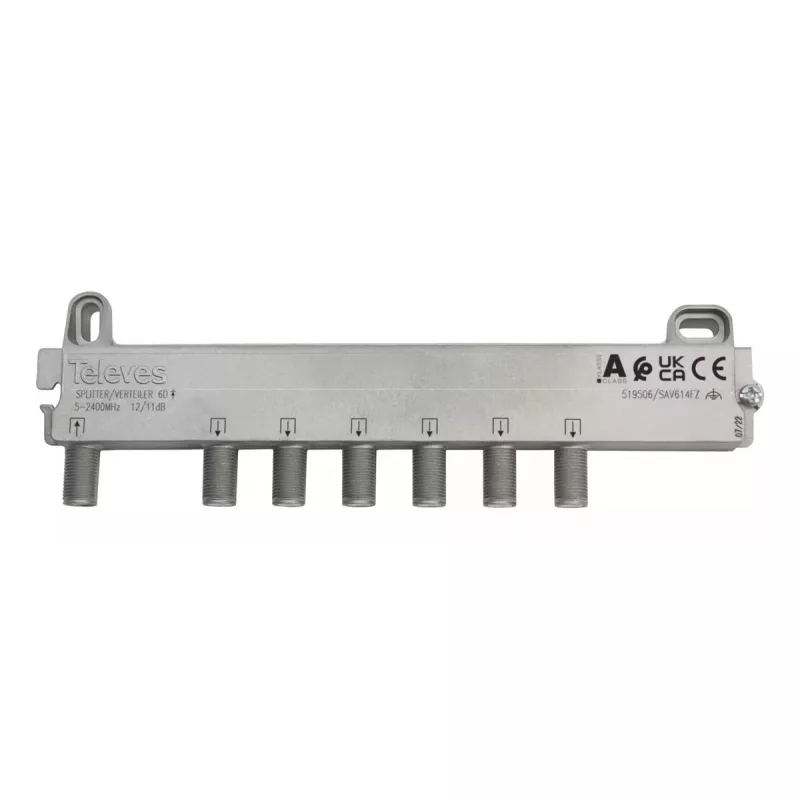

The Televes 519506 is a 6-way F-connector splitter for SMATV signals, covering a frequency range of 5–2400 MHz. Built with a Zamak chassis and stainless-steel finish, it offers compact dimensions (176 mm × 18 mm × 54 mm) and low insertion loss due to miniaturized electronic components, making it suitable for indoor wall, rack plate or standard DIN rail mounting.

Advantages

Low through losses resulting from miniaturized electronic components, robust Zamak chassis with stainless-steel appearance for improved shielding, compact and lightweight design (approximately 0.132–0.138 kg) that facilitates installation in confined spaces, and F-type connectors compatible with standard coaxial SMATV cabling.

Suitable for

• SMATV signal distribution in residential buildings
• Apartment blocks and hotel TV distribution systems
• Indoor installations on walls, rack plates or DIN rails
• Multi-room cable television and satellite signal splitting

Key specifications

• Model: Televes 519506
• Type: 6-way splitter with F connectors
• Frequency range: 5–2400 MHz
• Attenuation / isolation: 12/11 dB

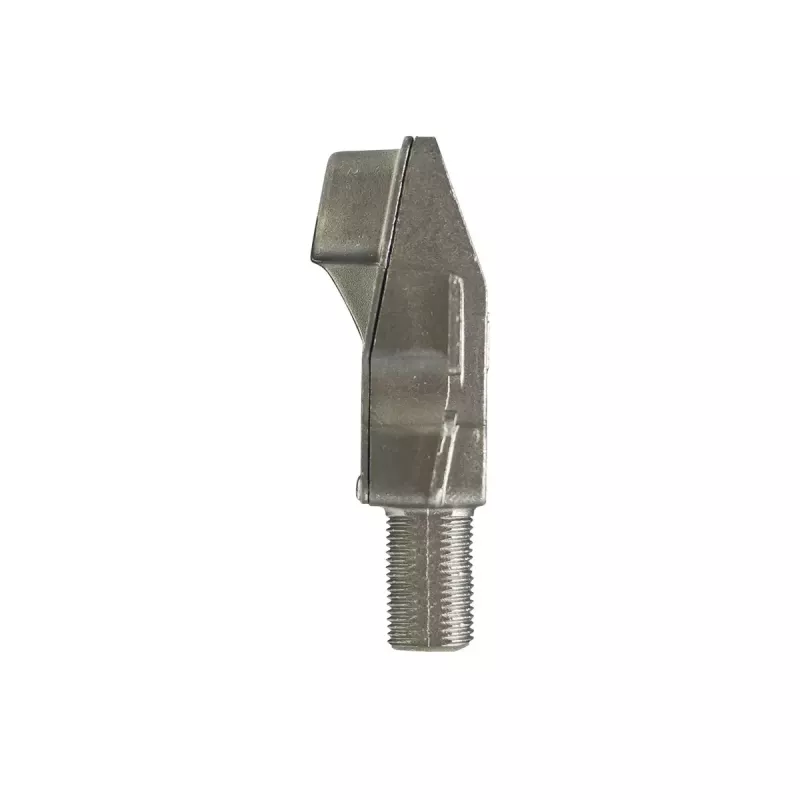

• Material / chassis: Zamak, stainless steel appearance
• Dimensions (W × D × H): 176 × 18 × 54 mm
• Weight: approx. 0.132–0.138 kg

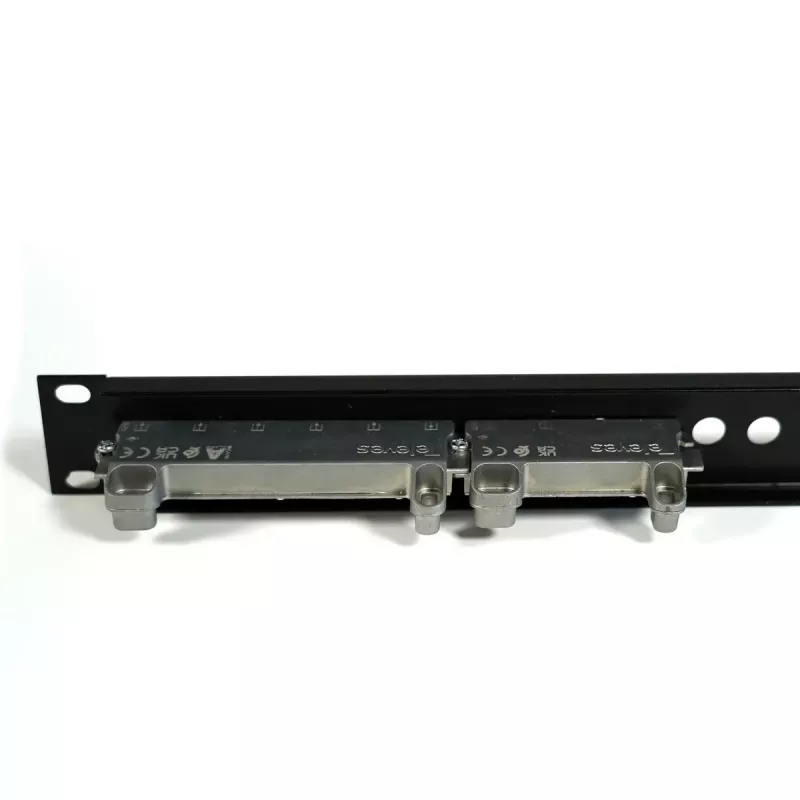

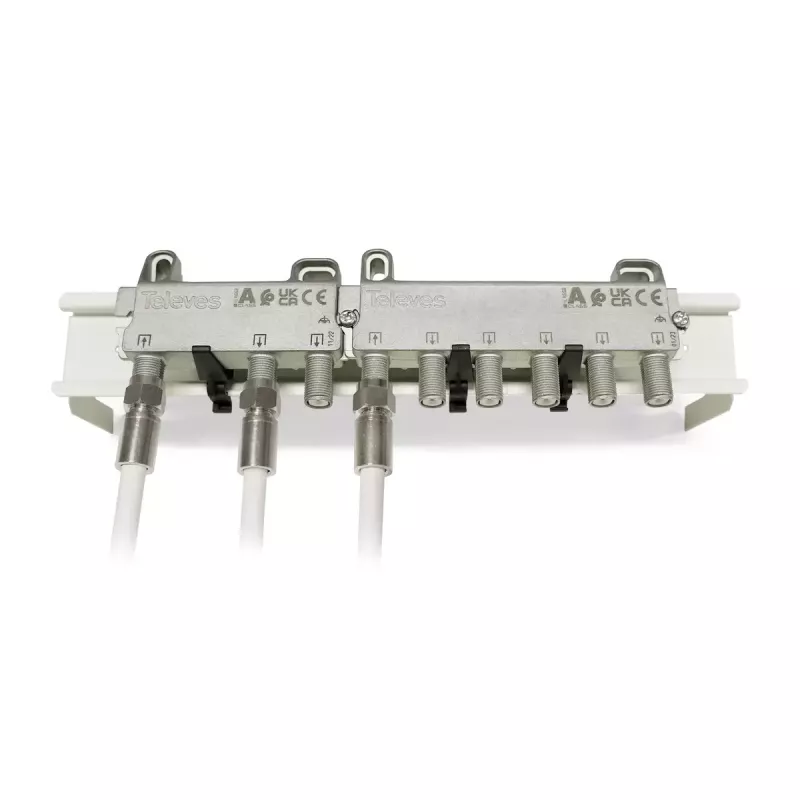

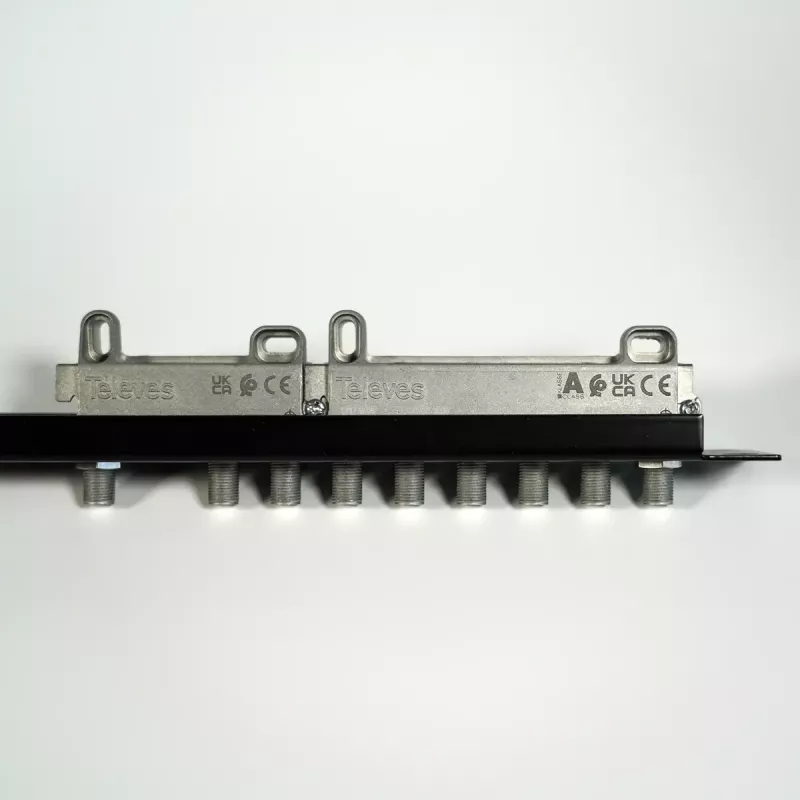

• Intended installation: indoor, wall/rack plate/DIN rail

How to use

Connect the incoming coaxial cable carrying the SMATV signal to the input F connector and terminate the six output F connectors to the respective coaxial runs feeding each receiver. Mount the splitter on a wall, rack plate or DIN rail using appropriate fasteners and ensure connectors are tightened to provide proper shielding. Verify signal levels at the receiver ends after installation and adjust amplification upstream if necessary.

Recommendations

Install indoors in a dry, ventilated location; avoid exposure to direct moisture. Use quality coaxial cables and properly torqued F connectors to maintain shielding and minimize losses. If signal levels are low after splitting, consider an amplifier or redistribution amplifier designed for the 5–2400 MHz range.
