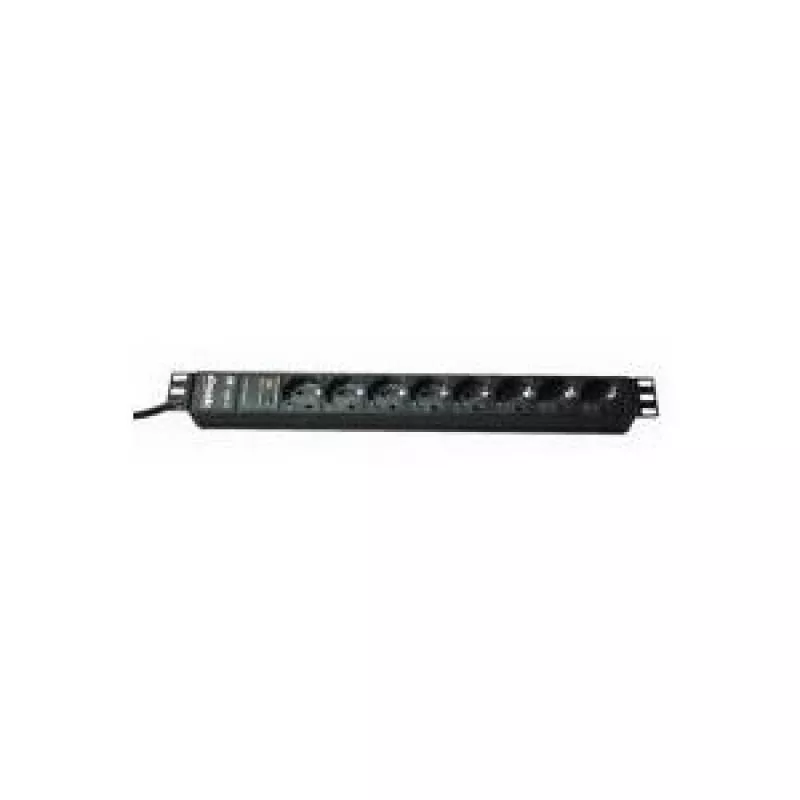

Distribuidor de corriente Bachmann 19'' 2 m 8x Schuko H05VV-F 3G 1,50mm²

The Bachmann 19'' power extension provides reliable rack-mountable power distribution with eight Schuko AC outlets in a compact 1 U aluminium profile. It includes a 2 m H05VV-F 3G 1.50 mm² cable with a moulded right-angle plug featuring a dual earthing contact system and sockets angled at 35°, offering a space-efficient solution for offices, server cabinets or home workspaces.

Advantages

This 1 U overvoltage protection unit combines a robust black aluminium housing with eight earthed Schuko sockets for secure power delivery. The 2 m H05VV-F 3G 1.50 mm² cable and moulded right-angle plug reduce strain on connections, while the 35° angled sockets improve accessibility in confined rack or cabinet installations.

Suitable for

• Office workstations and desktop setups
• Server racks and network cabinets (19" mounting)
• Home office and multimedia equipment
• IT closets and equipment rooms

Key specifications

• Form factor: 1 U, 19" compatible
• AC outlets: 8 Schuko (with earthing contact)
• Cable: H05VV-F 3G 1.50 mm², length 2 m
• Plug: moulded right-angle plug with dual earthing contact system
• Sockets orientation: set at 35°
• Housing: aluminium profile, black
• Brand: Bachmann, MPN 333.534, EAN 4016514019472

How to use

Mount the unit into a 19" rack or place it where a compact power strip is required. Connect the right-angle plug to a suitable earthed mains socket and plug devices into the Schuko outlets. Ensure the unit is secured in the rack and that cable routing avoids sharp bends or pinch points to maintain cable integrity.

Recommendations

Use this power extension for equipment that requires earthed Schuko connections and a fixed 2 m reach; avoid overloading the unit beyond the rated current of connected devices and follow local electrical safety regulations when installing into racks or cabinets.
