Distribuidor de corriente Bachmann 3x Schuko 1x GST18 negro plata

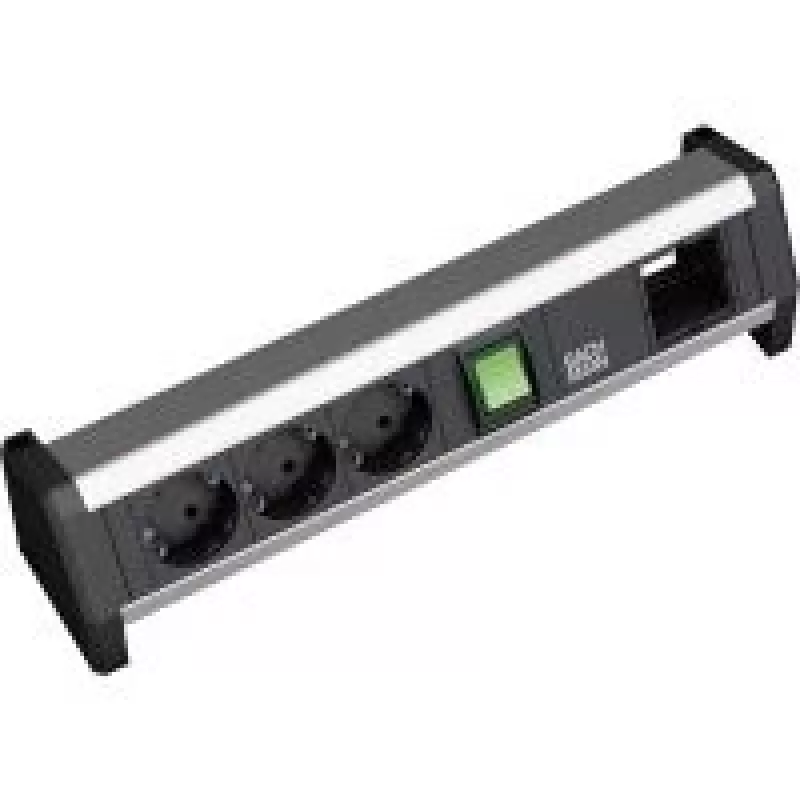

The Bachmann Power Extension provides three grounded Type F AC sockets and one GST18 connection for standardized power distribution. Housed in a black-and-silver anodised aluminium profile with plastic elements, this unit accepts a GST18 input plug and offers a GST18 power outlet for forwarding power to another module. The product is intended for desktop or office use, supplying accessible power for portable devices while enabling safe chained connections via the integrated Wieland connector system.

Advantages

The integrated Wieland (GST18) plug-in connector on the rear panel delivers a safe, touch-protected power input and allows flexible cable length or quick replacement of the supply cable. A GST18 power outlet on the unit enables forwarding power to the next module in series in compliance with standards. The aluminium profile is anodised for durability, and the three 35°-angled grounded AC outlets are combined with a 2-pole illuminated switch for convenient control of the connected loads.

Suitable for

• Individual office workstations — laptops, chargers and small peripherals
• Home office setups requiring multiple AC outlets with a standardized input
• Modular installations where chained power strips (GST18) are needed

Key specifications

• AC outlets: 3 × Type F (Schuko), angled at 35°
• Power input connector: GST18 (Wieland)
• Power outlet connector: GST18
• Switch: 1 × 2-pole illuminated
• Housing: anodised aluminium profile with black/silver finish
• Length: 365 mm

How to use

Connect the supply cable with GST18 plug to the rear-panel Wieland input. Plug devices into the three Type F sockets and use the illuminated 2-pole switch to turn power on or off. If required, connect another module using the GST18 power outlet to forward supply to the next unit. For mounting on a desk edge, attach the supplied bracket and tighten the internal screw with a size 4 Allen key; this mounting method does not damage the desktop.

Recommendations

Ensure the total current drawn by connected devices does not exceed the product’s rated capacity. Use only compatible GST18 cabling and connectors, and secure the unit with the mounting bracket using a size 4 Allen key when installing on a desk edge. Follow local electrical codes and consult a qualified electrician for fixed or high-power installations.
