Distribuidor de corriente Bachmann 916.0601 0,1 m 2 tomas AC negro

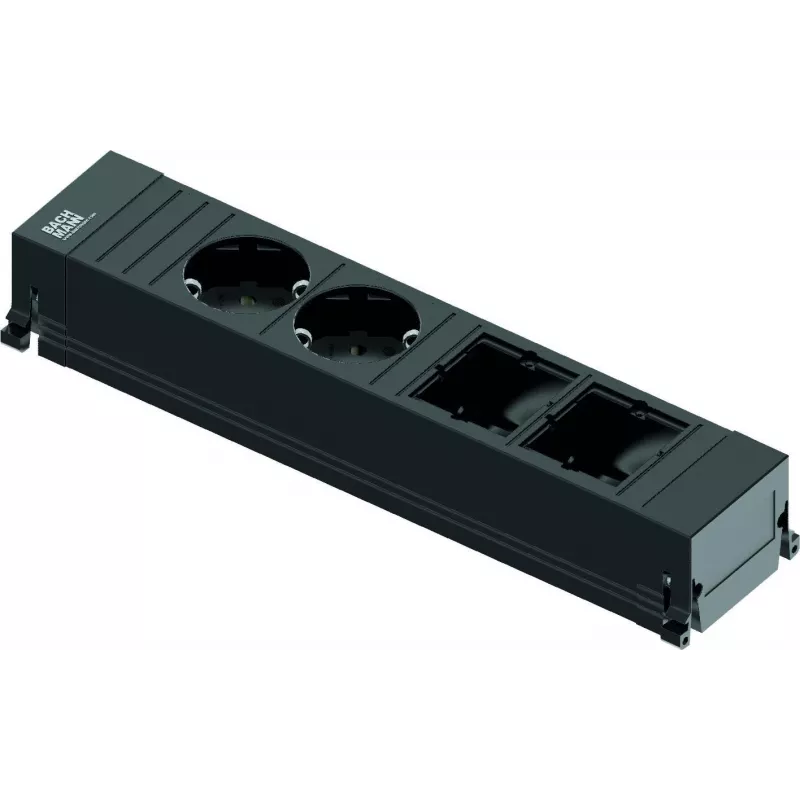

POWER FRAME is a compact power extension module from Bachmann designed to supply electricity to workstations and built-in frames. The unit has a 0.1 m cable with a GST18i3 plug and a black plastic housing. It provides two AC outlets and is intended for situations where space is limited and a replaceable or modular power solution is required.

Advantages

The Bachmann 916.0601 offers a short 0.1 m cable and GST18i3 plug for direct connection to compatible frames, a durable black plastic housing for long service life, and two AC outlets to power multiple devices. Its module clicks into the built-in POWER FRAME and can be interchanged or combined with other modules as needed.

Suitable for

• Supplying power to workstation frames and desk modules
• Installations with limited depth or tight spaces
• Home offices and small office environments
• Situations requiring modular or replaceable power units

Key specifications

• Brand: Bachmann
• Model / MPN: 916.0601
• EAN: 4016514058235
• Cable length: 0.1 m
• Connector: GST18i3 plug
• Outlets: 2 AC outlets
• Housing: black plastic

How to use

Insert the power module into the compatible POWER FRAME opening until it clicks into place. Connect the GST18i3 plug to a matching inlet on the frame or distribution unit. Once installed, plug devices into the two AC outlets. The module can be removed and replaced by pressing the release mechanism on the frame and pulling the unit out.

Recommendations

Use the unit only with compatible POWER FRAME systems and matching GST18i3 inlets. Verify the electrical specifications of connected devices and avoid overloading the two AC outlets. Install in dry indoor environments and follow local wiring and safety regulations.
