Distribuidor de vídeo Busch-Jaeger 2CKA008300A0043, dimensiones 36×65×90 mm

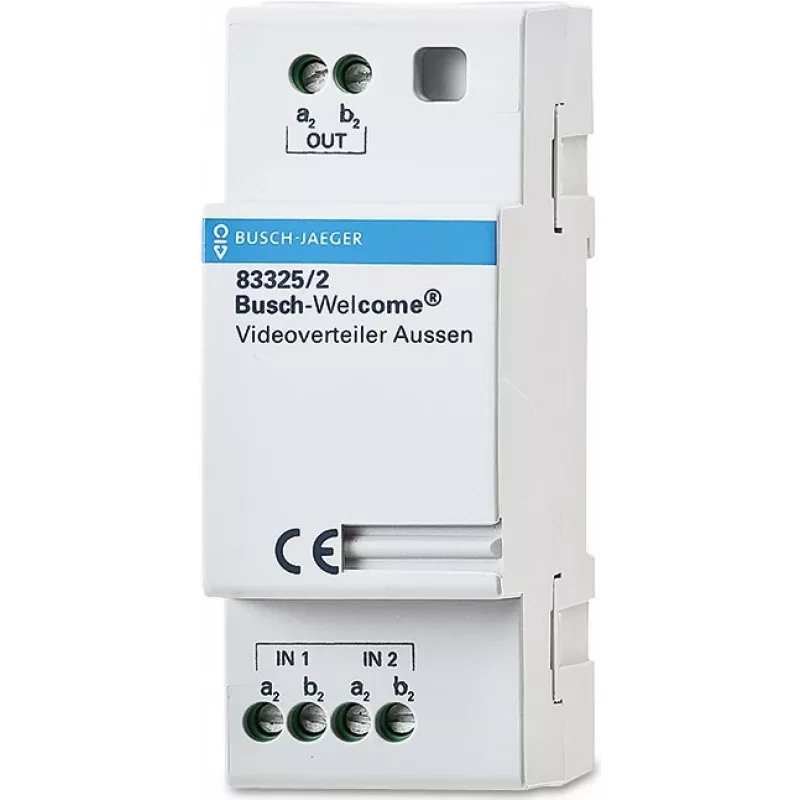

Busch-Jaeger 2CKA008300A0043 is a compact video distributor designed for routing analog video signals in intercom and CCTV installations. With physical dimensions of 36 × 65 × 90 mm, this unit is intended for indoor electrical enclosures and panel mounting where space is limited. The device integrates into building communication and security systems to distribute a single video input to multiple outputs or to manage signal paths between cameras and monitors.

Advantages

The small footprint and standardized mounting format allow easy installation in distribution cabinets and switch panels. Designed by Busch-Jaeger, the distributor provides stable signal routing suitable for typical intercom and CCTV environments. The compact housing and clearly defined connection points simplify wiring and maintenance while minimizing occupied space inside enclosures.

Suitable for

Key specifications

How to use

Install the video distributor in an appropriate indoor electrical enclosure or on a mounting panel following local electrical regulations. Connect the incoming video feed to the designated input terminal and route outputs to monitors, recorders or downstream devices using compatible cable types and connectors. Ensure all connections are secure and, if applicable, verify signal levels and impedance matching for best performance. After wiring, power up the system and confirm video presence on all intended outputs.

Recommendations

Use shielded coaxial cables and proper grounding practices to reduce interference. Place the distributor inside a ventilated enclosure away from heat sources and moisture. For long cable runs or complex systems, check signal integrity and consider additional amplification or balancing devices as needed.
