DIVERSE cable de extensión solar 6mm², conector macho MC4 a conector hembra, 1,5 metros, negro

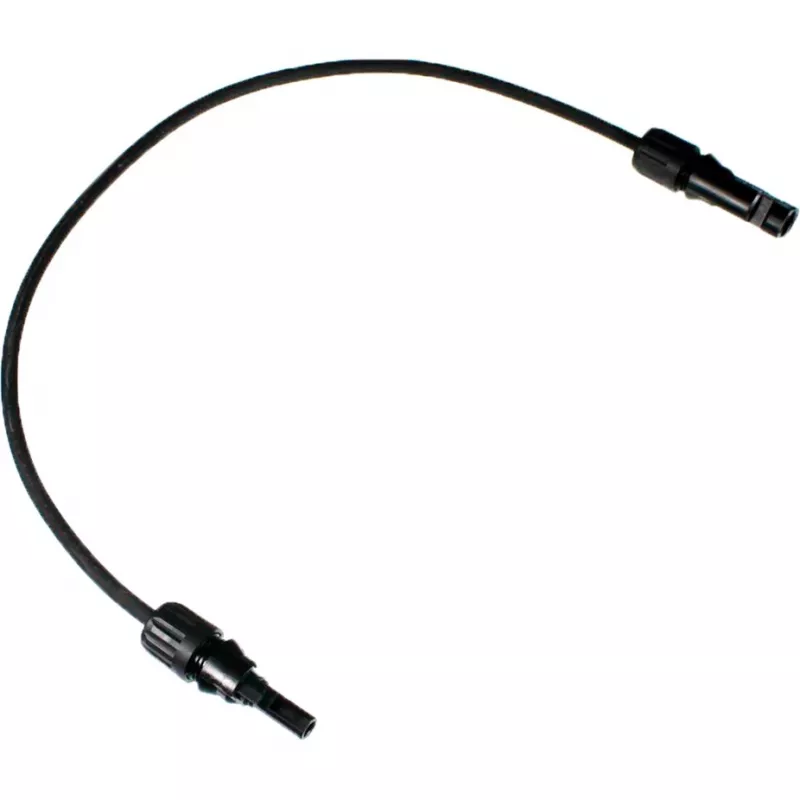

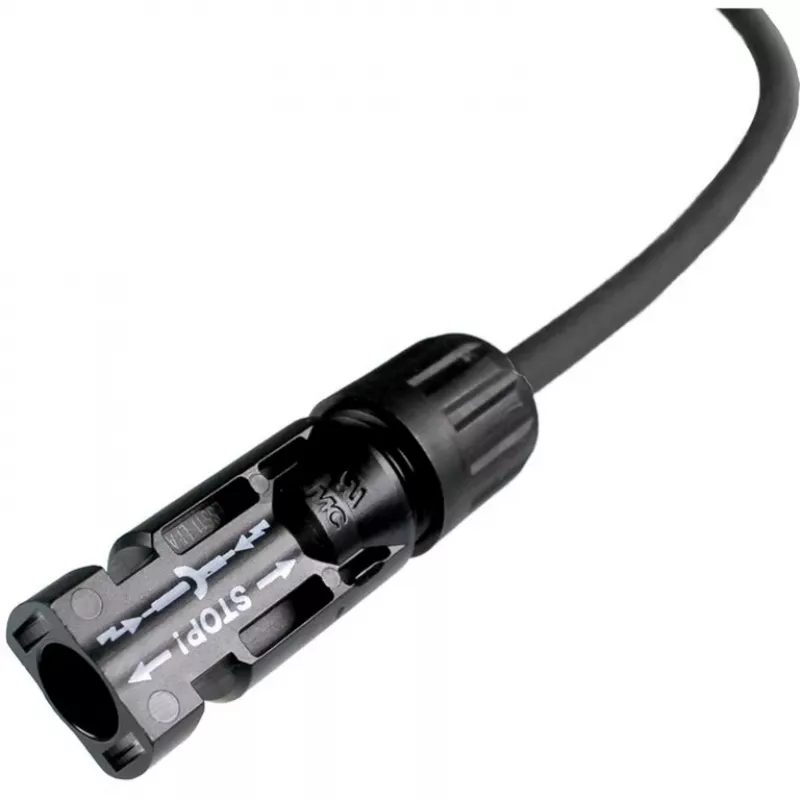

The DIVERSE Solar Extension Cable is a high-quality, professional-grade cable designed for photovoltaic systems. With a cross-section of 6 mm² and a length of 1.5 meters, it provides a reliable and efficient connection between solar panels or from panels to the inverter. The cable features MC4 connectors (male on one end, female on the other) for easy and secure plug-and-play installation. Manufactured with tinned copper conductors and XLPE insulation, it offers excellent conductivity, UV resistance, and durability. Rated for 1000V DC and 45A, this cable is TÜV certified and suitable for outdoor use with IP67 weather resistance.

Advantages

This extension cable ensures minimal power loss and maximum safety in your solar setup. The MC4 connectors are industry-standard, providing a watertight and reliable connection. The UV-resistant and weatherproof design guarantees long-lasting performance even in harsh environmental conditions. The 6 mm² cross-section allows for higher current capacity, making it ideal for larger solar arrays.

Suitable for

• Extending the distance between solar panels
• Connecting solar panels to charge controllers or inverters
• Photovoltaic systems requiring a durable and weatherproof cable
• DIY and professional solar installations

Key specifications

• Cable Type: Solar Extension Cable
• Cross-Section Area: 6 mm²
• Length: 1.5 meters
• Connector 1: MC4 Male
• Connector 2: MC4 Female
• Conductor Material: Tinned Copper
• Insulation Material: XLPE
• Jacket Material: XLPE
• Color: Black
• Rated Voltage: 1000V DC
• Rated Current: 45 A
• Temperature Range: -40°C to +90°C
• UV Resistance: Yes
• Weather Resistance: IP67
• Flammability Rating: UL94-V0
• Certification: TÜV Rheinland
• Application: Photovoltaic Systems
• Number of Cores: 1 (Single Core)

Recommendations

For optimal performance, ensure that the connectors are properly tightened and protected from moisture. This cable is compatible with most MC4-based solar panels and components. Always follow local electrical codes and safety guidelines when installing.
