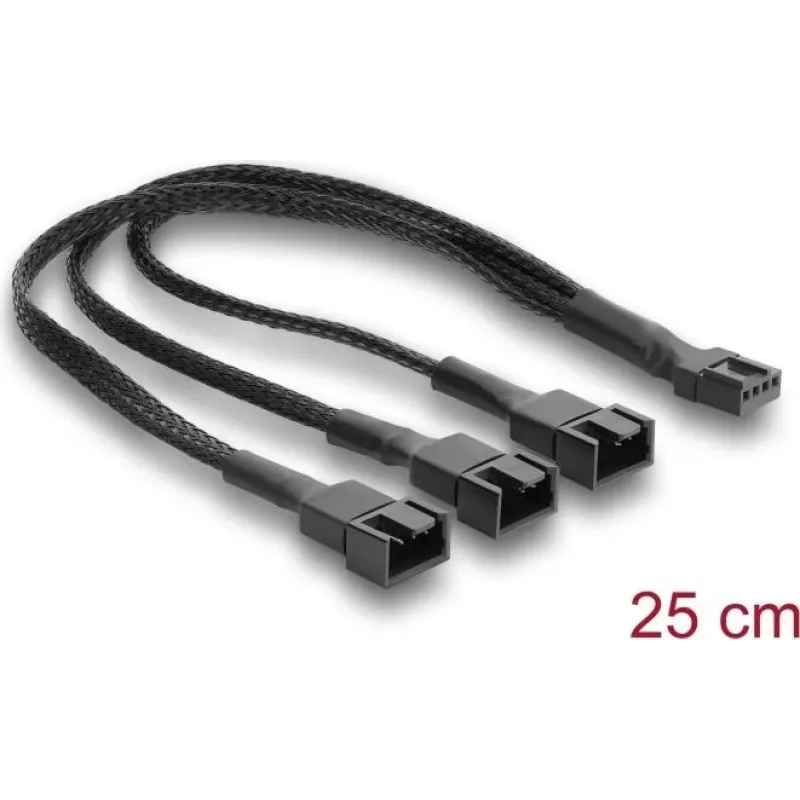

Divisor de cable de ventilador Delock 1 x conector hembra 4 pines PWM a macho + 2 x macho 4 pines (3 pines conectados) con funda trenzada 25 cm negro

The Delock Fan Cable Splitter allows you to connect multiple fans to a single motherboard header. It features one 4-pin PWM female input that splits into one 4-pin PWM male output and one 4-pin male output with only three pins wired (power, ground, PWM signal). The braided nylon sleeving protects the cable and improves airflow inside the case. With a length of 25 cm, it offers flexibility for cable management.

Advantages

This splitter enables you to power and control up to two fans from one header, reducing cable clutter. The PWM signal is passed to both fans, allowing synchronized speed control. The RPM signal is only transmitted from the first output, so the motherboard reads the speed of one fan. The braided sleeving adds durability and a clean look.

Suitable for

• Connecting two 4-pin PWM fans or 3-pin DC fans to a single motherboard header
• PC builds where additional fan headers are limited
• Improving cable management with braided sleeving

Key specifications

• Input: 1 x 4-pin PWM female
• Output 1: 1 x 4-pin PWM male (all 4 pins wired)
• Output 2: 1 x 4-pin male (3 pins wired: power, ground, PWM; no RPM signal)
• Number of outputs: 2
• Cable length: 25 cm
• Colour: Black
• Sleeving: Braided nylon
• Voltage: 12V DC
• Connector material: Plastic, metal pins
• Conductor material: Copper
• Compatibility: 4-pin PWM fans, 3-pin DC fans

Recommendations

For optimal performance, ensure your motherboard header can supply enough current for both fans. Check the fan specifications for total amperage draw.
