Sbox divisor HDMI 1x8 HDMI-1.4 HDMI-8

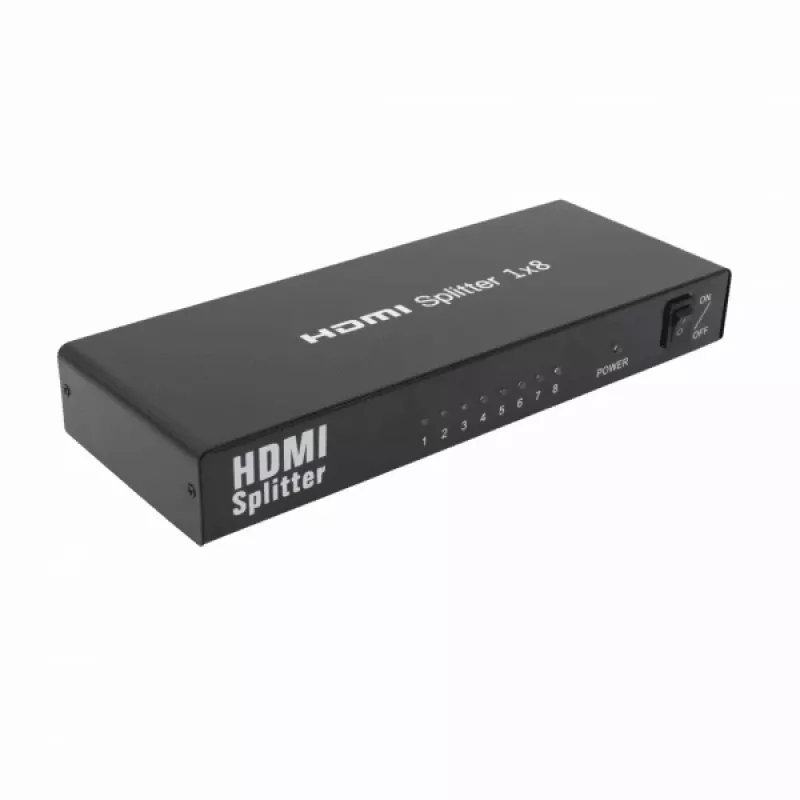

The Sbox HDMI Splitter 1x8 distributes a single HDMI source to eight displays simultaneously, supporting resolutions up to 4K at 30Hz and 1080p at 60Hz. It is designed for reliable signal distribution in home theaters, conference rooms, or digital signage setups.

Key features

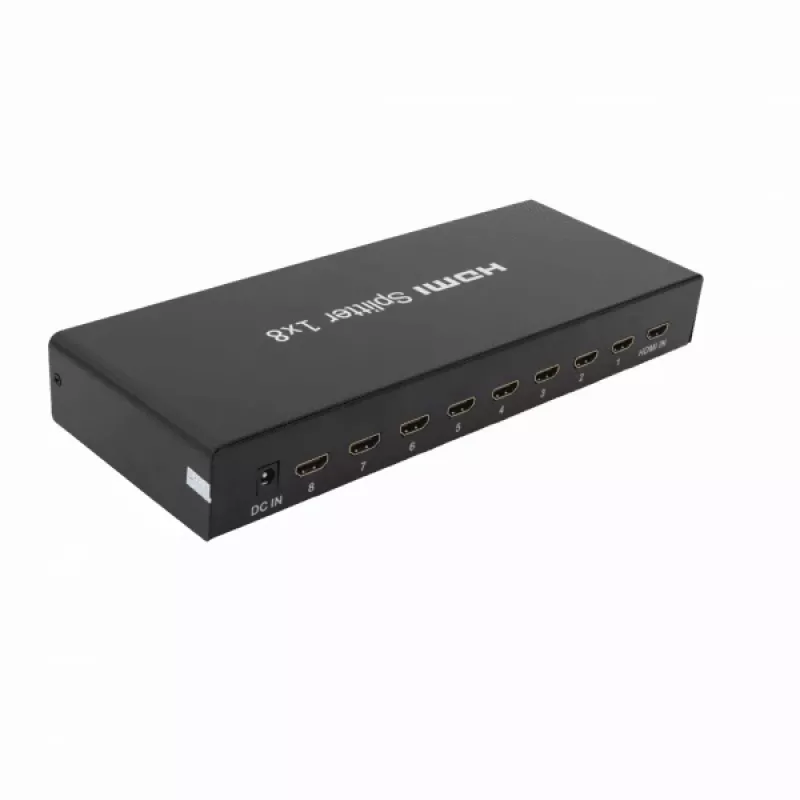

• 1 HDMI input to 8 HDMI outputs for multi-display distribution
• Supports video formats including 480i, 480p, 576i, 576p, 720p, 1080i, 1080p, and 4K (3840x2160 at 30Hz)
• Compatible with VGA resolutions up to 1920x1200
• Video amplifier frequency range of 250 MHz for stable signal transmission
• Input DDC signal: 5 V p-p (TTL); input video signal: 1.2 V p-p

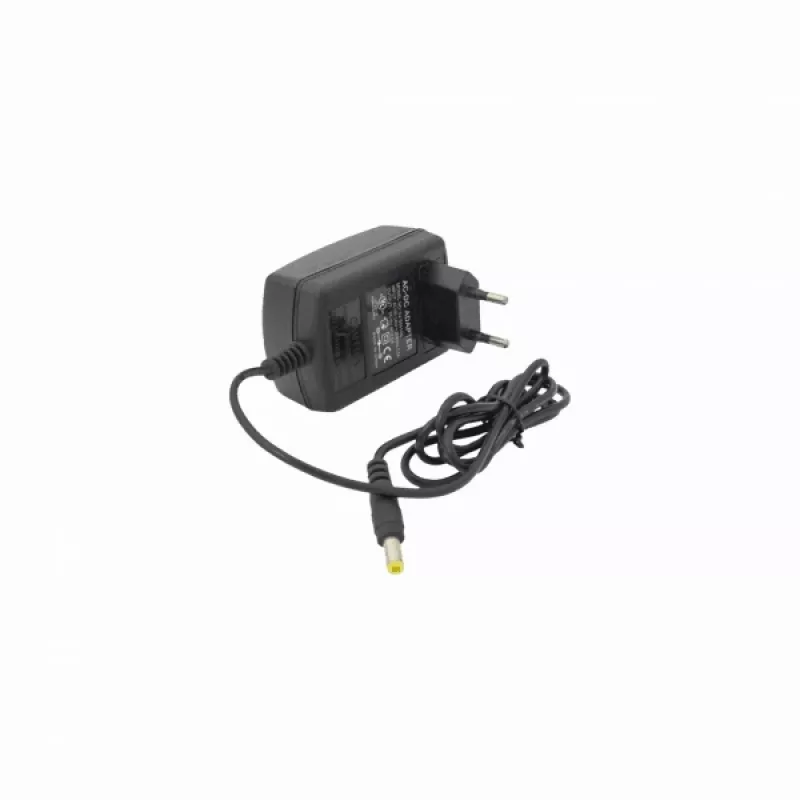

• Powered by 5 VDC with maximum power consumption of 10 W
• Compact dimensions: 276 x 105 x 38 mm
