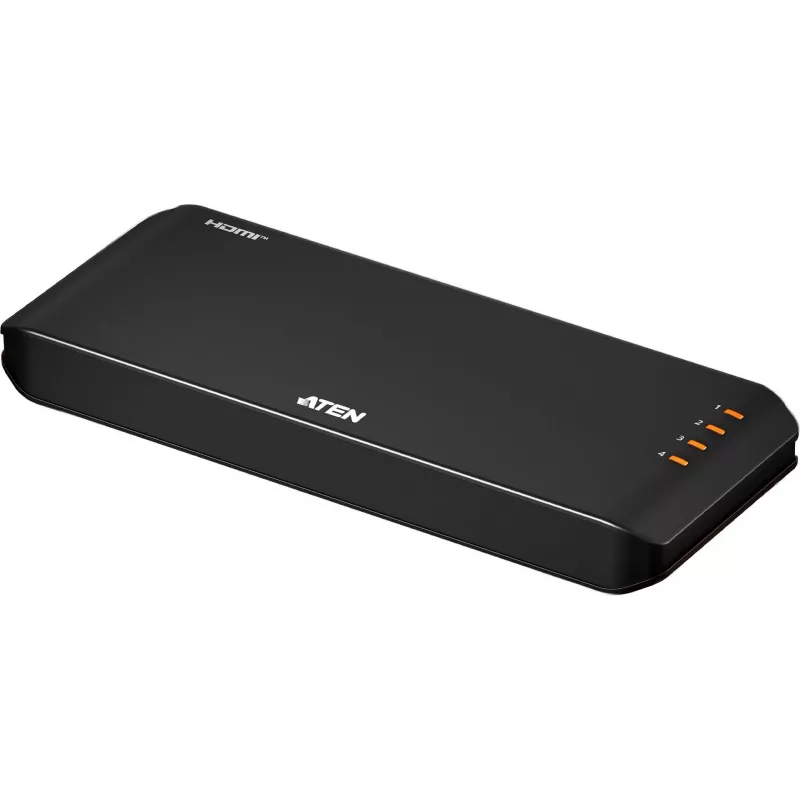

Splitter HDMI ATEN VS4814 4 puertos True 4K

The VS4814 is a 4-Port True 4K HDMI Splitter engineered to meet the highest demands of modern digital signage and commercial display applications. Featuring EDID Sync™, it delivers up to four simultaneous video streams from a single HDMI source, ensuring HDMI and HDCP 2.2-compliant visual excellence at all times. With support for HDR10+, 3D formats, and Deep Color, the VS4814 provides richer contrast and a wider color spectrum for truly immersive viewing experiences. EDID Sync™ Smart Display Optimization Automatically optimizes resolutions and prevents display issues for flawless display presentation True 4K Dual-Display Sharing Shares one HDMI source across four True 4K displays for maximum visual impact with uncompromised quality HDMI 3D/Deep Color, HDR10+, HDCP 2.2 Compatible Guarantees stable performance, broad compatibility, and superior image quality Master-Class Audio Immersion Full support for LPCM 7.1, Dolby® & DTS-HD Master Audio™ delivers theatrical-quality surround sound Aesthetic Compact Form Slim profile and stylish accent lighting allow integration into any space, perfectly complementing your setting Package Contents 1x 4-Port True 4K HDMI Splitter 1x USB power cable (Type-C to Type-A) (1 m) Video Input Interfaces 1 x HDMI Type A Female (Black) Impedance 100 O Max. Distance 3m at 3840x2160 @ 60Hz (4:4:4) Video Output Interfaces 4 x HDMI Type A Female (Black) Impedance 100 O Max. Distance 3m at 3840x2160 @ 60Hz (4:4:4) Video Max. Data Rate 18 Gbps (6 Gbps Per Lane) Max. Pixel Clock 600 MHz Compliance HDMI (3D, Deep Color, 4K) HDCP 2.2 Compatible Max. Resolution 3840 x 2160 @ 60Hz (4:4:4) Audio Input 1 x HDMI Type A Female (Black) Output 4 x HDMI Type A Female (Black) Connectors Power 1 x USB-C (5V/1A) Cable Length USB Cable 1 x USB Type-C to Type-A (1m) LEDs LED Indicator 4 x Port Indicator (Orange) Power 2 (Orange, Bottom Side) Environmental Operating Temperature 0-40 °C Storage Temperature -20 - 60 °C Humidity 0 - 80% RH, Non-Condensing Physical Properties Housing PC Weight 0.10 kg ( 0.22 lb ) Dimensions (L x W x H) 14.50 x 5.65 x 1.52 cm (5.71 x 2.22 x 0.6 in.) Carton Lot 20 pcs

• Width packaging: 0.032m
• Outputs: HDMI socket x4
• Complies with HDMI standard: 2.0
• Article type: Splitter
• Manufacturer information: ATEN Infotech n.v.
  Mijnwerkerslaan 34
  3550 Heusden-Zolder
  Belgien
  [email protected]
• Country of origin: Taiwan
• Im Angebot: No
• Stark reduziert: No
• Height packaging: 0.154m
• Manufacturer No.: VS4814
• EAN Barcode: 4711581521605
• Length packaging: 0.136m
• Brand: Aten
• Customs tariff number: 8536508090
• Interface: HDMI
• Weight: 0.184kg

How to use

Connect the HDMI source device to the splitter’s input port and then connect up to four HDMI displays to the output ports. Power the unit using the supplied power adapter and ensure all connected displays are set to accept the incoming HDMI signal. The splitter automatically distributes the source signal to each connected monitor at True 4K resolution without additional configuration. If a connected display does not show an image, verify cable connections, display input selection, and source output settings.

Recommendations

For optimal results use high-quality HDMI cables rated for 4K transmission and verify that source and display devices support the desired resolution and refresh rate. Keep cable runs within recommended lengths for HDMI 4K to prevent signal degradation. When deploying in public or commercial spaces, test the complete setup prior to use to confirm consistent output on all screens.
