Dock para portátil UNITEK D1049A

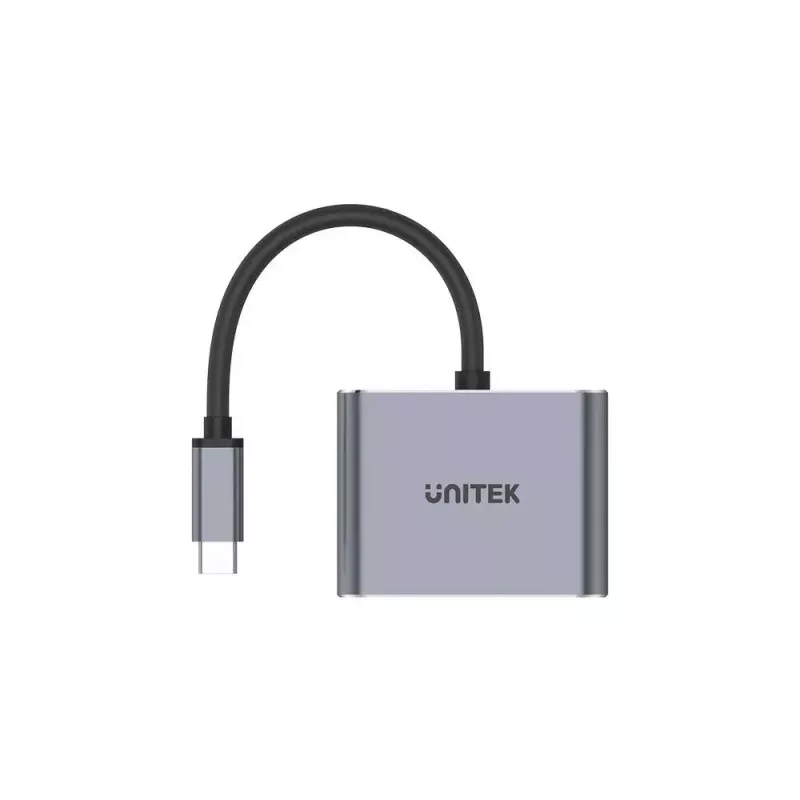

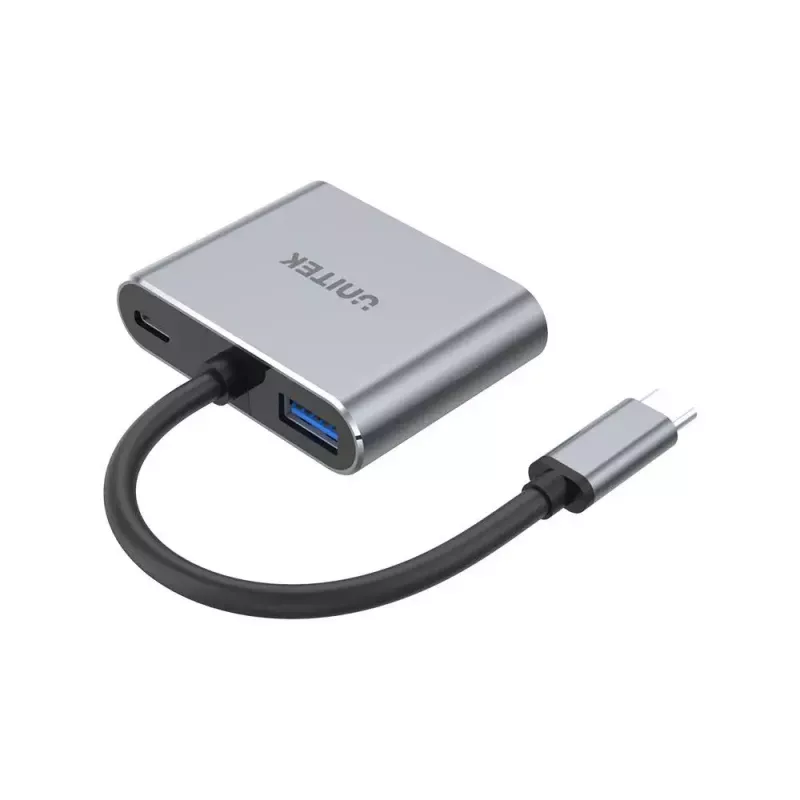

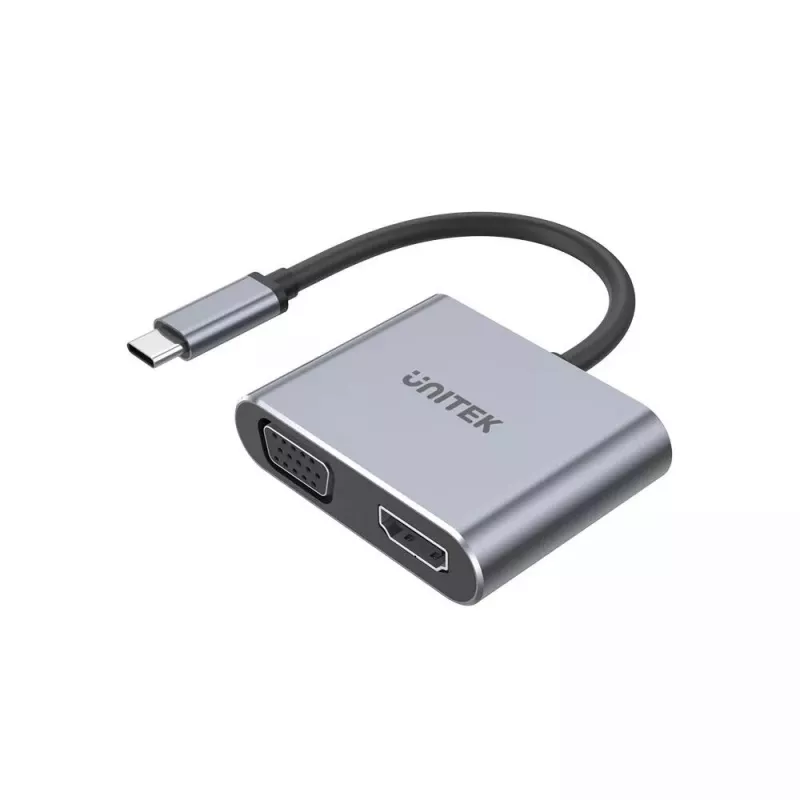

The UNITEK D1049A laptop dock is a compact USB hub that expands a laptop's connectivity through a USB 2.0 Type-C host interface. Designed for users who need additional external display and peripheral ports, the silver dock combines HDMI, VGA and USB 3.2 Gen 1 Type-A interfaces and supports USB Power Delivery up to 100 W. Its small footprint (44.1 mm × 57.6 mm × 14.6 mm) makes it easy to carry and position alongside a laptop or in a mobile workstation.

Advantages

The UNITEK D1049A provides multiple video output options, allowing connection to both HDMI and VGA displays. With a USB 3.2 Gen 1 Type-A port it supports high-speed data synchronization for peripherals and external storage. USB Power Delivery up to 100 W enables charging of compatible laptops while the hub is in use. The compact silver enclosure offers a space-saving design suitable for travel and limited-desk environments.

Suitable for

• Connecting a laptop to one or two external displays via HDMI and VGA
• Charging USB-C laptops and devices with Power Delivery up to 100 W
• Attaching USB-A peripherals such as mice, keyboards, and external drives
• Mobile workstations and business travel where compact connectivity is required

Key specifications

• Host interface: USB 2.0 Type-C
• Hub interfaces: HDMI, VGA, USB 3.2 Gen 1 Type-A
• Power delivery: up to 100 W
• Video output: HDMI up to 4K 60Hz (when supported by host and display), VGA up to 1080p
• Product colour: Silver
• Dimensions: 44.1 mm (W) × 57.6 mm (D) × 14.6 mm (H)

How to use

Connect the UNITEK D1049A to a compatible USB-C host port on your laptop. Attach HDMI and/or VGA cables from the dock to external monitors as needed; ensure the host laptop supports multi-stream transport (MST) when using two displays. Plug USB-A peripherals into the Type-A port for data transfer. If charging is required, connect a USB-C power adapter to the host port or a designated PD input that supplies up to 100 W; follow your laptop manufacturer's guidance for external charging while operating displays and peripherals.

Recommendations

For optimal video performance, use high-quality HDMI cables and confirm that both the laptop GPU and external monitors support the desired resolutions and refresh rates. When driving two displays via MST, check the host device’s capabilities and allocate resolution settings accordingly. Use a power adapter rated for sufficient wattage to ensure stable charging while under load.
