Dock/Replicador de puertos para portátil Lenovo 40AF0135EU con cable negro

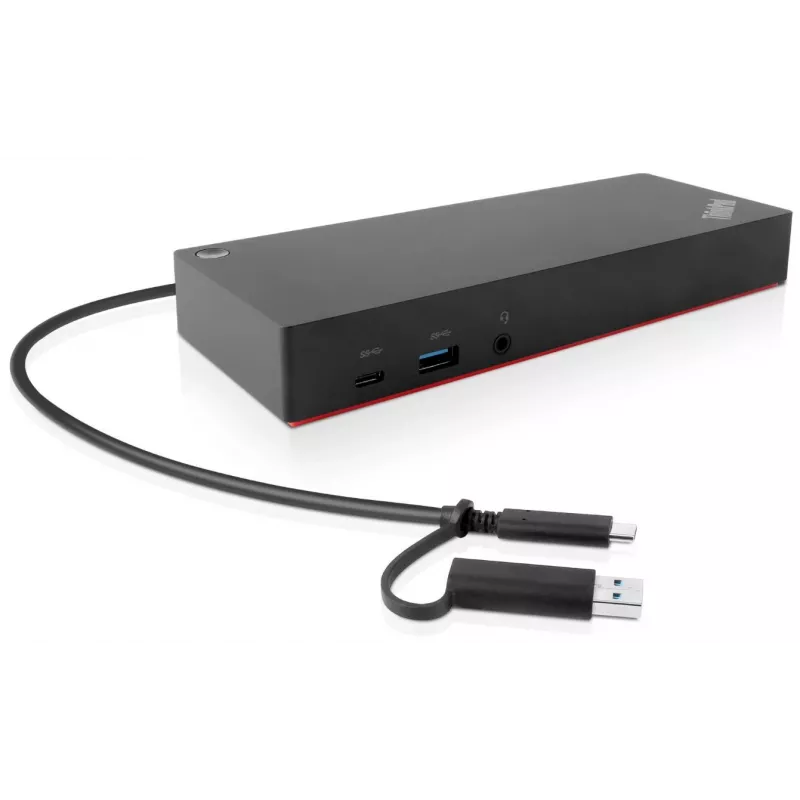

The Lenovo 40AF0135EU docking station (ThinkPad Hybrid USB-C with USB-A) expands the connectivity of most laptops, supporting wired Ethernet at 10/100/1000 Mbit/s and up to dual UHD 4K output (3840 x 2160). Supplied with a 135W AC power adapter and a USB-C to USB-A adaptor, this black dock provides port replication and rapid charging for compatible ThinkPad notebooks and other systems.

Advantages

This Lenovo dock offers enterprise-class manageability features such as PXE boot and MAC address pass-through while providing multiple high-speed USB 3.2 Gen 2 Type-A ports, dual HDMI for 4K displays and a reliable Gigabit Ethernet connection. Its bundled 135W power supply ensures stable power delivery and the included USB-C to USB-A adapter enables compatibility with older USB-A notebooks.

Suitable for

• Enterprise mixed-PC or hot-desk environments
• Office workstations requiring dual 4K monitors
• Users needing Gigabit Ethernet and multiple USB peripherals
• ThinkPad notebooks and laptops without native USB-C ports (using the included adaptor)

Key specifications

• Model: Lenovo 40AF0135EU (ThinkPad Hybrid USB-C with USB-A)
• Ethernet: 10/100/1000 Mbit/s (RJ-45)
• Video: Up to dual UHD 4K (3840 x 2160)
• USB: 3 × USB 3.2 Gen 2 (Type-A), 2 × USB 2.0 (Type-A)
• HDMI ports: 2
• Power supply: 135W AC with Type-C plug
• Connectivity technology: Wired
• Colour: Black
• Weight: 0.48 kg

How to use

Connect the dock to your laptop using the built-in USB-C cable or the supplied USB-C to USB-A adapter for older systems. Plug the 135W AC adapter into the dock and an AC outlet to provide power and charging to connected devices. Attach monitors via the HDMI ports, connect network via the RJ-45 port, and attach USB peripherals to the Type-A ports. For enterprise features such as PXE boot or MAC pass-through, configure those options in your network and system management tools according to your IT policies.

Recommendations

Use the included USB-C to USB-A adapter only when necessary; for full performance and power delivery, connect to a USB-C port that supports video and power output. Ensure your laptop supports the required display and power profiles for dual 4K output and rapid charging.
