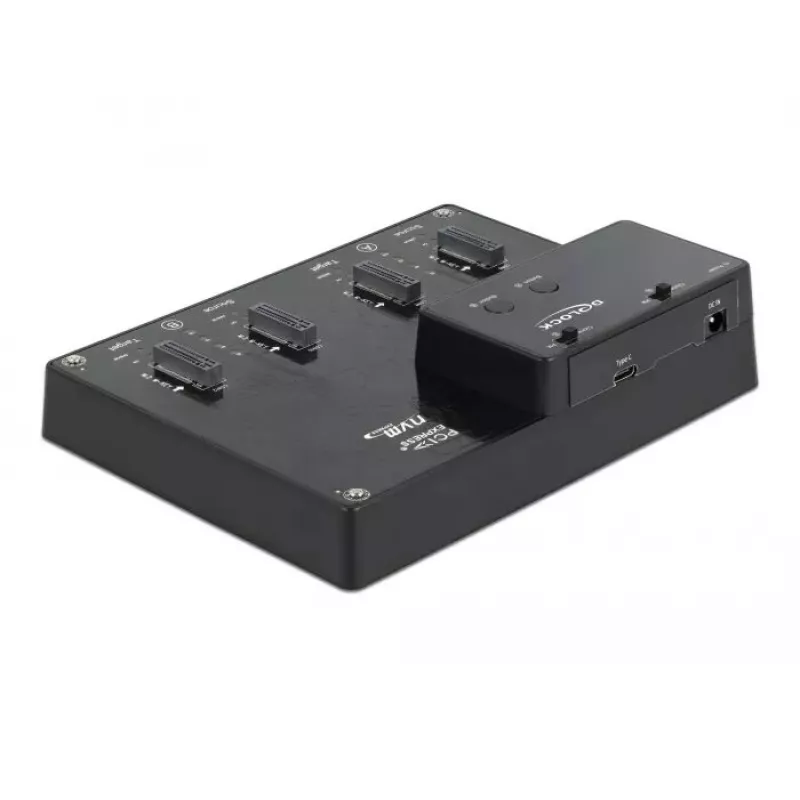

Docking station DeLOCK 64124 USB 3.2 Gen 2 Type-C negra SSD M.2

This M.2 docking station by Delock supports up to four M.2 PCIe NVMe SSDs and connects to a PC or laptop via USB 3.2 Gen 2 Type-C, offering transfer speeds up to 10 Gbit/s. The compact unit (164 x 125 x 37 mm) is supplied in black and includes a USB Type-C cable plus a USB-C to USB-A cable and an external power adapter.

Advantages

The docking station allows simultaneous use of four M.2 PCIe NVMe drives and provides a hardware clone function that can copy two drives at once without a connected PC. A USB-C connection ensures broad compatibility with modern computers, while the separate power supply guarantees stable operation of multiple SSDs.

Suitable for

• Data backup and migration of NVMe SSDs
• Cloning two M.2 PCIe NVMe drives simultaneously
• Expanding external storage for laptops and desktops
• Testing or accessing multiple M.2 SSDs for maintenance

Key specifications

• Brand: DELOCK, model: 64124
• Interface: USB 3.2 Gen 2 Type-C (up to 10 Gbit/s)
• Supported drives: up to 4× M.2 PCIe NVMe SSD
• Clone function: hardware M.2 PCIe SSD clone (2 x 2 simultaneous)
• Dimensions: 164 mm × 125 mm × 37 mm
• Colour: Black
• Included accessories: USB Type-C cable, USB-C to USB-A cable, external power adapter
• EAN: 4043619641246, MPN: 64124

How to use

Install M.2 PCIe NVMe SSDs into the available slots following the device's slot orientation. Connect the docking station to your computer using the included USB Type-C cable or the USB‑C to USB‑A cable depending on your host port. For cloning, power on the unit with the external power adapter and initiate the hardware clone function as described in the product manual; the station can clone two drives at once without a PC. For normal use, the drives will be accessible through the host operating system once connected and powered.

Recommendations

Use the included external power adapter when populating multiple SSDs to ensure stable performance. Always follow anti‑static precautions when inserting or removing M.2 SSDs and consult the user manual for correct slot placement and cloning procedure.
