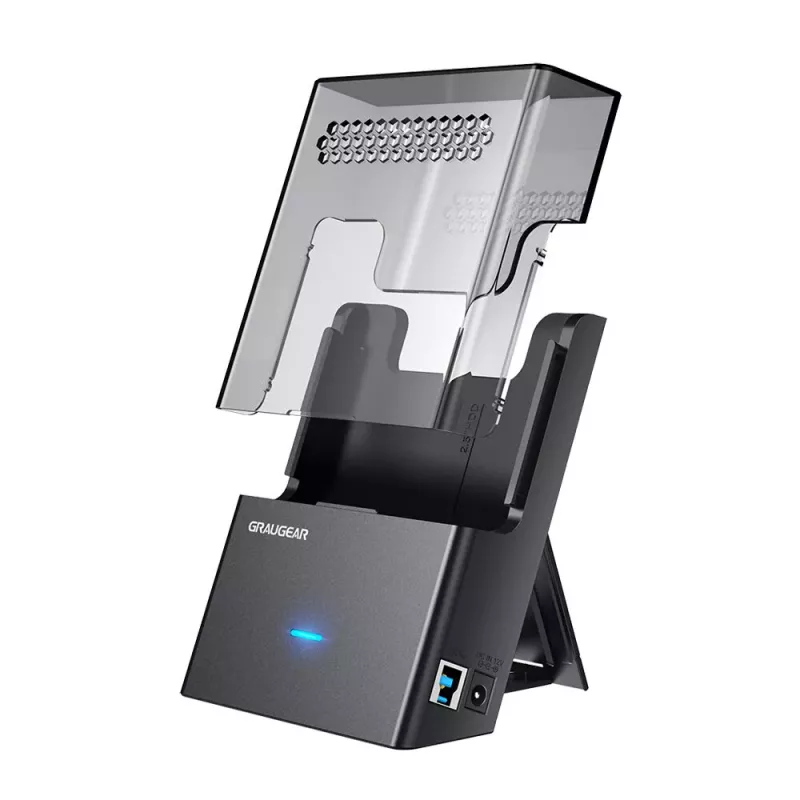

Docking station GrauGear G-3502-AC para HDD/SSD SATA de 2,5"/3,5", USB 3.2 Gen 1 Type-B, 6 Gbit/s, 12 V/1,5 A, negro/transparente

The GRAUGEAR G-3502-AC storage drive docking station allows tool-free insertion of 2.5" SSDs/HDDs and 3.5" HDDs for direct access to stored data. The dock supports Serial ATA III drives and connects to a host via USB 3.2 Gen 1 (USB 3.1 Gen 1) Type-B, offering a maximum SATA data transfer rate of 6 Gbit/s. The housing is made of plastic and comes in black with transparent elements.

Advantages

Tool-free docking simplifies swapping drives and speeds up data access. USB 3.2 Gen 1 Type-B connectivity provides high-bandwidth transfer to PCs and notebooks. A Type-C to Type-A adapter is included to increase compatibility with different host ports. The dock supplies the required 12 V/1.5 A power for 3.5" drives.

Suitable for

• Cloning or imaging single 2.5" or 3.5" drives
• Temporary access to data from internal SATA HDDs/SSDs
• Data recovery and file transfer between drives and computers
• Expanding workstation access to additional SATA storage without opening a PC

Key specifications

• Supported drive sizes: 2.5" and 3.5"
• Supported drive type and interface: HDD, SSD — SATA III (Serial ATA)
• Host interface: USB 3.2 Gen 1 (3.1 Gen 1) Type-B; includes Type-C to Type-A adapter
• Maximum data transfer rate (SATA): 6 Gbit/s
• Output power: 12 V, 1.5 A
• Material and colour: Plastic, black with transparent parts
• Dimensions (W × D × H): 115 mm × 35 mm × 190 mm

How to use

Place the docking station on a stable surface and connect it to the computer using the supplied USB cable and adapter according to the host port available. Insert a compatible 2.5" or 3.5" SATA drive into the dock until it seats firmly, then power the unit. The drive will appear to the operating system as an external storage device and can be accessed with standard file managers or disk utilities.

Recommendations

Use on a flat, vibration-free surface and ensure the drive is fully seated before powering on. For large transfers or drive cloning, connect to a USB 3.x port on the host to utilize the available bandwidth. Always safely eject the drive from the operating system before removing it from the dock.
