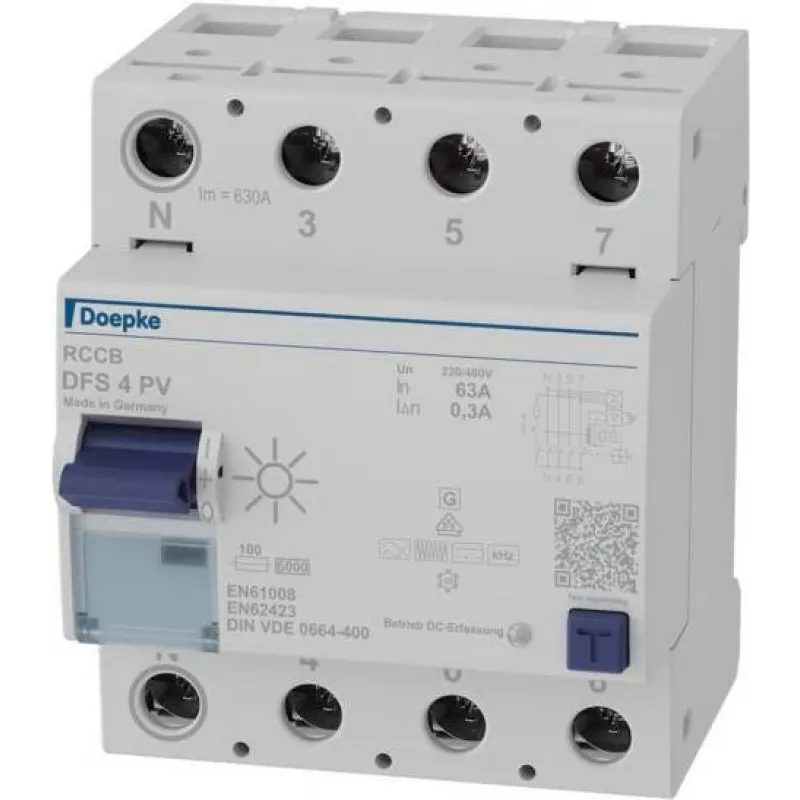

Doepke DFS4 063-4/0.30-PVFI Interruptor diferencial 4 polos 63 A 300 mA Tipo F 09146804

Residual current circuit breaker with 4 poles, 63 A rated current and 300 mA residual current, specifically designed for photovoltaic systems and circuits with frequency converters. The Type F (PVFI) RCCB detects sinusoidal AC, pulsating DC and mixed frequency residual currents up to 1 kHz, ensuring reliable protection in modern electrical installations.

Advantages

Type F tripping characteristic provides comprehensive protection for PV inverters and electronic loads. High surge current withstand capability of 3 kA prevents nuisance tripping. Compact 4-module width saves space on DIN rail. Wide terminal capacity from 1.5 to 50 mm² solid conductors simplifies installation.

Suitable for

• Photovoltaic (PV) systems with transformerless inverters
• Frequency converter circuits
• Industrial control panels with electronic operating equipment
• Three-phase distribution boards requiring residual current protection

Key specifications

• Rated current: 63 A
• Rated residual current: 300 mA
• Number of poles: 4
• Rated voltage: 230/400 V AC
• Rated frequency: 50 Hz
• Rated short-circuit current: 10 kA
• Surge current withstand: 3 kA
• Mounting: DIN rail 35 mm
• Module width: 4 TE
• Terminal capacity: 1.5 - 50 mm² solid, 1.5 - 35 mm² stranded
• Degree of protection: IP20 terminals, IP40 housing
• Operating temperature: -25 to +40 °C

Recommendations

For optimal protection, pair with a suitable backup fuse to achieve the rated short-circuit current of 10 kA. Ensure proper ventilation in enclosures to maintain operating temperature range.
