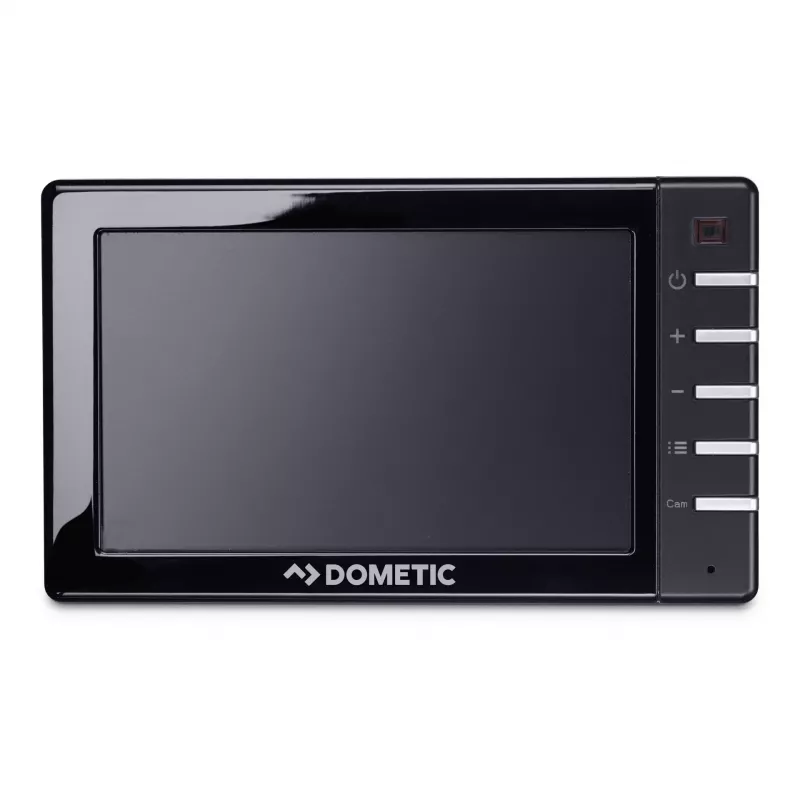

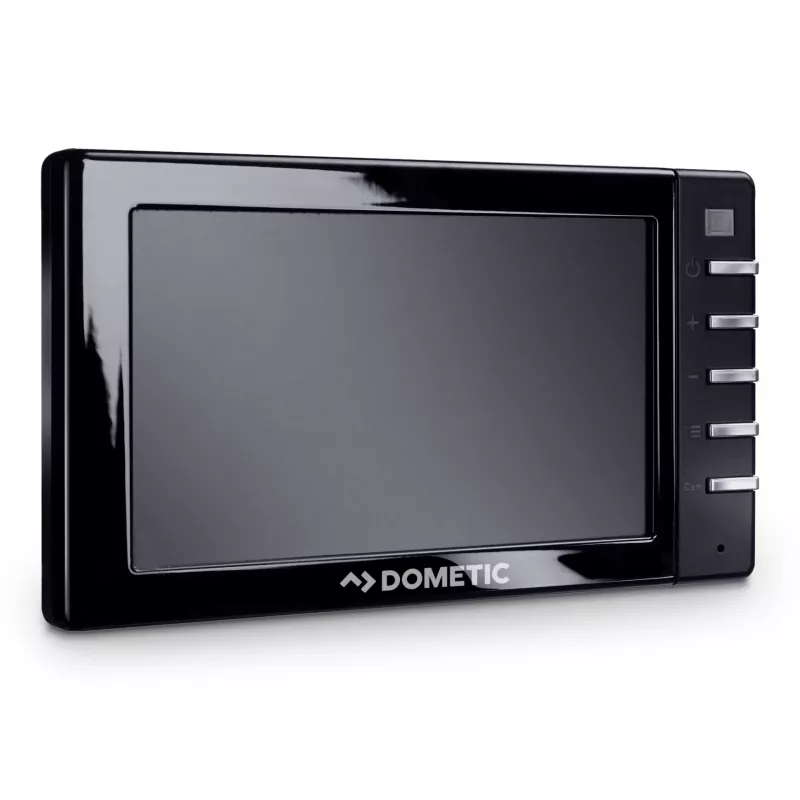

Dometic PerfectView M55L monitor AHD con 3 entradas de cámara, 5" TFT LCD, 800x480, montaje en superficie 9600012882

The Dometic PerfectView M55L AHD Monitor features a 5-inch TFT LCD display with 800 x 480 pixel resolution, delivering sharp images from up to three connected cameras. Its AHD/CVBS compatibility ensures clear video feeds for safe maneuvering.

Overview

Designed for commercial vehicles and motorhomes, this surface-mount monitor supports three camera inputs with automatic switching when reverse gear is engaged. The LED backlight provides 500 cd/m² brightness for visibility in varying light conditions.

What stands out

• 5-inch high-resolution display
• Three camera inputs (AHD/CVBS)
• Automatic switching on reverse
• Day/night sensor for brightness adjustment
• Selectable image mirroring per camera

Technical details

• Display: 5" TFT LCD, 800 x 480 pixels, 16:9 aspect ratio
• Brightness: 500 cd/m²
• Video inputs: 3x 6-pin mini-DIN (AHD/CVBS compatible)
• Power: 12V / 24V DC, < 15 W consumption
• Operating temperature: -20°C to +70°C
• Mounting: Surface mount (Aufbau)
• Video standard: PAL/NTSC auto-switching
• Housing: ABS plastic

Our verdict

A robust, feature-rich monitor for multi-camera setups, offering clear visuals and automatic switching for enhanced safety.
